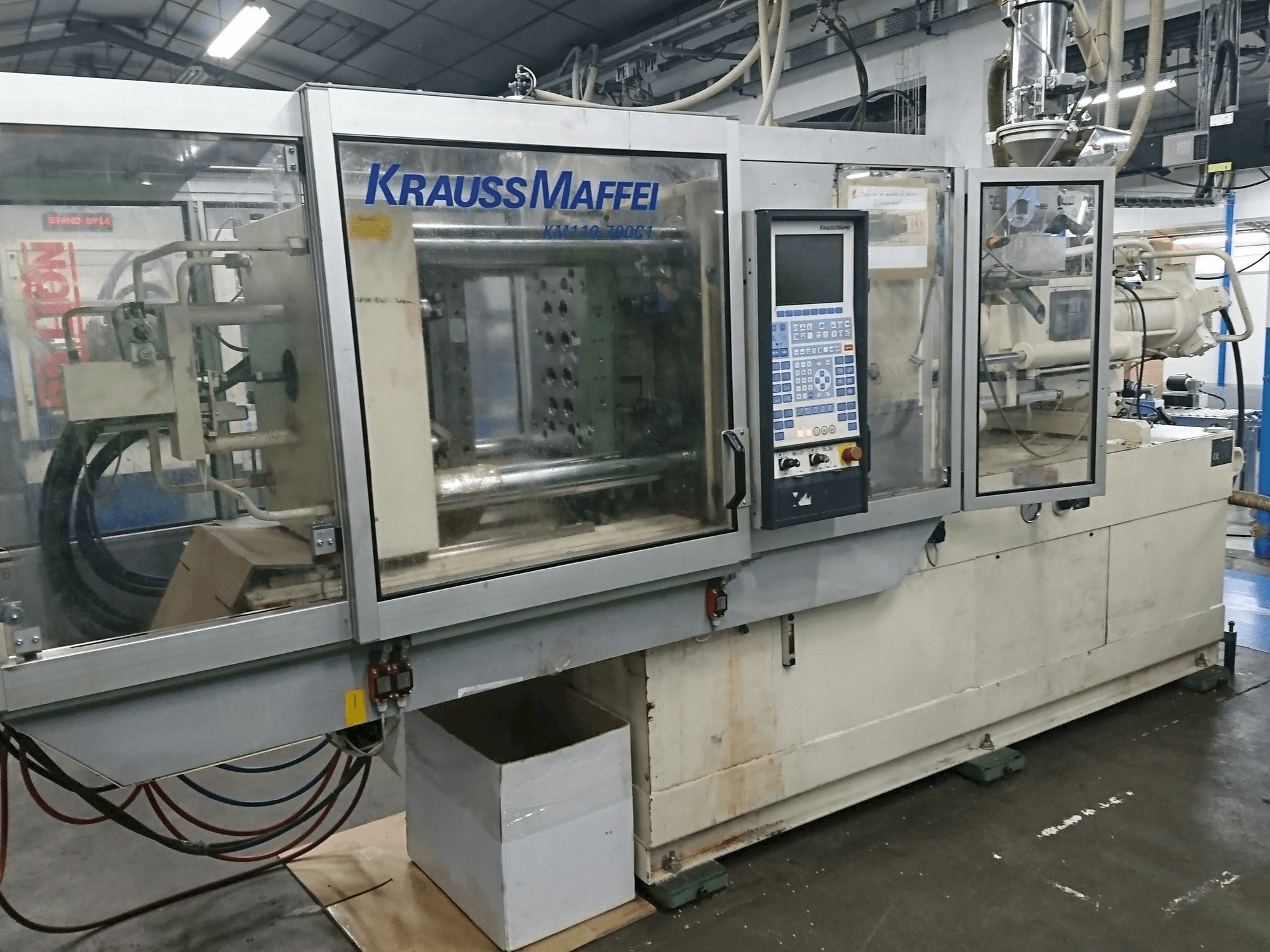

Front view of Krauss Maffei 110 - 700 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 110 - 700 C1

Krauss Maffei - 110 - 700 C1FR-INJ-KRA-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 110 - 700 C1 Injection Moulding Machine

This Krauss Maffei 110 - 700 C1 Injection Moulding Machine was built in the year 2000 in Germany. This machine counts with 37200 production hours. It incorporates a clamping force of 1100 kN.

Overview

brand: Krauss Maffei
year: 2000
MODEL: 110 - 700 C1
production hours: 37200
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 110 - 700 C1

General Data

Measurements width: 5000 mm
Measurements depth: 1550 mm
Measurements height: 2200 mm
Machine weight: 6500 kg

Injection Unit

Screw diameter: 45 mm
Shot weight: 278 g
Injection pressure: 2000 bar
Nozzle pressure: 84 kN

Clamping unit

Clamping force: 1100 kN
Opening stroke: 600 mm
Max open daylight: 900 mm
Distance between bars: 470 mm x 470 mm
Mould height min: 300 mm
Size of mold platens: 745 mm x 770 mm
Ejector stroke: 150 mm
Ejector force for / back: 22/10 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
