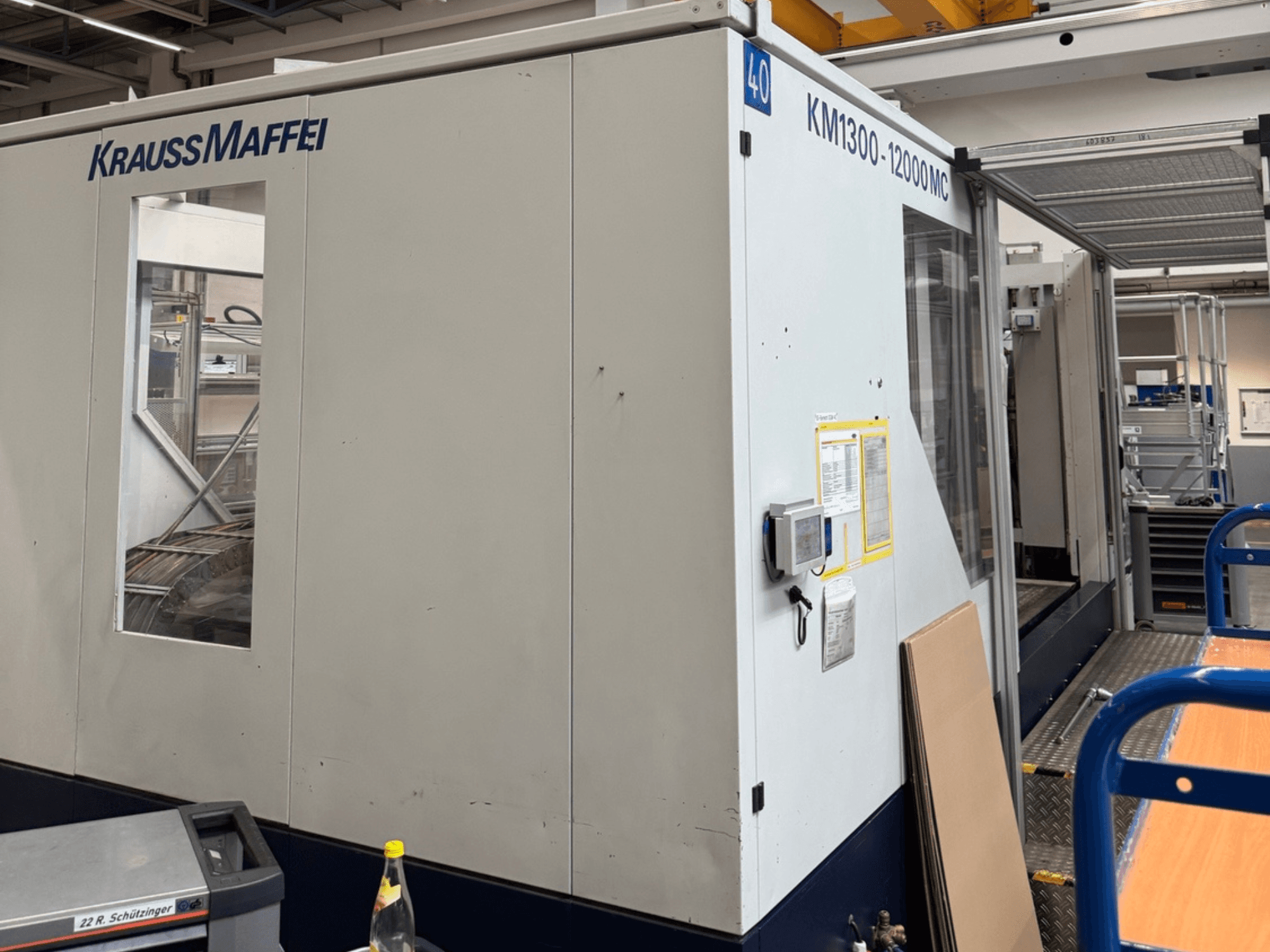

Hydraulic injection moulding machine manufactured in 2002. This Krauss Maffei 1300-12000 MC features a screw diameter of 105 mm and a maximum processing temperature of 450°C. It includes a hydraulic mechanical 2 platen clamping system and a robust motor current of 261 A. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei 1300-12000 MC machine we have for sale. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2002
- MODEL: 1300-12000 MC
- production hours: 57752
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei 1300-12000 MC
Dimensions
- Machine Weight: 83000 kg
Technical Specification
- Clamping Force: 13000 kN
- Screw Diameter: 105 mm
Additional Information
International size designation: 12000 MC / 1300
Operating hours: 57,752 h
Electrical
Operating voltage: 400 V, 3-phase, 50 Hz (400/230 V European standard)
Motor current: 261 A
Heating current: 239 A
Motor total current: 245 A
Motor fuse: 315 A
Heating fuse: 250 A
Main switch: 6-pole, heating and power separated
Sockets: Service socket Schuko 10 A; 3x Schuko 16 A; 2x CEE 16 A; 2x CEE 32 A
Oil cooled pump motor: IP54
Cabinet cooling fan
Control and HMI
MC4 32-bit microprocessor control
TFT color display
3.5 inch floppy disk drive
Clamping unit
Hydraulic mechanical 2-platen clamping system
4 pressure cushions integrated in moving platen
Hydraulic central ejector
Hydraulic core pull control
Hydraulic safety door on operator side
Minimum mould height: 700 mm
Maximum mould height: 1400 mm
Maximum opening stroke: 2250 mm
Maximum daylight opening: 2950 mm
Injection and plasticizing
PV controlled injection unit
Thermoplastic plasticizing unit, wear-resistant design
Non-return valve installed
Open nozzle design
Nozzle radius: 15 mm; nozzle bore diameter: 4 mm
Hydraulic screw drive with constant motor
Parallel plasticizing possible
Plasticizing unit: SP12000
Maximum processing temperature: 450°C
Injection embossing control adjustable on screen
Injection stroke control
Holding pressure control
Injection speed control
Hydraulics, lubrication, cooling
Regenerative pump control system
Internal oil filtration system
Oil monitoring system
Oil cooler for water supply: max 31°C
Cooling water pressure: 4–6 bar
Temperature control
8 temperature control circuits for hot runner
Adaptive temperature controllers
Maximum temperature controller power: 2 kW
230 V temperature controller supply
Monitoring and software
Quality monitoring package
Process monitoring system
Tolerance band monitoring
Cycle analysis display
Cycle data storage up to 20,000 cycles
Event log protocol
Alarm history
Graphical process curves
Trend graphics for 12 parameters
Interfaces and connectivity
RS232 interface
Ethernet interface TCP/IP
Euromap 12 interface
Euromap 63 / SPI software support
External temperature unit interface 20 mA
Central computer interface
BDE interface with 5 contacts
Potential-free contact for dosing unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
