Krauss Maffei - 150-1000 C1DE-INJ-KRA-2000-00010
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Used Injection moulding machine Krauss Maffei 150-700 C1 - 2000 - for sale | gindumac.com

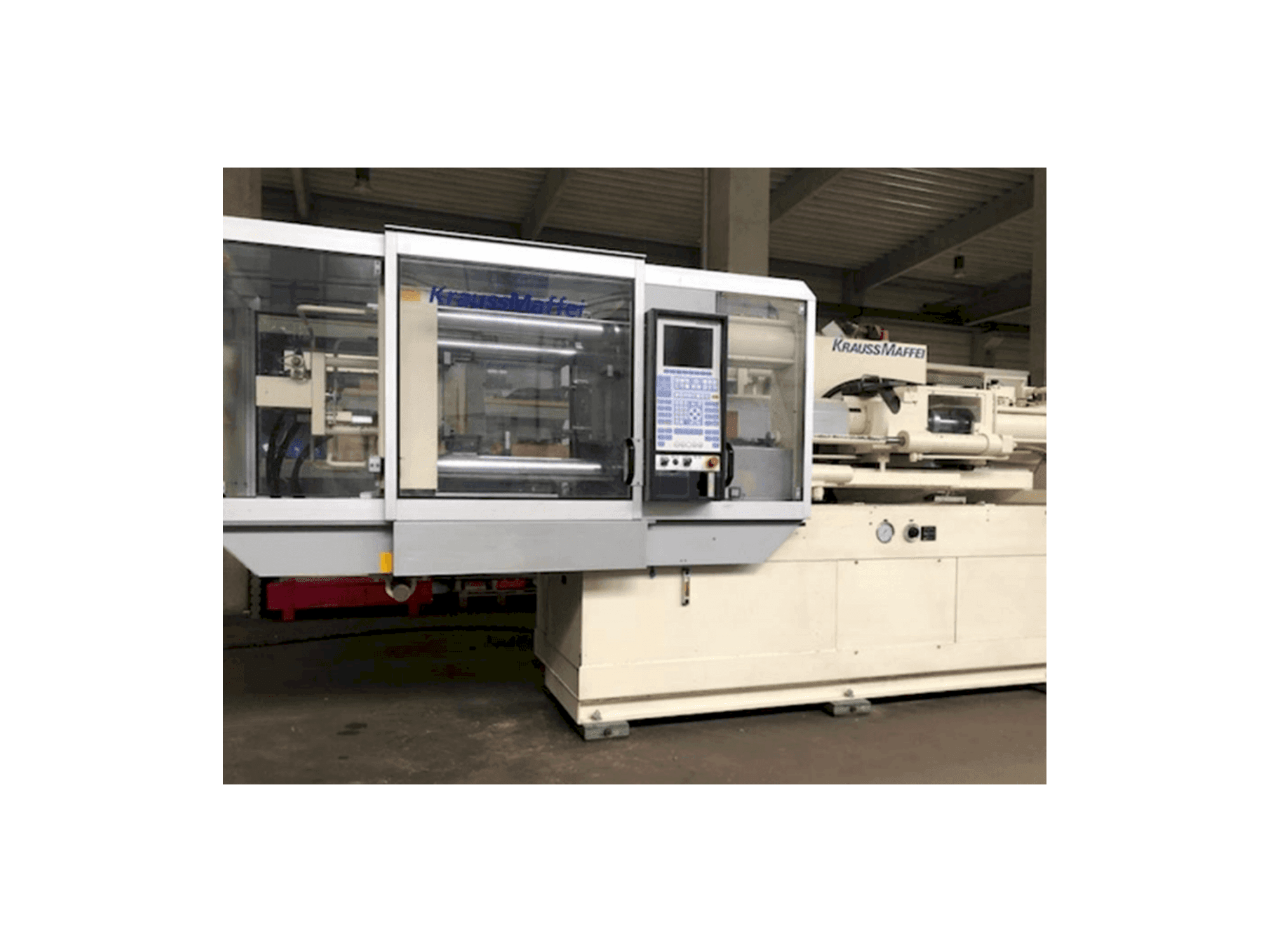

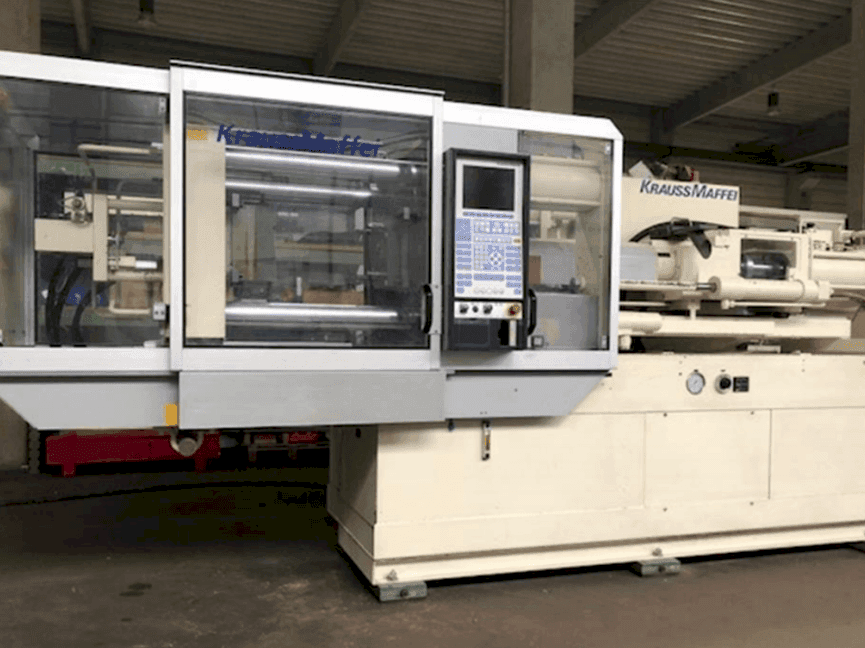

This KRAUSS MAFFEI 150-700 C1 Injection moulding machine was manufactured in 2000 in Germany. This machine offers a clamping force of 1500 kN and features a mold mounting platen sized at 780 mm x 790 mm. With a tool opening stroke of 600 mm and an opening width of 900 mm. Screw diameter options include 45 mm, 50 mm, and 55 mm, while injection pressures range from 1564 bar to 2336 bar. The screw speed reaches up to 356 rpm, with a dry running speed of 1700 l/min. It requires approximately 345 liters of oil filling. Contact us anytime for further information.
Overview
- brand: Krauss Maffei
- year: 2000
- MODEL: 150-1000 C1
- production hours: 47059
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Krauss Maffei 150-1000 C1
General Data
- Measurements width: 1510 MM
- Measurements depth: 4660 MM
- Measurements height: 2190 MM
- Machine weight: 6300 KG
Main drive
- Stroke: 150mm
Injection Unit
- Screw diameter: 50mm
- Injection pressure: 2336/1892/1564 bar
Clamping unit
- Clamping force: 1500 KN
- Opening stroke: 600
- Size of mold platens: 780 x 790
Additional Equipment
- - hydraulic ejector
- - injection unit SP1000
- - L/D ratio 22mm
- - injection pressure 2304 bar
- - stroke/D ratio 4.4 bar / stroke volume 432cm³
- - Shot weight in PS 393g
- - screw drive power 31 kW
- - Nozzlealage force 110 kN
Additional Information
- Technical Machine Benefits:
- - Opening width: 900mm / size of the mould mounting platen 780 x 790mm
- - Dry running speed: 1700l/min / mould opening stroke 600mm / mould mounting height 300mm
- - Oil filling: approx. 345l
- - Screw speed standard/ze 255/356
- - Screw speed nom. /max. 256/410
- - Spray pressure: 2304
- - Clamping force 1500 kn
- - Opening width 900mm
- - Force forwards/backwards 22/10 kn
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
