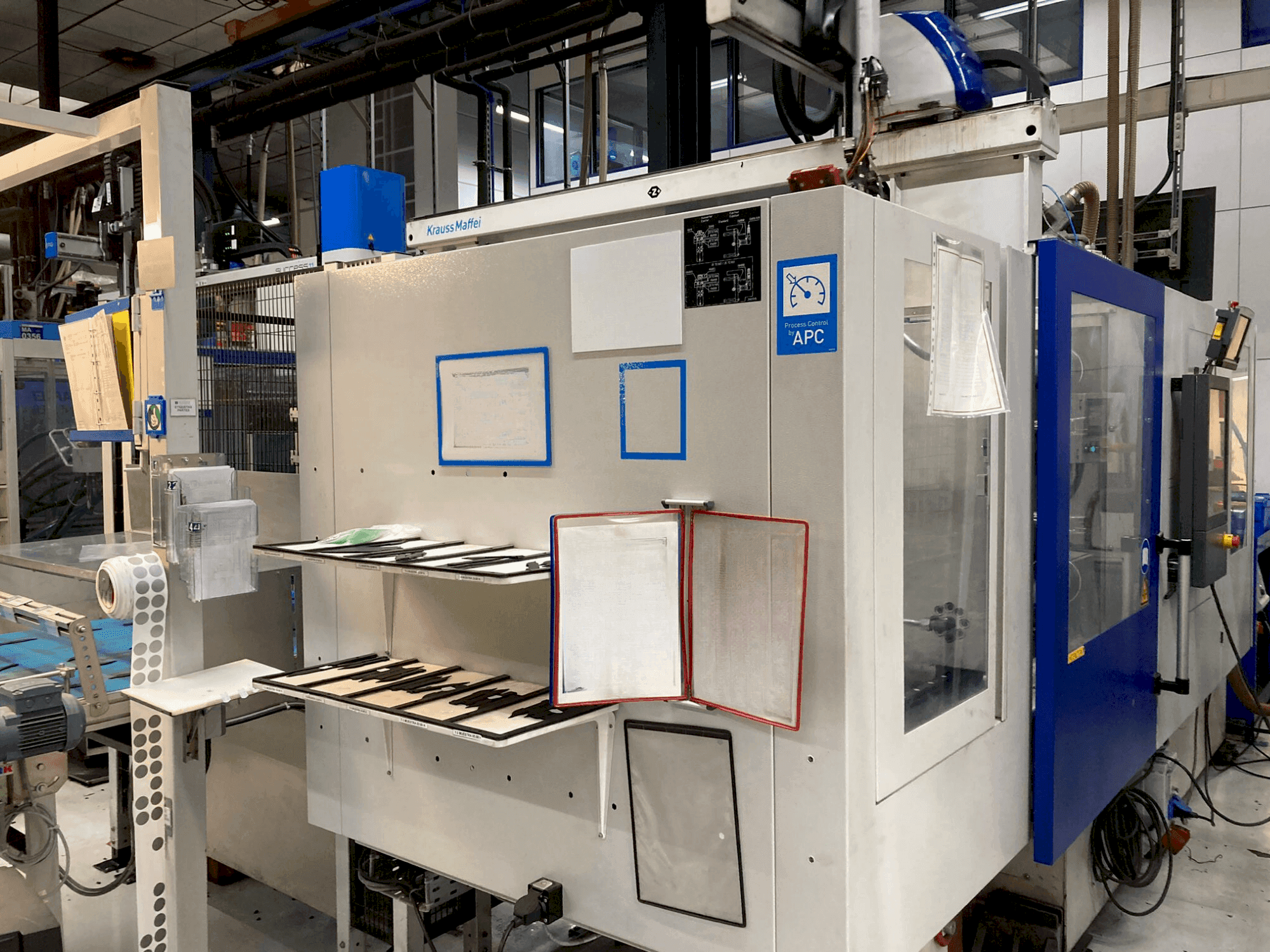

Front view of Krauss Maffei 160-380 CX  machine

Krauss Maffei - 160-380 CXES-INJ-KRA-2016-00001

48,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Krauss-Maffei 160-380 CX Injection moulding machine was manufactured in the year 2016 in Germany. It is equipped with a clamping force of 1600 kN, a SP 380 injection unit with a screw diameter of 35 mm. Shot weight for PS is at 140g.

Overview

  • brand: Krauss Maffei
  • year: 2016
  • MODEL: 160-380 CX
  • application type: Injection Moulding
  • Location: Spain
  • machine type: Injection Moulding Machines
  • availability: Immediately
  • control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-380 CX

General Data

  • Measurements width: 4600 MM
  • Measurements depth: 1600 MM
  • Measurements height: 2000 MM
  • Machine weight: 8200 kg

Control Unit

  • Brand: KRAUSS MAFFEI
  • Model: MC6

Injection Unit

  • Screw diameter: 35 mm
  • Shot weight: 140g (PS)
  • Stroke volume: 154 cm3 CM³
  • Injection pressure: 2429 bar
  • Heating capacity: 10.9 kW
  • Nozzle pressure: 50 kN

Clamping unit

  • Clamping force: 1600 kN
  • Opening stroke: 950
  • Max open daylight: 520 x 520 mm
  • Mould height min: 300 mm
  • Mould height max: 650 mm
  • Size of mold platens: 820 x 845 mm
  • Ejector stroke: 150 mm
  • Ejector force for / back: 22.6/9.8 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
