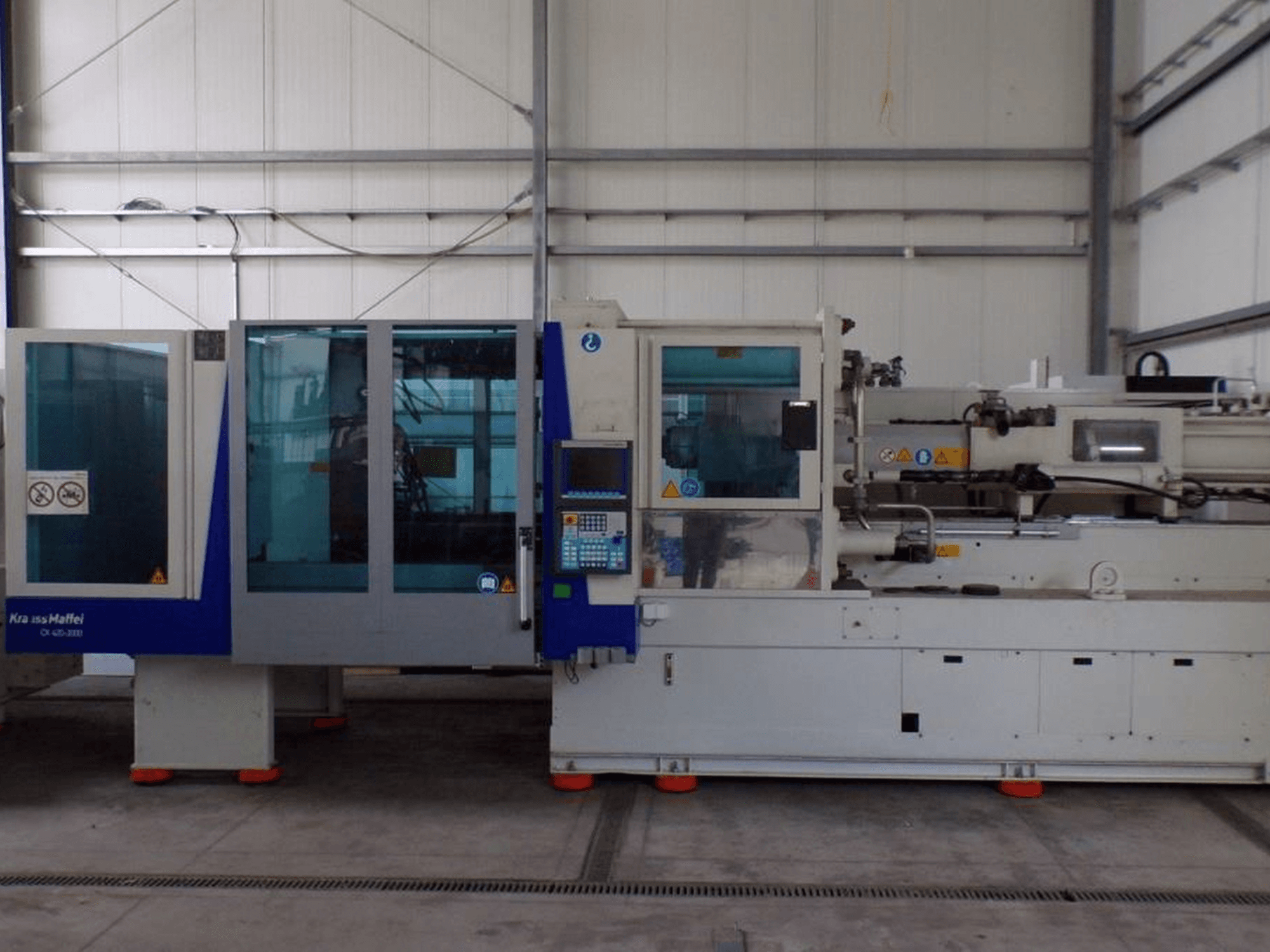

KraussMaffei injection molding machine, side view, features control panel and safety indicators, visible in a factory setting.
KraussMaffei injection molding machine, side view, features control panel and safety indicators, visible in a factory setting.

Krauss Maffei - 420-3000 CXPL-INJ-KRA-2011-00003

70,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Krauss Maffei 420-3000 CX was manufactured in 2011. A robust hydraulic injection molding machine from Germany, it features a clamping force of 4200 kN and a screw diameter of 80 mm. It supports a shot weight for PS of 1464 g and an injection rate of 478 cm³/s. Ideal for high-volume production with its 1200 cycles/h dry cycle rate. Contact us for more information about this machine.

Overview

  • brand: Krauss Maffei
  • year: 2011
  • MODEL: 420-3000 CX
  • application type: Injection Moulding
  • Location: Poland
  • machine type: Hydraulic Injection Moulding Machine
  • control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 420-3000 CX

Control Unit

  • Control Brand: KRAUSS MAFFEI
  • Control Model: MC5

Dimensions

  • Machine Height: 2500 mm
  • Machine Length: 7300 mm
  • Machine Weight: 25500 kg

Technical Specification

  • Clamping Force: 4200 kN
  • Max. Shot Weight: 1464 g
  • Screw Diameter: 80 mm

Additional Information

  • Electrical data:

    • Power supply: 400 V / 3N~ / 50 Hz

    • Installed heating power: 36 kW

    • Rated pump motor power: 75 kW

    • Number of barrel heating zones: 7

  • Performance and control:

    • Dry cycles (Euromap 6): 1,200 cycles/h

    • Control system/version: MC5 3.3

  • Machine color: grey / white / blue

  • Clamping unit:

    • Mold opening force: 249.6 kN

    • Distance between tie bars: 800 × 800 mm

    • Moving platen force (open/close): 124.7 / 102.4 kN

    • Platen dimensions: 1270 × 1200 mm

    • Mold opening stroke: 1020 mm

    • Minimum mold height: 380 mm

    • Ejector stroke: 250 mm

    • Platen opening stroke: 1400 mm

  • Injection unit:

    • Nozzle tip radius: 15 mm

    • Nozzle orifice diameter: 6 mm

    • Injection pressure: 1856 bar

    • Injection volume: 1608 cm³

    • Injection rate: 478 cm³/s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
