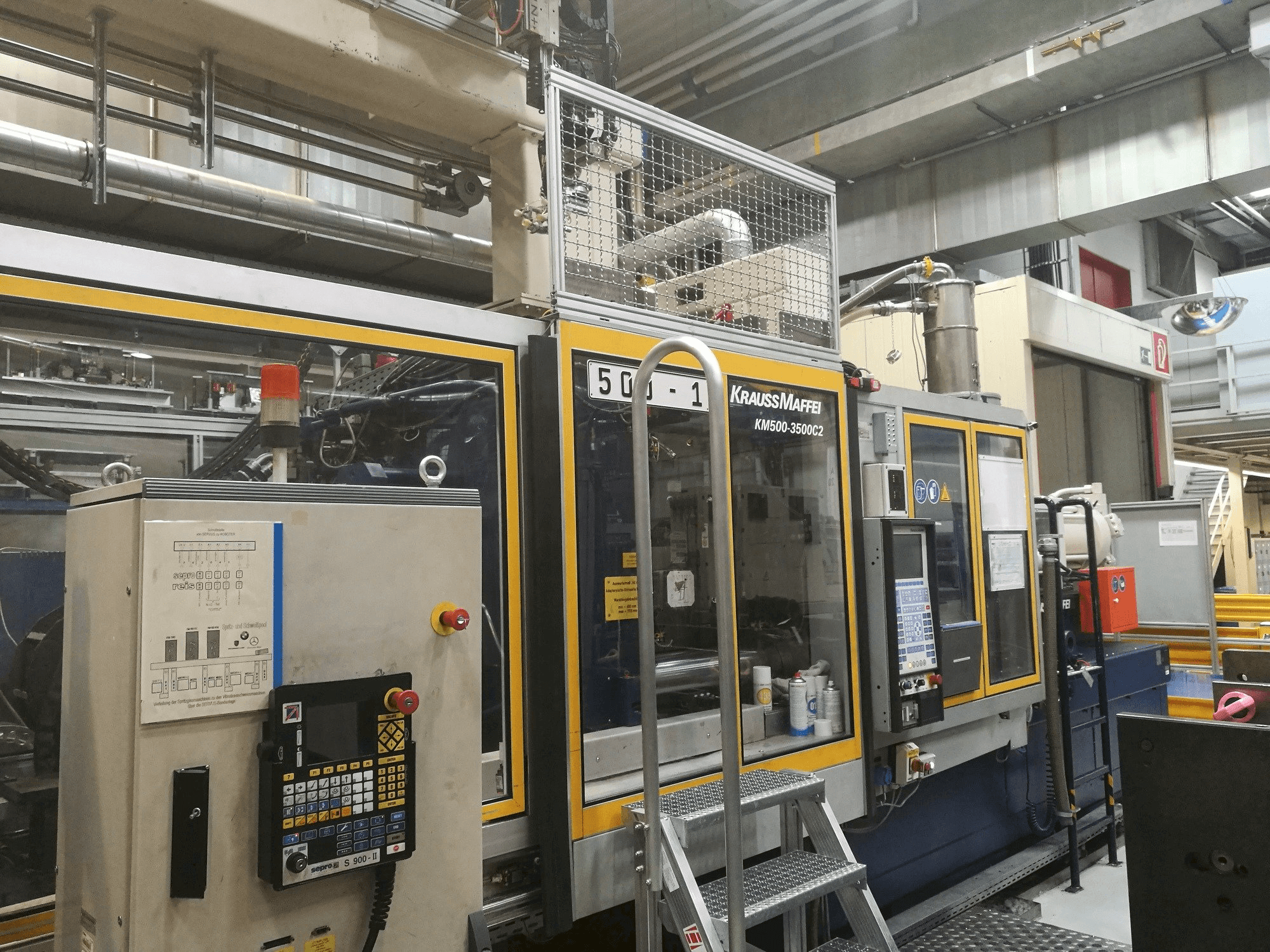

Front view of Krauss Maffei 500-3500 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 500-3500 C2

Photo Gallery

Krauss Maffei - 500-3500 C2DE-INJ-KRA-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 500-3500 C2 Injection Moulding Machine

This Krauss Maffei 500-3500 C2 Injection Moulding Machine was made in the year 2000 in Germany. It has been operative for 58045 hours. It is operated with a Krauss Maffei MC 4 control unit. This machine works with a clamping force of 5000 kN and an injection pressure of 2205 bar.

Overview

brand: Krauss Maffei
year: 2000
MODEL: 500-3500 C2
production hours: 58045
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 500-3500 C2

General Data

Measurements width: 7648 mm
Measurements depth: 2350 mm
Measurements height: 2430 mm
Machine weight: 25000 kg

Control Unit

Model: MC 4
CNC main language: German
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 80 mm
Stroke volume: 1543 CM³
Injection pressure: 2205 bar
Heating capacity: 18 kW

Clamping unit

Clamping force: 5000 kN
Opening stroke: 960 mm
Max open daylight: 1650 mm
Distance between bars: 900 mm
Mould height min: 480 mm
Mould height max: 1170 mm
Size of mold platens: 1270x1200 mm

Media

Main electronic connection: 420 v
Internal cooling: Yes

Additional Equipment

- Stäubli Clamping System
- Hydr. Kaskaden-Control Riamus Software
- 8x Single MTS 4.1 18KW / Servus Band

Additional Information

Machine history

Material type: Plastic
End product: Automotive engine parts
Industries: Automotive

Machine Benefits

Qualitative Machine Benefits:
- - Perfect conditions and maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
