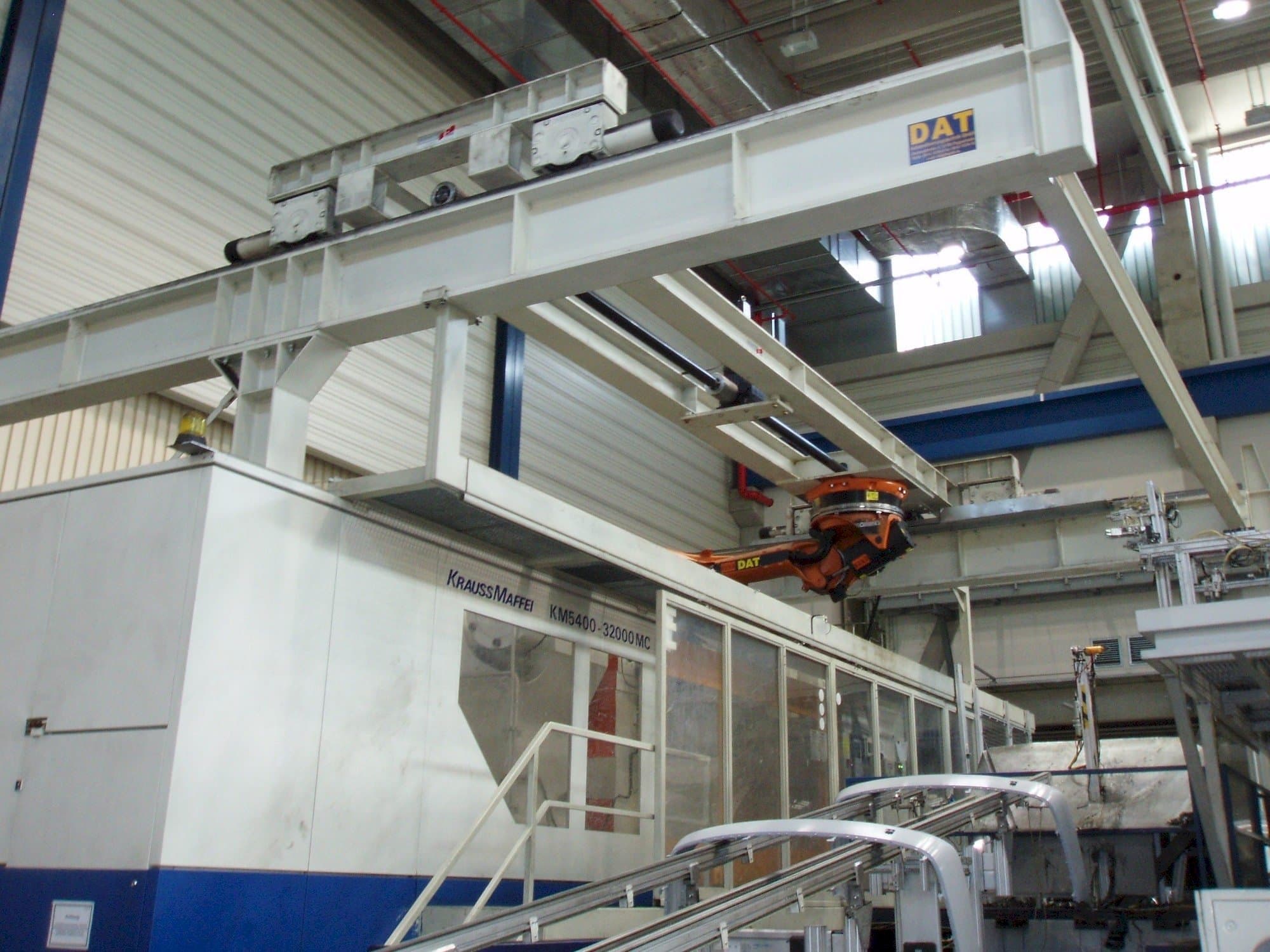

Front view of Krauss Maffei 5400-32000 MC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 5400-32000 MC

Photo Gallery

Krauss Maffei - 5400-32000 MCDE-INJ-KRA-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 5400-32000 MC Injection Moulding Machine

This Krauss Maffei 5400-32000 MC Injection Moulding Machine was made in the year 2001 in Germany. It is equipped with a Krauss Maffei MC4 control unit. It counts with clamping force of 54000 kN.

Overview

brand: Krauss Maffei
year: 2001
MODEL: 5400-32000 MC
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 5400-32000 MC

General Data

Measurements width: 2200 mm
Measurements depth: 6000 mm
Measurements height: 4000 mm
Machine weight: 335658 kg

Control Unit

Model: MC4
Brand: KRAUSS MAFFEI

Table

Table load: 150000 kg

Injection Unit

Screw diameter: ø 175 mm
Shot weight: 15869 g (PS)
Stroke volume: 17438 CM³
Injection pressure: 1843 bar
Screw speed: 183 g/s
Heating capacity: 170 + 216 kW
Adjustable heating zones: 12
Nozzle pressure: 241 kN

Clamping unit

Clamping force: 54000 kN
Opening stroke: 3400 mm
Max open daylight: 4800 mm
Distance between bars: 2500x2200 mm
Mould height min: 1400 mm
Mould height max: 2300 mm
Size of mold platens: 3760x 3220 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Connector water: rmi 209 ds/as x 3
- - Number of hotrunner heating zones: 72
- - Inner width between tie bars h-v: 2500m-2200mmm,
- - Minium mold dimension: ø 1540 mm
- - Center ring fs/ms: ø 350 mm
- - Nozzle thread: m56 x 3
- - Shutt-off nozzle: hydraulic
- - Number of kascades: 12 fach
- - Number of corepullers fixed side: 2
- - Number of corepullers moving side: 3/1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
