- Krauss Maffei 650 – 2700 C1 Injection moulding machine

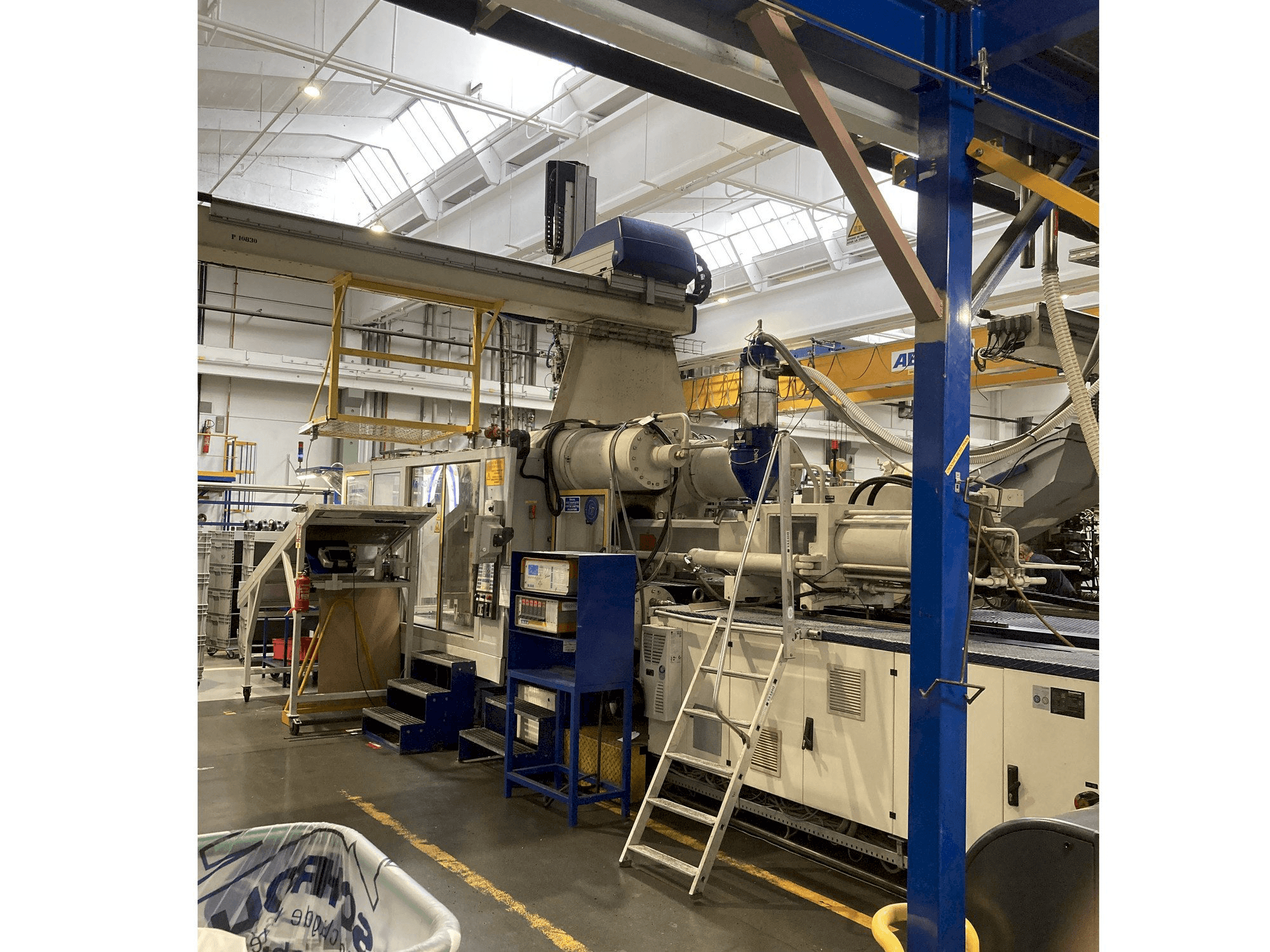

This Krauss Maffei 650 – 2700 C1 Injection moulding machine was manufactured in the year 2001 and has 98203 production hours. The machine has a clamping force of 6500 kN and includes a robot.
Overview
- brand: Krauss Maffei
- year: 2001
- MODEL: 650 – 2700 C1
- production hours: 98203
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Krauss Maffei 650 – 2700 C1
General Data
- Machine weight: 34500 kg
Injection Unit
- Screw diameter: 80 mm
- Shot weight: 1049 g
- Injection pressure: 1829 bar
Clamping unit
- Clamping force: 6500 kN
Additional Equipment
- - Includes a robot
Additional Information
- Technical Machine Benefits:
- - Distance between tie-bars h/v : 1000 mm
- - Tie-bar diameter: 210 mm
- - Platten size (h x v): 1525 x 1700 mm
- - Mould height: min 600 mm
- - Daylight between platen: 600 mm
- - Clamping speed: 730 (mm/s)
- - Opening stroke: 1750 mm
- - Ejector force: 226 kn
- - Ejector stroke : 120 mm
- - Injection rate: 603 cm3/s
- Qualitative Machine Benefits:
- - Nozzle force: 1730 kn
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
