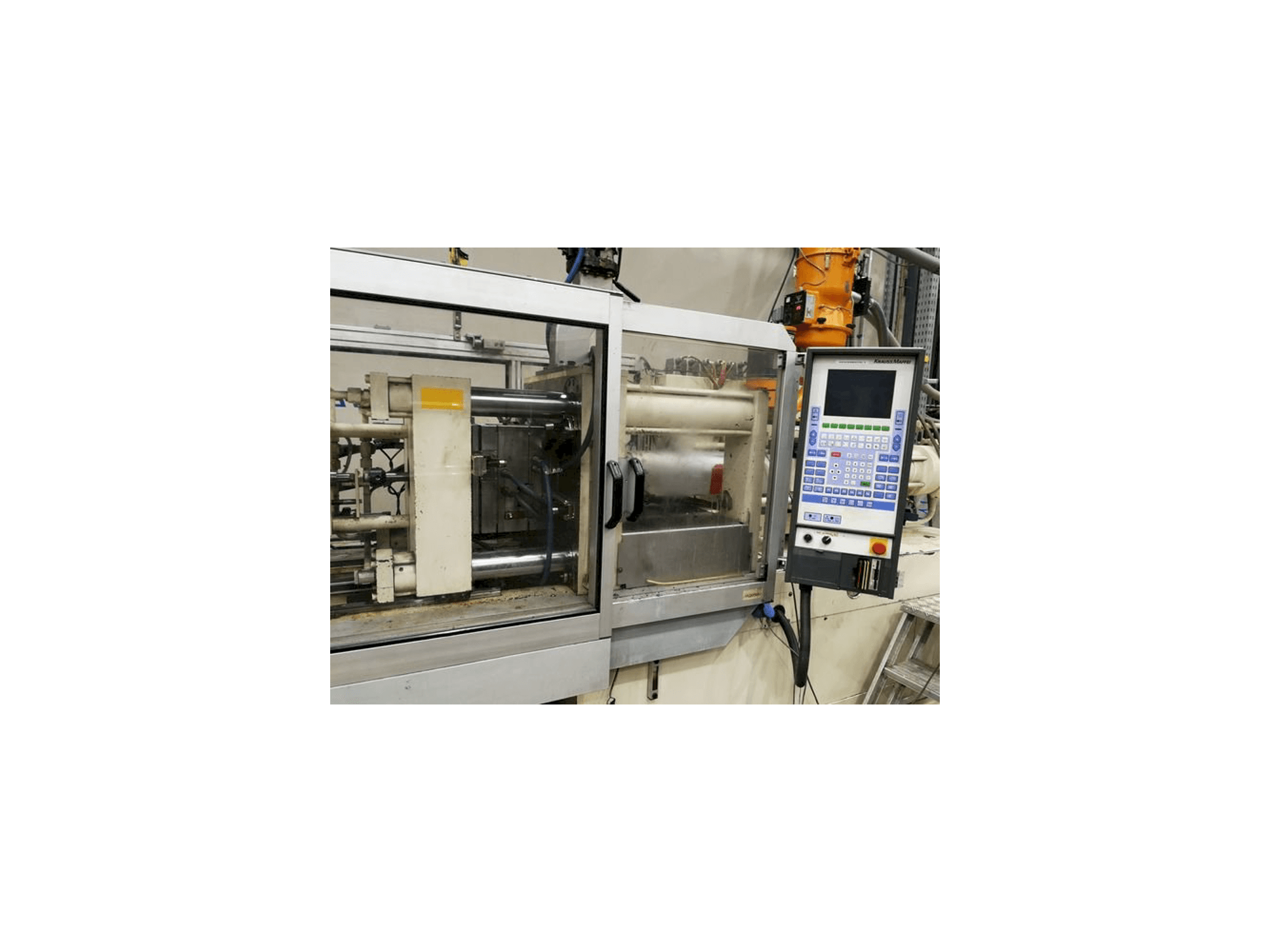

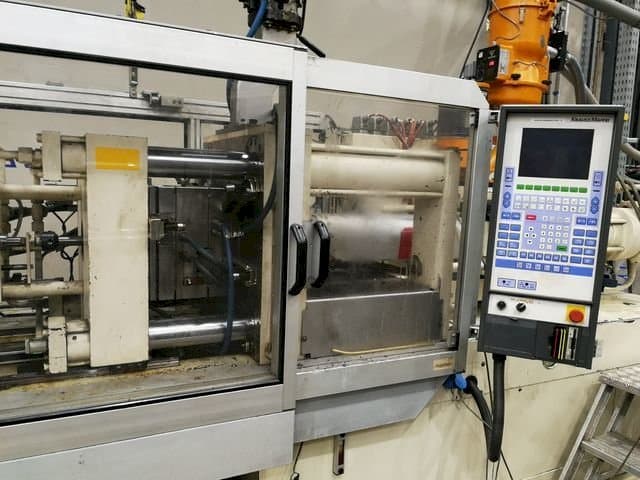

Front view of Krauss Maffei 80/340 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 80/340 C1

Photo Gallery

Krauss Maffei - 80/340 C1DE-INJ-KRA-1995-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 80/340 C1 Injection Moulding Machine

This Krauss Maffei 80/340 C1 Injection Moulding Machine was built in Germany in 1995. It is equipped with a Krauss Maffei MC 3 Control unit. This machine can work with a clamping force of 800 kN.

Overview

brand: Krauss Maffei
year: 1995
MODEL: 80/340 C1
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 80/340 C1

General Data

Measurements width: 4000 mm
Measurements depth: 1400 mm
Measurements height: 1900 mm
Machine weight: 3000 kg

Control Unit

Model: MC 3
CNC main language: German
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 35 mm
Stroke volume: 156 CM³
Injection pressure: 1837 bar

Clamping unit

Clamping force: 800 kN
Opening stroke: 500 mm
Distance between bars: 405 x 405 mm
Mould height max: 250 mm

Additional Equipment

- 1 x core pull
- 1 x air valve

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
