Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Krauss Maffei - ClassiX CX 160-380RO-INJ-KRA-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Krauss Maffei ClassiX CX 160-380 Injection Moulding Machine

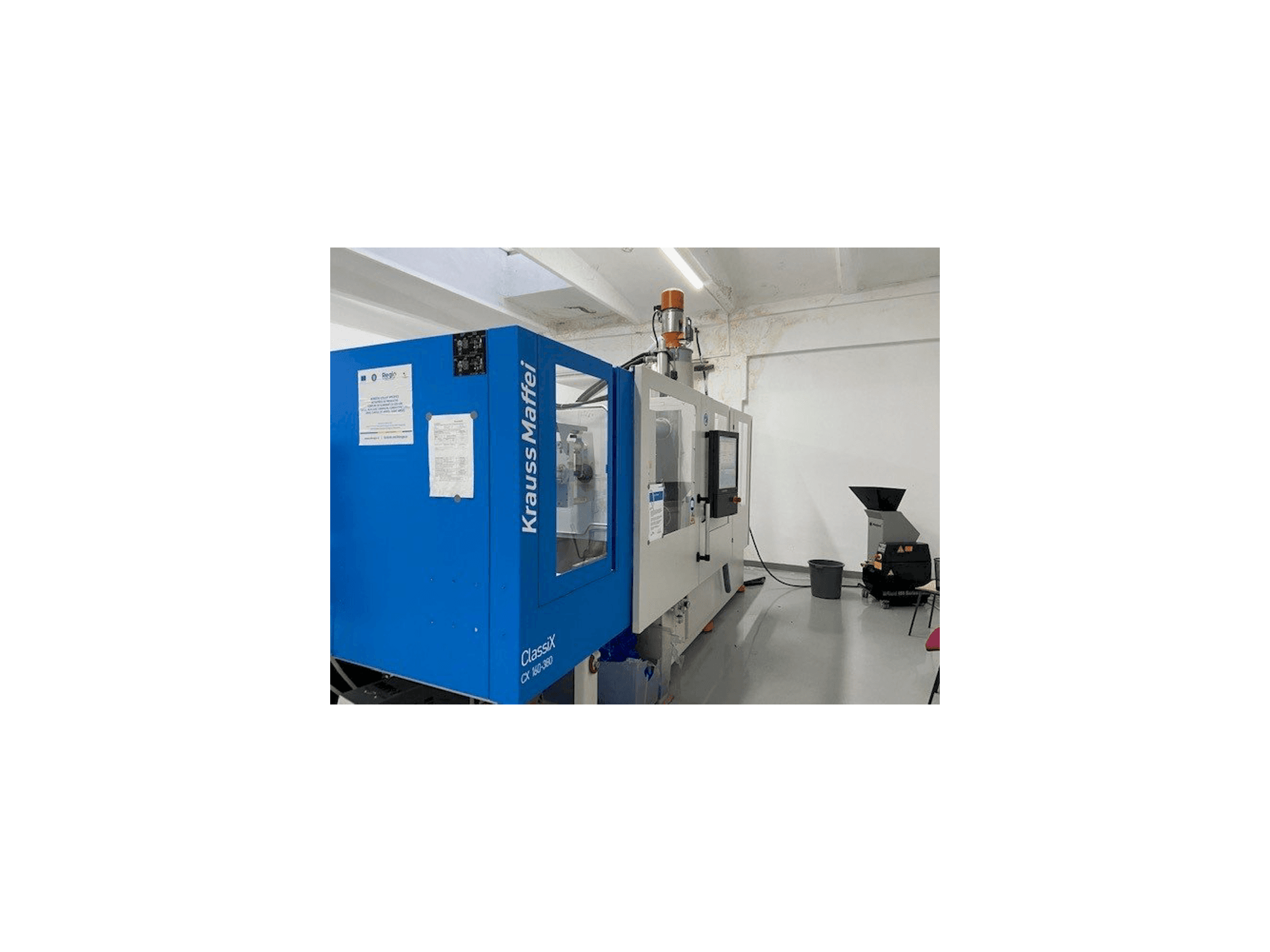

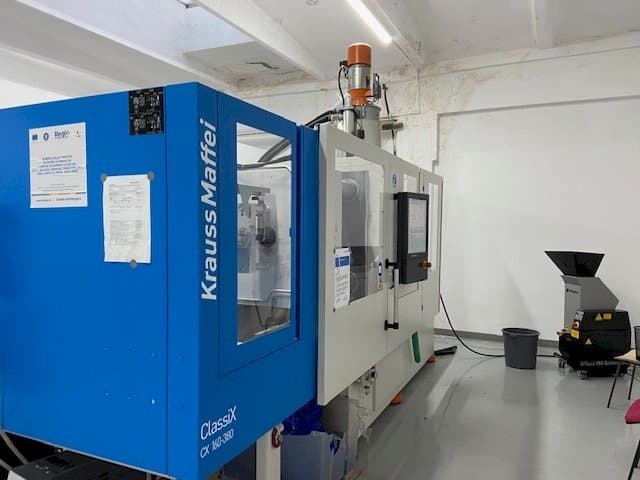

This Krauss Maffei ClassiX CX 160-380 Injection Moulding Machine was made in the year 2019 and has approximately 1600 hours. It is equipped with a Krauss Maffei MC6 control unit. The machine has a clamping force of 1600 kN and a screw diameter of 40 mm.
Overview
- brand: Krauss Maffei
- year: 2018
- MODEL: ClassiX CX 160-380
- production hours: 1600
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei ClassiX CX 160-380
Control Unit
- Model: MC6
- Brand: KRAUSS MAFFEI
Injection Unit
- Screw diameter: 40 mm
- Stroke volume: 200 CM³
- Injection pressure: 1800 bar
- Heating capacity: 5
Clamping unit
- Clamping force: 1600 kn
- Ejector stroke: 150 mm
- Ejector force for / back: 23/10 kn
Additional Information
- Technical Machine Benefits:
- - Platen size (h): 820x845 mm, platen size (v): 520x520 mm
- - Min width mould: 300 mm
- - Max opening width: 950 mm
- - Hot channel control circuits in the mold: 8
- - Dryer motan: dryer volume 60l, power 1. 3kw
- - Feeder motan metro hes: capacity 50kg/h, engine power 1,1kw
- - Moderation unit reglopals 90smart – 2 pcs: capacity 7l, heating power at 400v 9kw, debit max. : 60l/min, size equipment: 202/560/661 mm, air cooled condenser water chiller will provide a cooling temp between 8 si 20 ̊c 18 kw
- - Chiller reglochill rc2e 20: cooling power 18kw
- - Granulator rapid 150-21 deltatech: feeding funnel dimensions: 490x330 mm, cutting chamber dimension: 205x150mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
