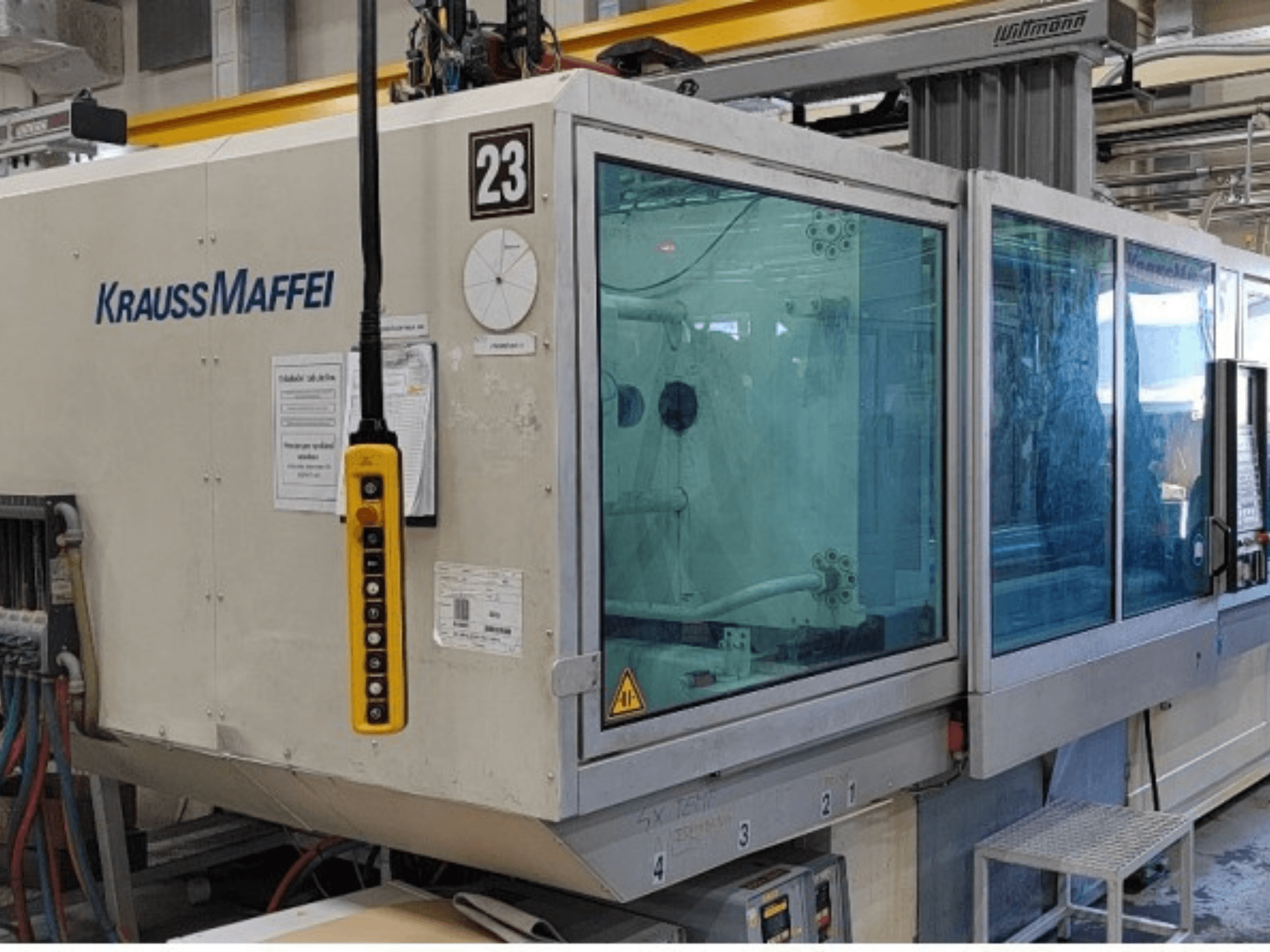

Hydraulic injection moulding machine manufactured in 2006. This Krauss Maffei KM 350-1900 C2 features a clamping force of 350 t and a screw diameter of 60 mm. It offers a maximum platen stroke of 1600 mm and a platen size of 1060 x 1095 mm. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei KM 350-1900 C2 machine we have for sale. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2006
- MODEL: KM 350-1900 C2
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei KM 350-1900 C2
Technical Specification
- Clamping Force: 3500 kN
- Max. Shot Weight: 700 g
- Screw Diameter: 60 mm
Additional Information
Injection pressure: 2420 bar
Platen dimensions: 1060 x 1095 mm
Tie-bar spacing: 800 x 710 mm
Max. platen stroke: 1600 mm
Min. mold height: 680 mm
Centering ring: 160 mm
Ejector pin length: 400 mm
Ejector pin internal thread: M16
Core pulls: 3
Air blow: 2
Hydraulically operated nozzles: 1
Pneumatically operated nozzles: 1
Number of hot runners: 10
Max. injection volume: 769 ccm
Additional equipment
Conveyor
Manipulator / Robot
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
