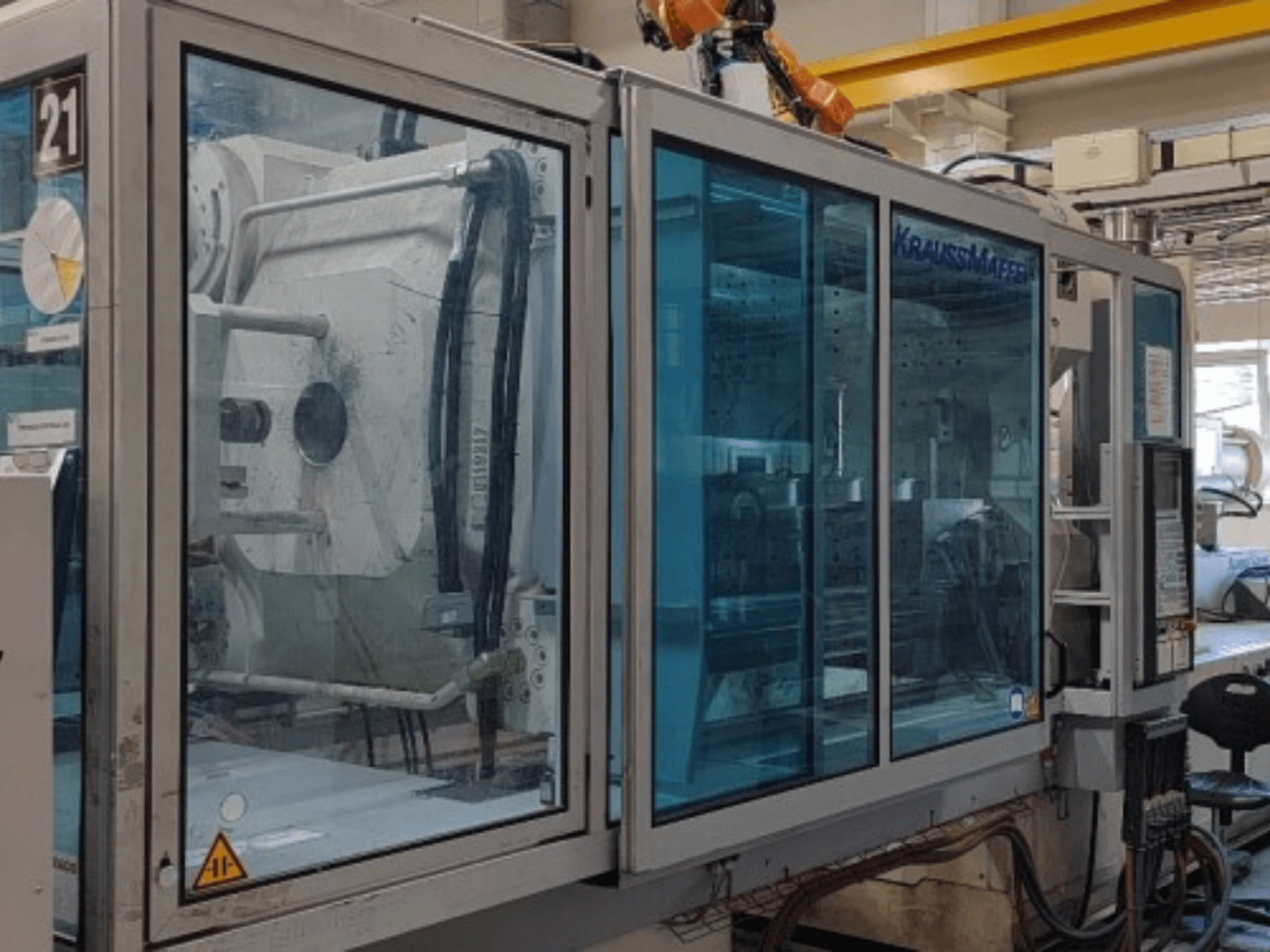

Hydraulic injection moulding machine manufactured in 2006. This Krauss Maffei KM 575-2700 C2 features a clamping force of 575 t and a screw diameter of 80 mm. It offers a maximum platen stroke of 1750 mm and a minimum mold height of 600 mm. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei KM 575-2700 C2 machine we have for sale. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2006
- MODEL: KM 575-2700 C2
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei KM 575-2700 C2
Technical Specification
- Clamping Force: 5750 kN
- Max. Shot Weight: 1304 g
- Screw Diameter: 80 mm
Additional Information
Injection pressure: 1829 bar
Platen dimensions: 1620 x 1470 mm
Tie-bar spacing: 1000 x 880 mm
Max. platen stroke: 1750 mm
Min. mold height: 600 mm
Centering ring: 200 mm
Ejector pin length: 550 mm
Ejector pin internal thread: M16
Core pulls: 3
Air blow: 2
Hydraulically operated nozzles: No
Pneumatically operated nozzles: No
Number of hot runners: 12
Max. injection volume: 1433 ccm
Sorting flap: No
Additional equipment
Conveyor
Manipulator / Robot
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
