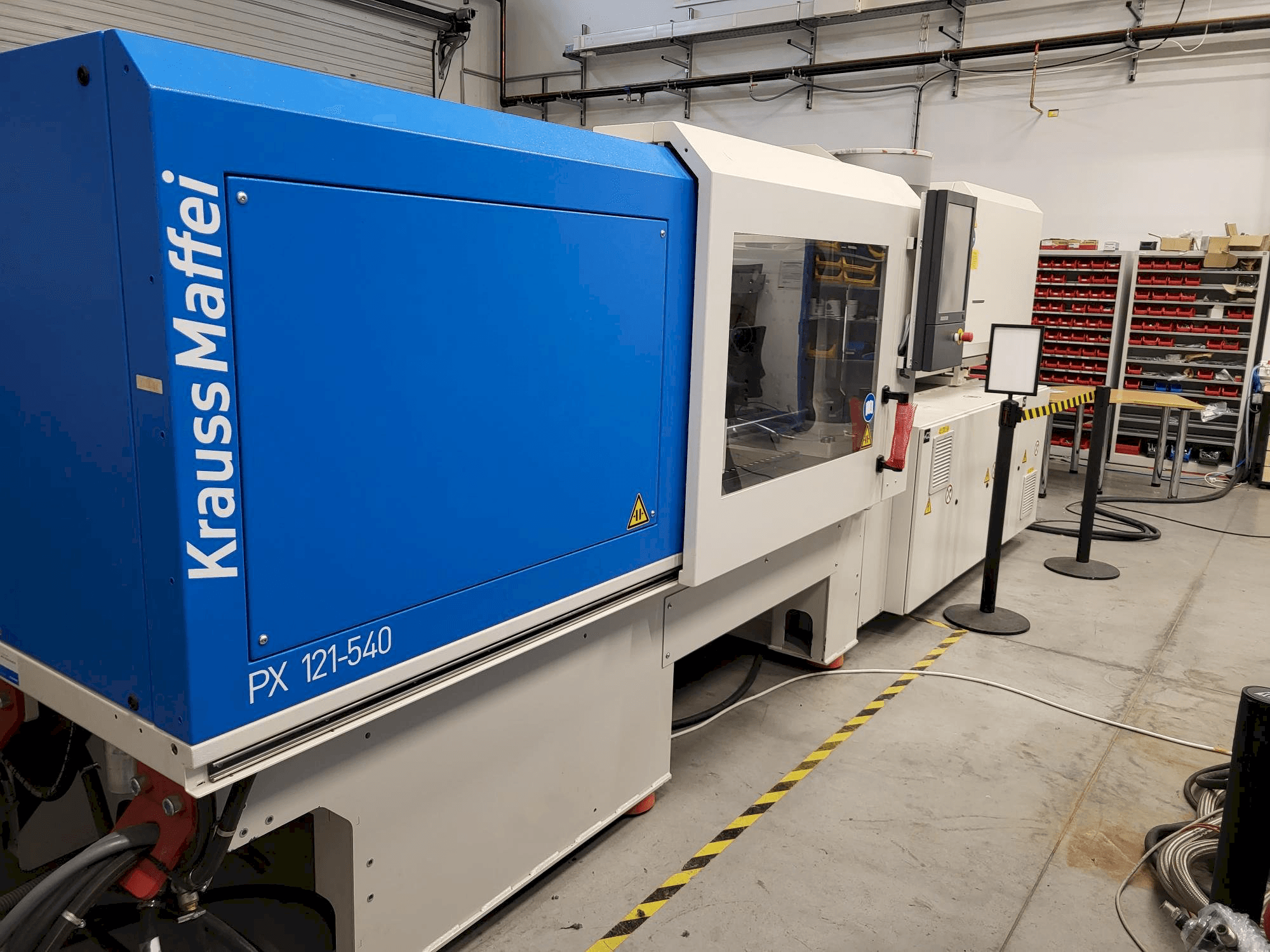

Left side view of Krauss Maffei PX 121-540  machine

Krauss Maffei - PX 121-540CZ-INJ-KRA-2017-00002

94,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Krauss Maffei PX 121-540 injection moulding machine was made in the year 2017. It is equipped with a Krauss Maffei MC6 control unit. The machine has a clamping force of 1200 kN and screw diameter of 40 mm.

Overview

  • brand: Krauss Maffei
  • year: 2017
  • MODEL: PX 121-540
  • application type: Injection Moulding
  • Location: Czech Republic
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately
  • control unit brand: Krauss Maffei

Technical Information - Krauss Maffei PX 121-540

General Data

  • Measurements width: 5600 mm
  • Measurements depth: 1720 mm
  • Measurements height: 1950 mm
  • Machine weight: 8100 kg

Control Unit

  • Brand: Krauss Maffei
  • Model: MC6
  • CNC language customizable: Yes

Injection Unit

  • Screw diameter: 40 mm
  • Shot weight: 206 g/ps
  • Stroke volume: 226 CM³
  • Injection pressure: 2377 bar
  • Plasticizing rate max.: 24 g/s ps
  • Screw speed: 297 1/min
  • Heating capacity: 12,9 kw

Clamping unit

  • Clamping force: 1200 kn
  • Distance between bars: 530 x 480 mm
  • Mould height min: 180 mm
  • Mould height max: 450 mm
  • Size of mold platens: 710 x 660 mm
  • Ejector stroke: 175 mm
  • Ejector force for / back: 22/10 kn

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Robot interface as per euromap 18, euromap 67
      • - 5 adjustable barrel heating zones
      • - 2 core pullers
      • - 4-fold waterbattery
    • Qualitative Machine Benefits:
      • - Very good condition
      • - Showroom machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
