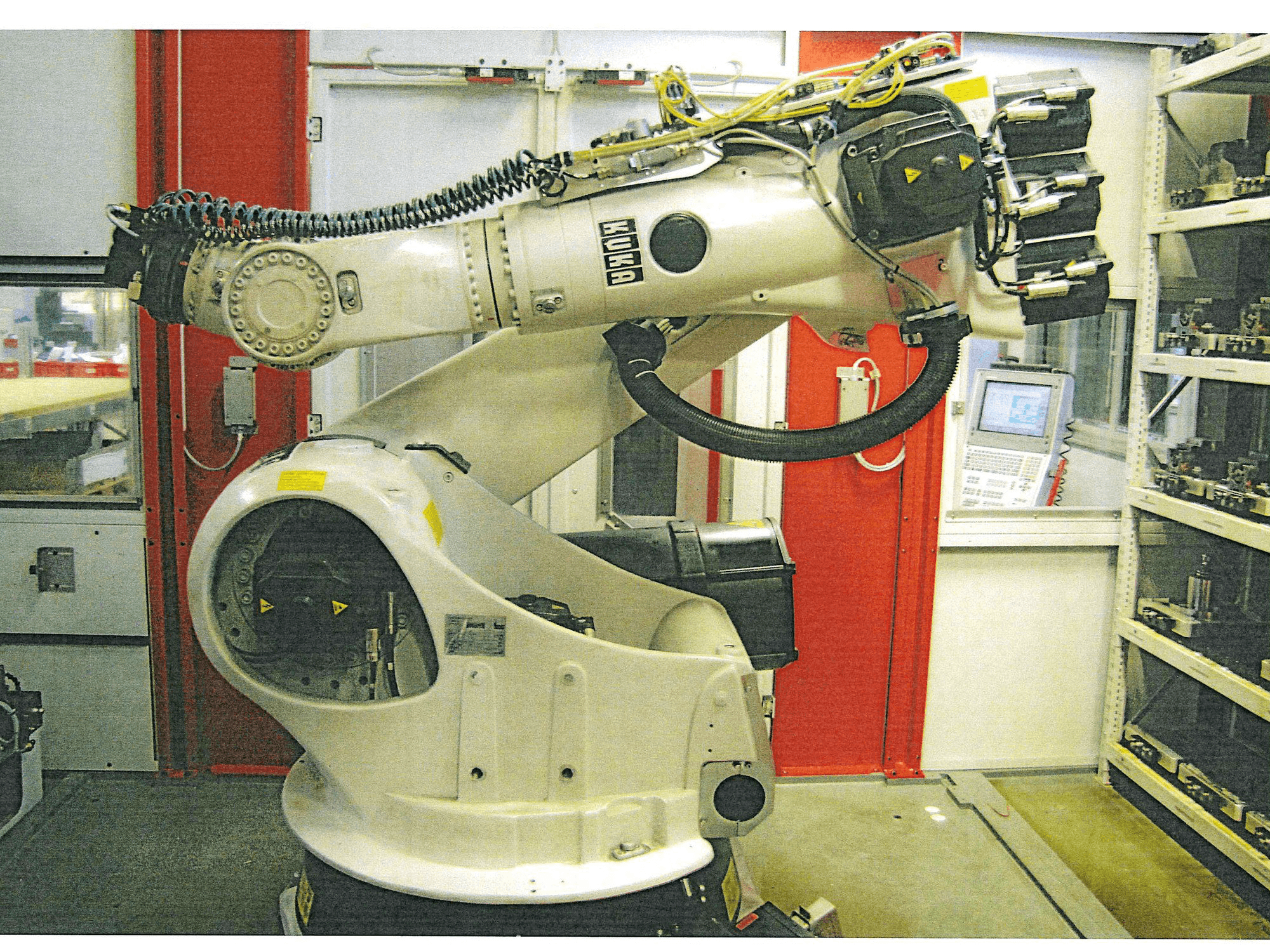

KUKA KR 150-2 2000

Machine Benefits

• Technical Machine Benefits:
  • - Pallet rack 300x300 with 24 places - 22 of which are pallets in the rack, 3 of which are power clamping blocks for clamping automatic clamps.
  • - 2 cubic, 1x cylindrical
  • - 1x manual clamping block
  • - Pallet rack 400x400 with 18 spaces - of which 17 pallets are in the rack
  • - Raw material storage locations:
  • - 2x raw material storage areas for cubic parts, 60 spaces available per storage area. Raw material with the dimensions 50x15 can be loaded.
  • - 2x raw material trays for cylindrical parts, 56 places available per tray. Parts with a 6mm spigot can be loaded.
  • - 2x additional gripper: 1x for cylindrical, 1x for cubic parts
  • - Kuka with 6 axes with a maximum pallet weight of 140 kg
  • - Kuka manual control unit raw material loading via external set-up station
• Qualitative Machine Benefits:
  • - Soflex order management version 4. 27
  • - Master computer runs on windows 10, soflex pcs runs on windows xp
