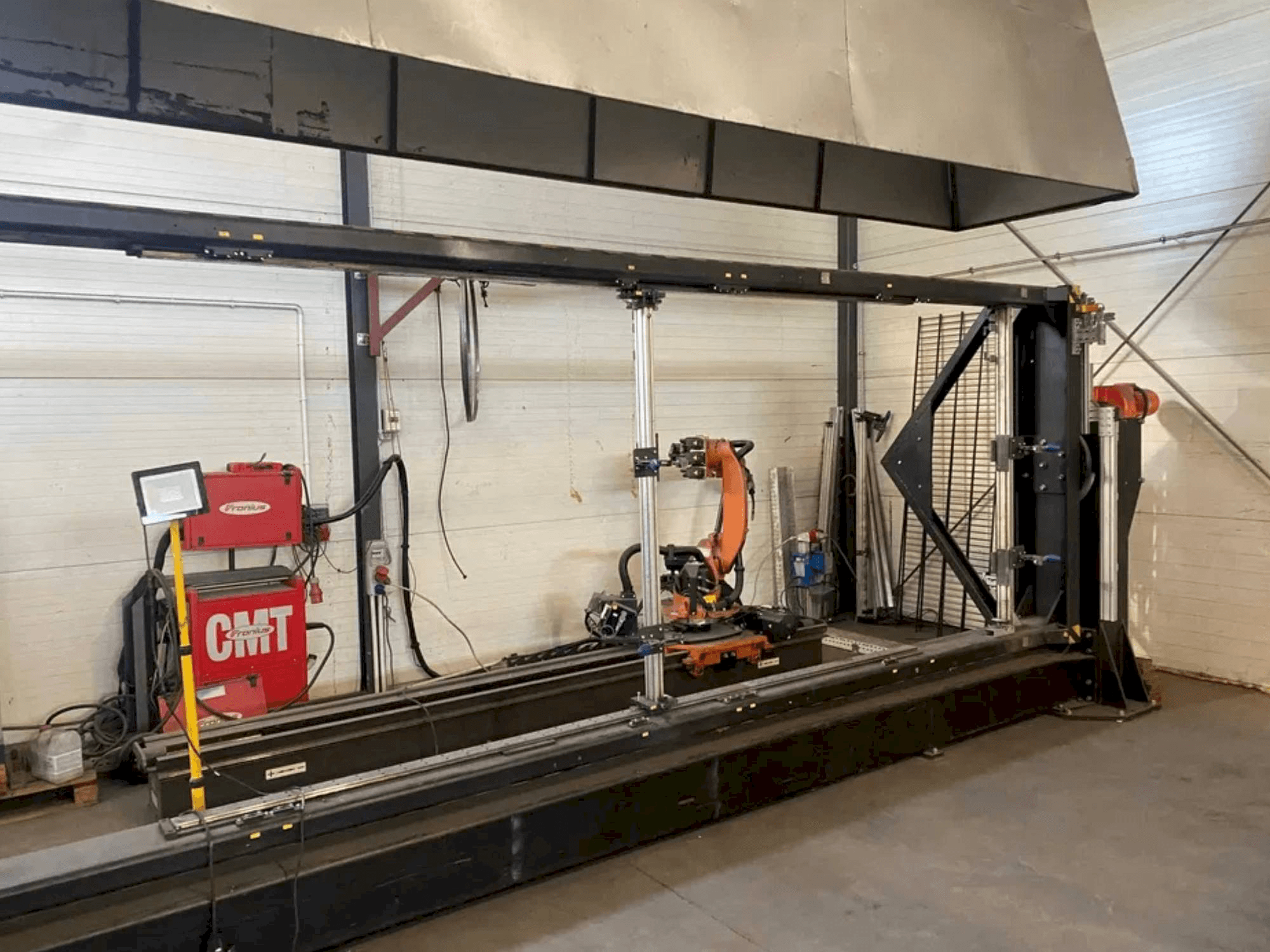

Front view of Kronos Kjellberg KR 16 L6 ARC-C  machine

KUKA - KR 16 L6 ARC-CPL-ROB-KUK-2009-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Welding system KUKA KR16 ARC was manufactured in the year 2009 in Germany. The system includes a Robot KUKA KR 16 L6 ARC-C, with 50 hours and a max load of 6 kg, and a welding station Fronius TransPuls Synergic 4000 CMT R, with a pulse welding up to 400 A a process of MIG/MAG, and a base metals: Aluminium, CrNi, Special metals, Steel.

Overview

  • brand: KUKA
  • year: 2009
  • MODEL: KR 16 L6 ARC-C
  • production hours: 50
  • application type: Robotics
  • Location: Poland
  • machine type: Robot
  • availability: Sold

Technical Information - KUKA KR 16 L6 ARC-C

General Data

  • Measurements width: 7887 mm
  • Measurements depth: 2000 mm
  • Measurements height: 2407 mm
  • Machine weight: 4940 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - The system includes:
      • - 1- robot: kuka kr 16 l6 arc-c yom: 03/2009 working hours: 50h max load: 6 kg
      • - 2- welding station: fronius transpuls synergic 4000 cmt r pulse welding up to 400 a process: mig/mag base metals: aluminium, crni, special metals, steel
      • - System parameters:
      • - Base width: 960mm
      • - Axis position relative to the ground: 1407mm
      • - Axle position relative to link 300: 1082mm
      • - Spacing between discs: 6350mm
      • - Load capacity on rotary table: 1040kg
      • - Total load capacity: 2000kg
    • Qualitative Machine Benefits:
      • - Rotary table weight: 960kg
      • - 4 lifting shackles, each with lifting capacity: 3250 kg
      • - The first installation and start up in 2017
      • - The system is designed for welding sliding gates, fence spans but possible other applications. Full documentation available, ready for presentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
