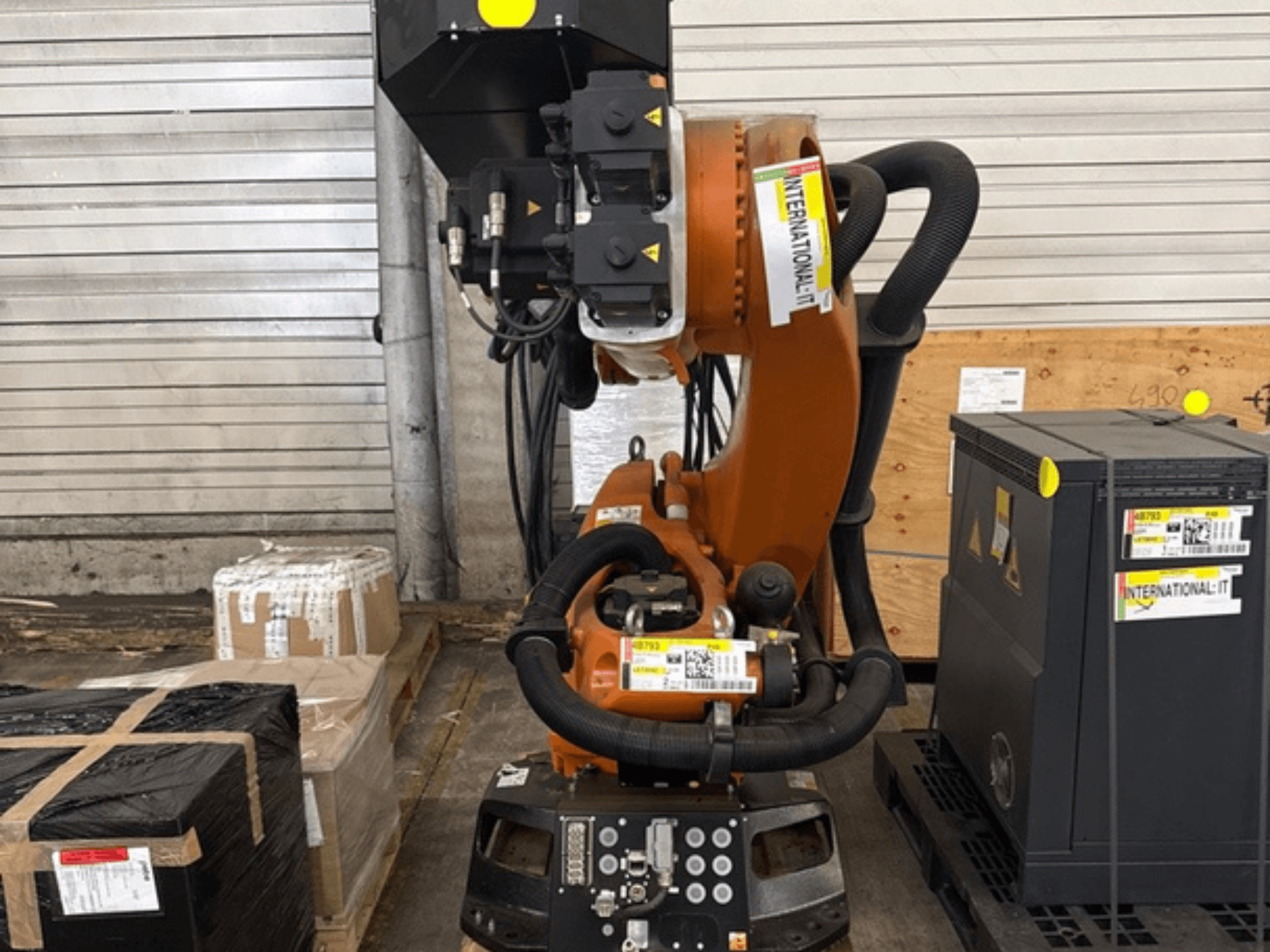

This 6-axis KUKA KR 210 R2700 extra was manufactured in 2016. It features a maximum reach of 2,696 mm and a nominal load capacity of 210 kg, making it suitable for various applications. The robot arm is designed for floor mounting and has a compact footprint of 830 × 830 mm. If you are looking to get high-quality automation capabilities, consider the KUKA KR 210 R2700 extra robot arm we have for sale. Contact us for further details.
Overview
- brand: KUKA
- year: 2016
- MODEL: KR 210 R2700 extra
- application type: Robotics
- Location: Italy
- machine type: Robot Arm
Technical Information - KUKA KR 210 R2700 extra
Dimensions
- Machine Weight: 1068 kg
Movement
- Number of Axes: 6
Technical Specification
- Max. Handling Weight: 210 kg
- Max. Reach: 2696 mm
Additional Information
Operating hours: 5,600 h
Nominal load (payload): 210 kg
Nominal additional load (carousel / swing arm / arm): 0 kg / 0 kg / 50 kg
Nominal total load: 260 kg
Position repeatability (ISO 9283): 0.06 mm
Mounting position: Floor
Footprint: 830 × 830 mm
Axis movement ranges:
A1: ±185°
A2: -140° to -5°
A3: -120° to 155°
A4: ±350°
A5: ±125°
A6: ±350°
Axis speeds at nominal load:
A1: 123°/s
A2: 115°/s
A3: 112°/s
A4: 179°/s
A5: 172°/s
A6: 219°/s
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
