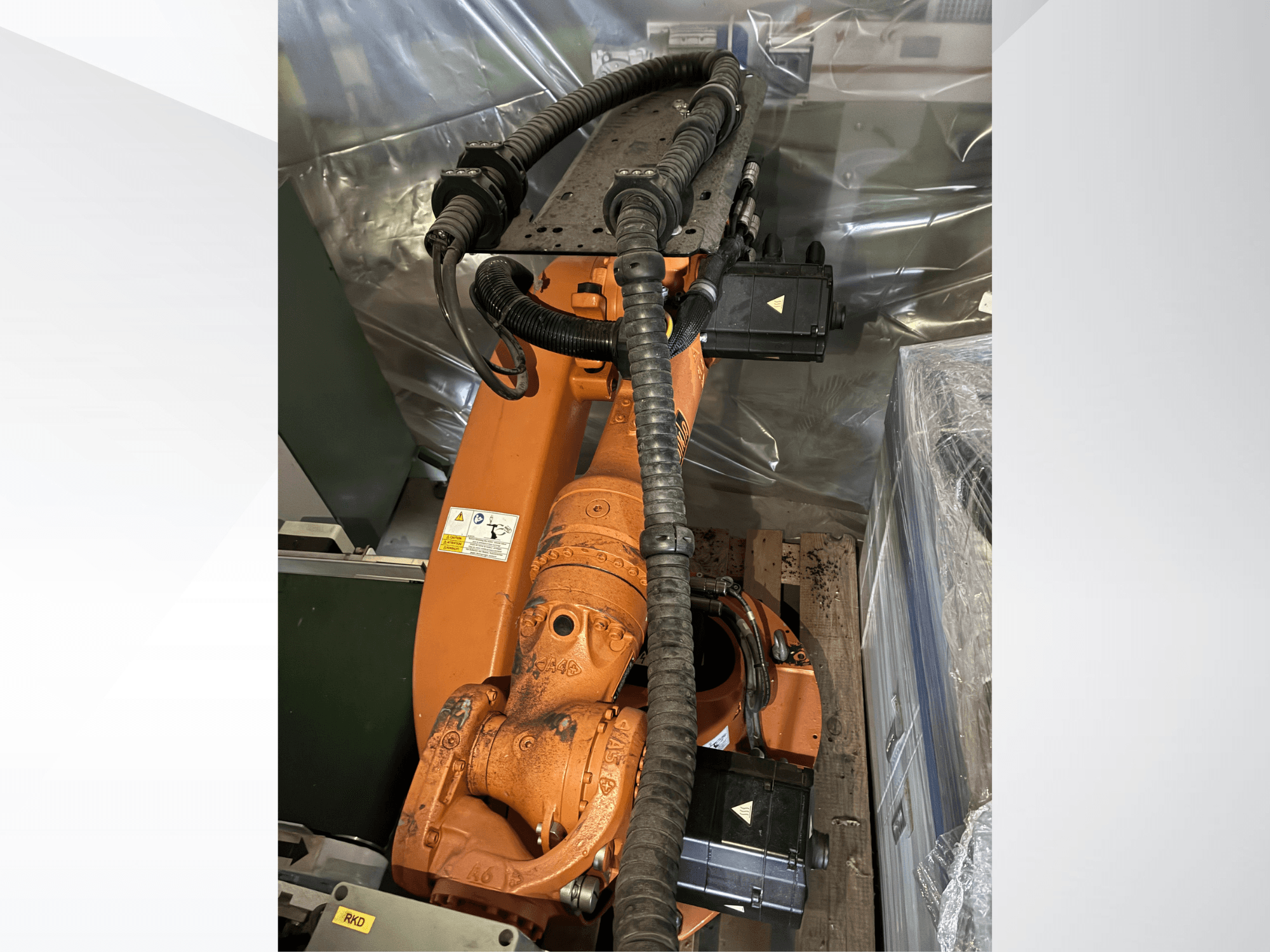

This 6-axis KUKA KR16-2 robot arm was manufactured in 2017. It features a payload capacity of 16 kg and a maximum reach of 1650 mm. Versatile mounting options include floor, inverted, or angled setups. Ideal for material handling, assembly, welding, and more. Weighs approximately 280 kg. Compatible with KUKA KR C2 or KR C3 series controllers. Contact us for more information about this machine.
Overview
- brand: KUKA
- year: 2017
- MODEL: KR16-2
- application type: Robotics
- Location: Hungary
- machine type: Robot Arm
Technical Information - KUKA KR16-2
Dimensions
- Machine Weight: 280 kg
Movement
- Number of Axes: 6
Additional Information
Additional equipment
- Drive System: Servo motors with harmonic drive gearing
Machine Benefits
Technical Machine Benefits
- Application areas: material handling, assembly, welding, machine tending, pick and place
- Safety features: integrated safety functions according to industrial standards
- Reach: 1650 mm
- Repeatability: ±0. 03 mm
- Mounting options: floor, inverted, or angled mounting possible
- Power supply: typically 400 v, 50/60 hz
- Controller compatibility: compatible with kr c2 or kr c3 series
Extra Information
Movement Motion Range per Axis: Axis 1 (Base rotation): ±170° Axis 2 (Shoulder): +85° to -125° Axis 3 (Elbow): +156° to -102° Axis 4 (Wrist 1): ±185° Axis 5 (Wrist 2): ±120° Axis 6 (Wrist 3): ±350°
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
