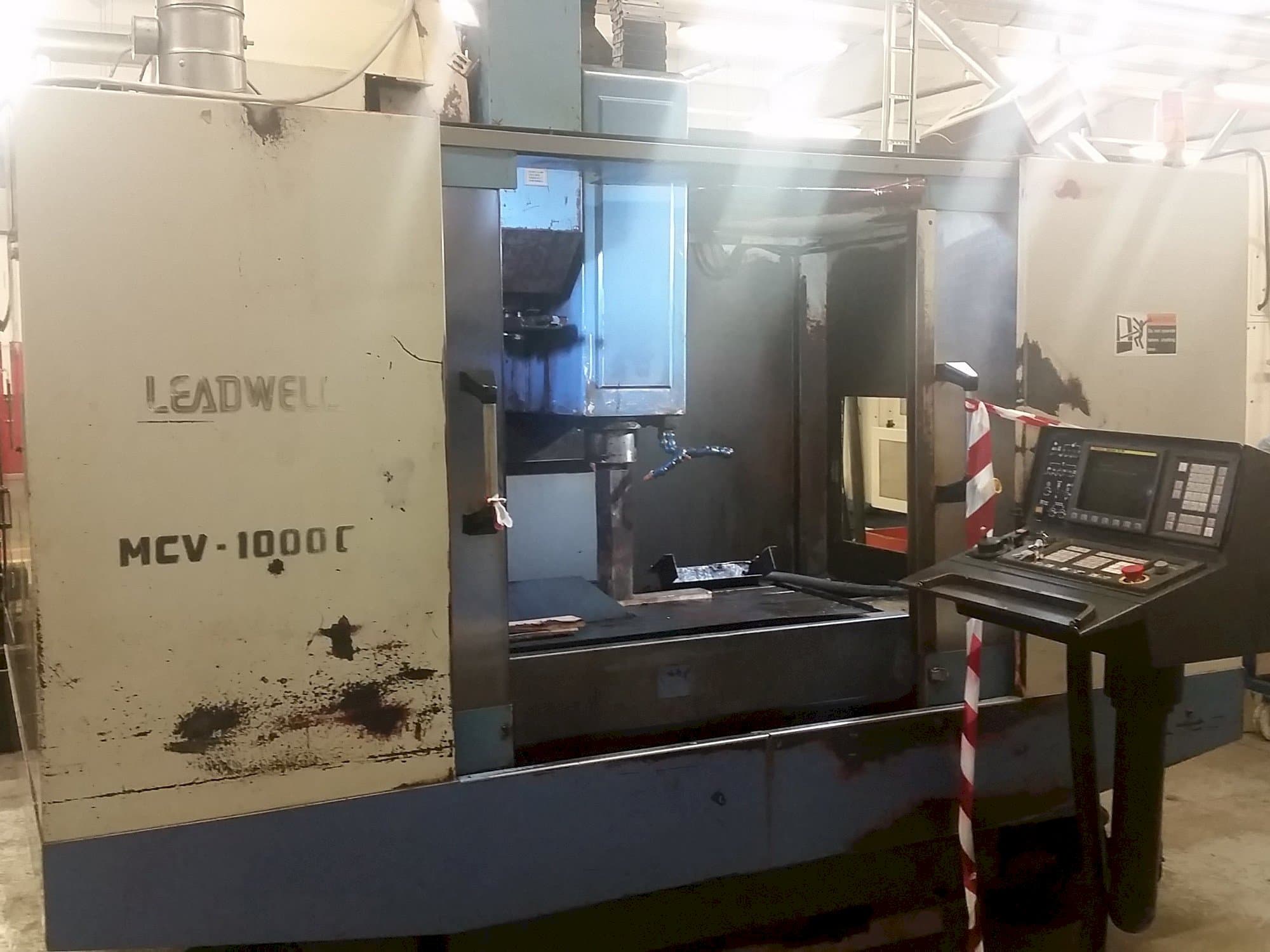

Front view of Leadwell MCV-1000CR machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Leadwell MCV-1000CR

Photo Gallery

Leadwell - MCV-1000CRLV-MIL-LEA-1996-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Leadwell MCV-1000CR Milling Machine

This Leadwell MCV-1000CR Milling Machine was manufactured in the year 1996 in Taiwan. It has a production record of approximately 25000 working hours. It is operated with a Fanuc control unit. This machine can work with a spindle speed range up to 7000 rpm.

Overview

brand: Leadwell
year: 1996
MODEL: MCV-1000CR
production hours: 25000
application type: Milling
Location: Latvia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Leadwell MCV-1000CR

General Data

Measurements width: 3900 mm
Measurements depth: 2900 mm
Measurements height: 3000 mm
Machine weight: 7200 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 7000 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece x: 1000 mm
Workpiece y: 510 mm
Workpiece z: 640 mm
Workpiece weight: 700 kg

Table

Outer length: 1400 mm
Outer width: 540 mm

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 100 mm
Max tool length: 250 mm
Type of tool holder: 40 (BT-40)

Media

Main electronic connection: 380 V
Power consumption: 25 kVA
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
