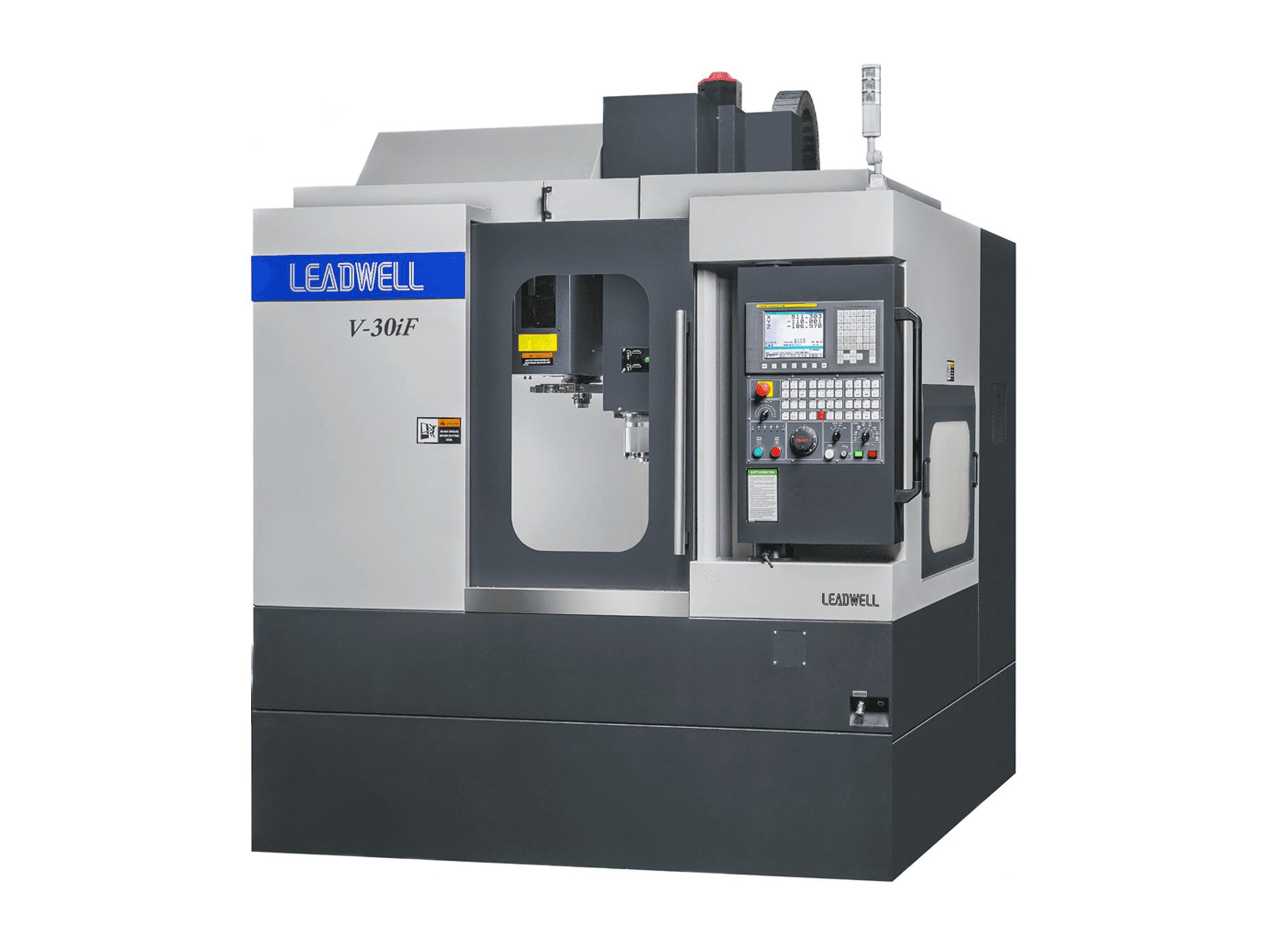

This new Leadwell V-30iF Vertical Machining Center was manufactured in Taiwan and is operated through a Heidenhain TNC 620 Control unit. This model stands out due to its maximum table load capacity of 600 kg and performs a tool change in 2.2 seconds. An additional tool magazine for up to 30 tools is included in the delivery.
Overview
- brand: Leadwell
- year: 2016
- MODEL: V-30iF
- production hours: 0
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
- GINDUMAC ID: DE-MIL-LEA-2016-00001
Technical Information
General Data
- Measurements width: 2170 mm
- Measurements depth: 2250 mm
- Measurements height: 1810 mm
- Machine weight: 3700 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 620
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/min
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 460 mm
- Z-AXIS Movement: 510 mm
Table
- Outer length: 860 mm
- Outer width: 450 mm
- TSlots size: 18 mm
- Number of tslots: 3
- Distance between: 125 mm
- Table load: 600 kg
Tools
- Max weight: 7 kg
Media
- Main electronic connection: 400 V
- Power consumption: 30 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
