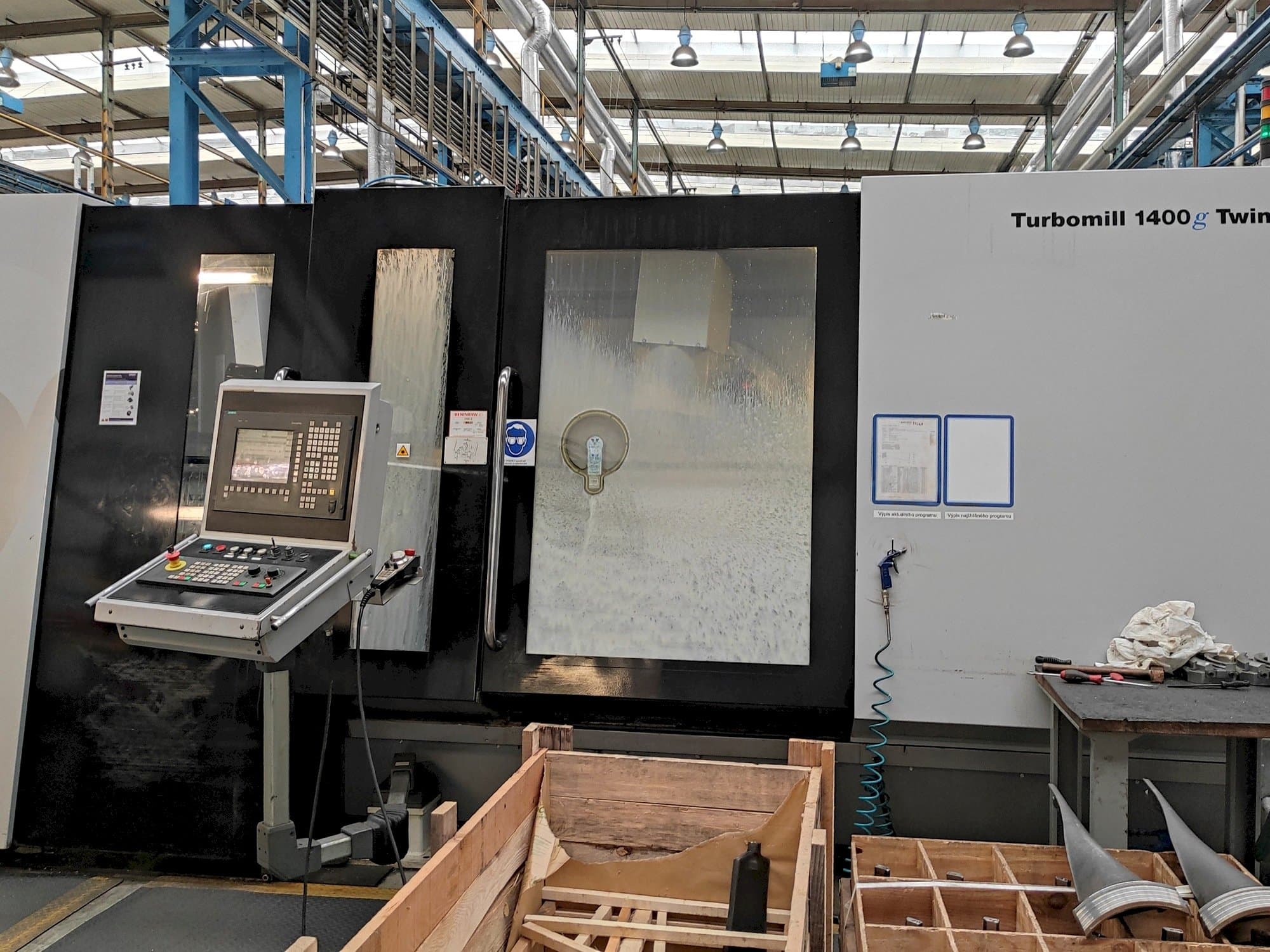

Front view of Liechti Turbomill 1400g Twin machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Liechti Turbomill 1400g Twin

Photo Gallery

Liechti - Turbomill 1400g TwinCZ-TUR-LIE-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Liechti Turbomill 1400g Twin Lathe

This Liechti Turbomill 1400g Twin Lathe was made in Switzerland in 2010. It is operated through a Siemens 840D control unit. This 10 axis machine works with a spindle speed up to 20000 rpm. It is in very good condition and has a regularly maintained.

Overview

brand: Liechti
year: 2010
MODEL: Turbomill 1400g Twin
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Liechti Turbomill 1400g Twin

General Data

Machine weight: 22000 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 4
Spindle speed range: 20000 1/MIN
Spindle motor power: 25 kW
Number of axis: 10

Movement

X-AXIS Movement: 1980 (- 527 / + 1453) mm
Y-AXIS Movement: 450 (- 160 / + 290) mm
Z-AXIS Movement: 400 ( + 75 / + 475) mm

Tools

Slots in storage: 32
Max tool diameter: 75/150 mm
Max tool length: 290 mm
Type of tool holder: HSK-A63

Media

Main electronic connection: 3 x 400V / 50Hz
Power consumption: 140 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Axis a (a1/a2 and a11/22) 360 º (rollover)
- - Milling head (axis b): 100 º (- 50 / + 50 º) @ x ≥ 60 mm; 92 º (- 42 / + 50 º) @ x < 60 mm
- - Max. Torque: 119. 4 nm
- - Through spindle cooling
- - Coolant
Qualitative Machine Benefits:
- - Machine manual
- - Very good condition
- - Regularly maintained
- - *main parts replaced in 2021: new spindle sp1
- - In 2021: new axis a12 - master
- - In 2020: new spindle sp2
- - Z1 and z11 axis and ball screw replacement
- - In 2019: z axis motor replacement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
