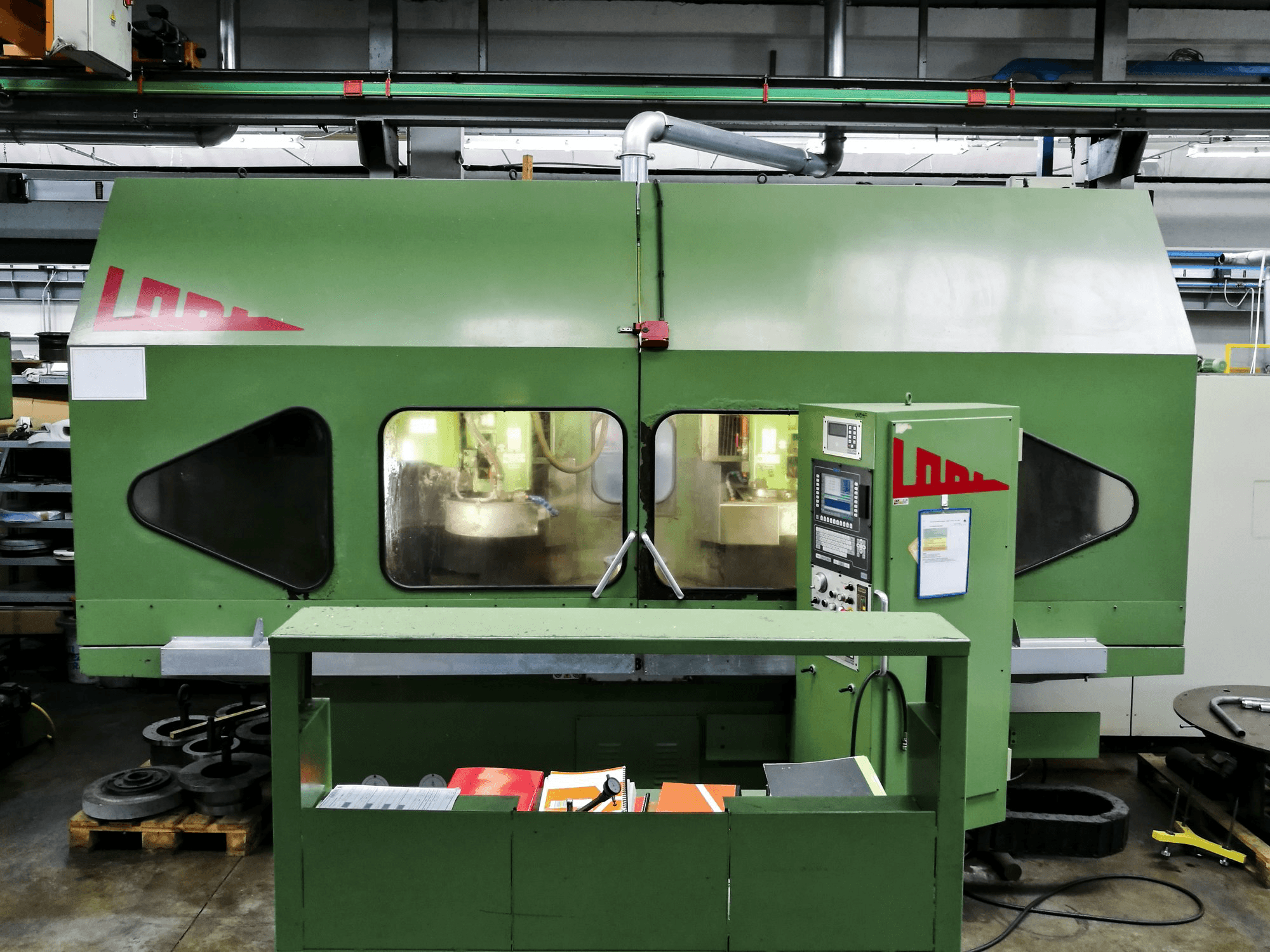

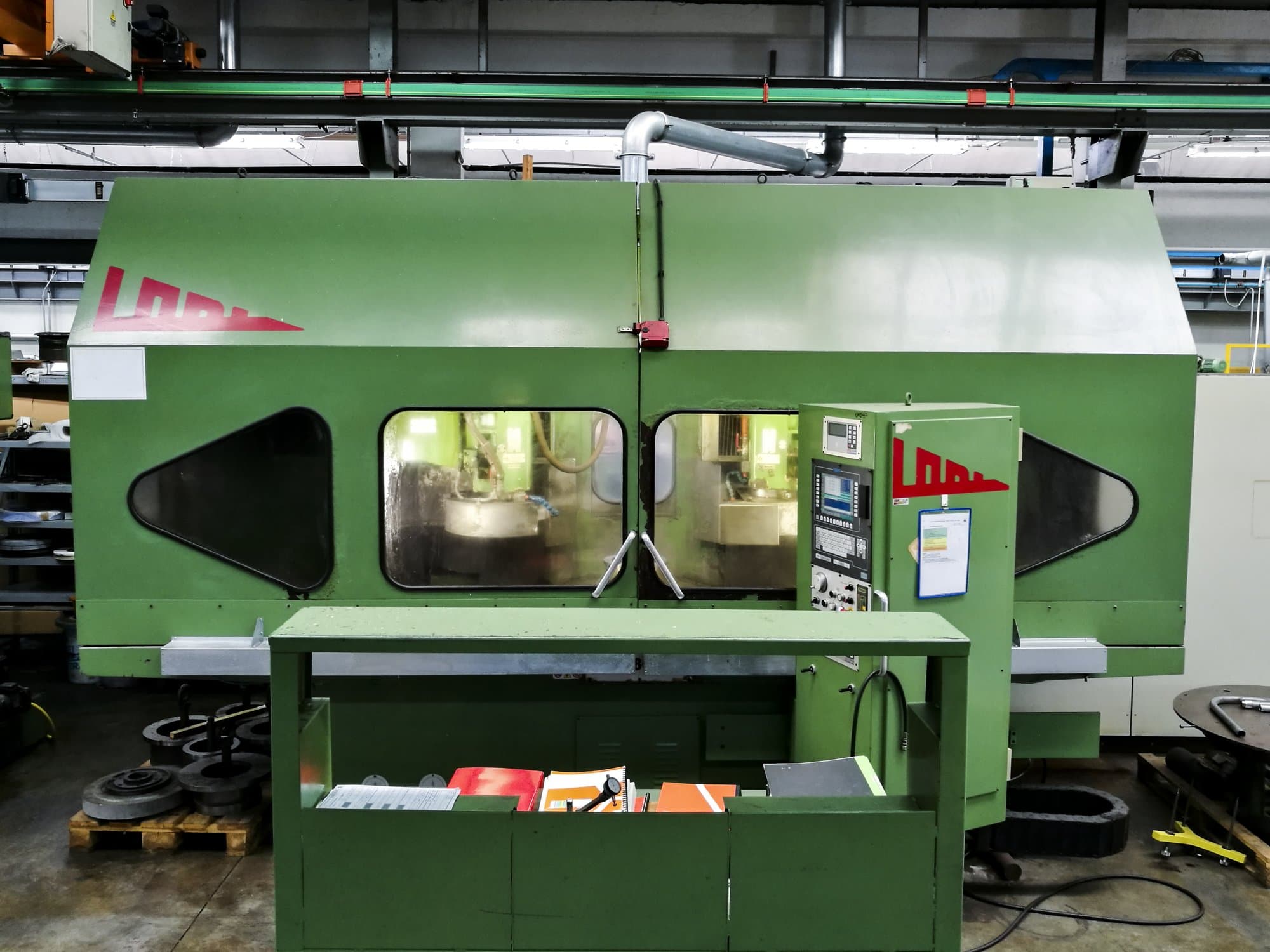

Front view of Lodi RTR S800 CNC machine

Lodi - RTR S800 CNCIT-GRI-LOD-2000-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Lodi RTR S800 CNC Grinding Machine was built in Italy in 2000. It is equipped with a Tecnel T2010 Control unit and two grinding wheels for a fluent working process. This equipment comes with an incorporated, wheel-shaping diamond tool for special piece production. In the past, this Lodi Grinding machine has been working mostly on steel parts for textile industry machinery.

Overview

  • brand: Lodi
  • year: 2000
  • MODEL: RTR S800 CNC
  • application type: Grinding
  • Location: Italy
  • machine type: Surface Grinding Machine
  • availability: Sold

Technical Information - Lodi RTR S800 CNC

General Data

  • Measurements width: 6300 mm
  • Measurements depth: 2300 mm
  • Measurements height: 2950 mm
  • Machine weight: 13500 kg

Control Unit

  • Model: T2010

Main drive

  • Number of spindles: 2
  • Spindle speed range: 2100 1/min
  • Spindle motor power: 15 kW

Movement

  • X-AXIS Movement: 4000 mm
  • X-AXIS Rapid traverse: 3 m/min
  • Y-AXIS Movement: 5000 mm
  • Y-AXIS Rapid traverse: 5 m/min
  • Z-AXIS Movement: 1000 mm
  • Z-AXIS Rapid traverse: 0.5 m/min
  • W-Axis Movement: 1000 mm
  • W-Axis Rapid traverse: 3 m/min

Workpiece

  • Workpiece drm: 1000 mm

Table

  • Outer length: 800 mm

Tools

  • Max tool diameter: 500 mm
  • Max tool length: 203 mm

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 55 kVA
  • Lubrication tank: 25 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
