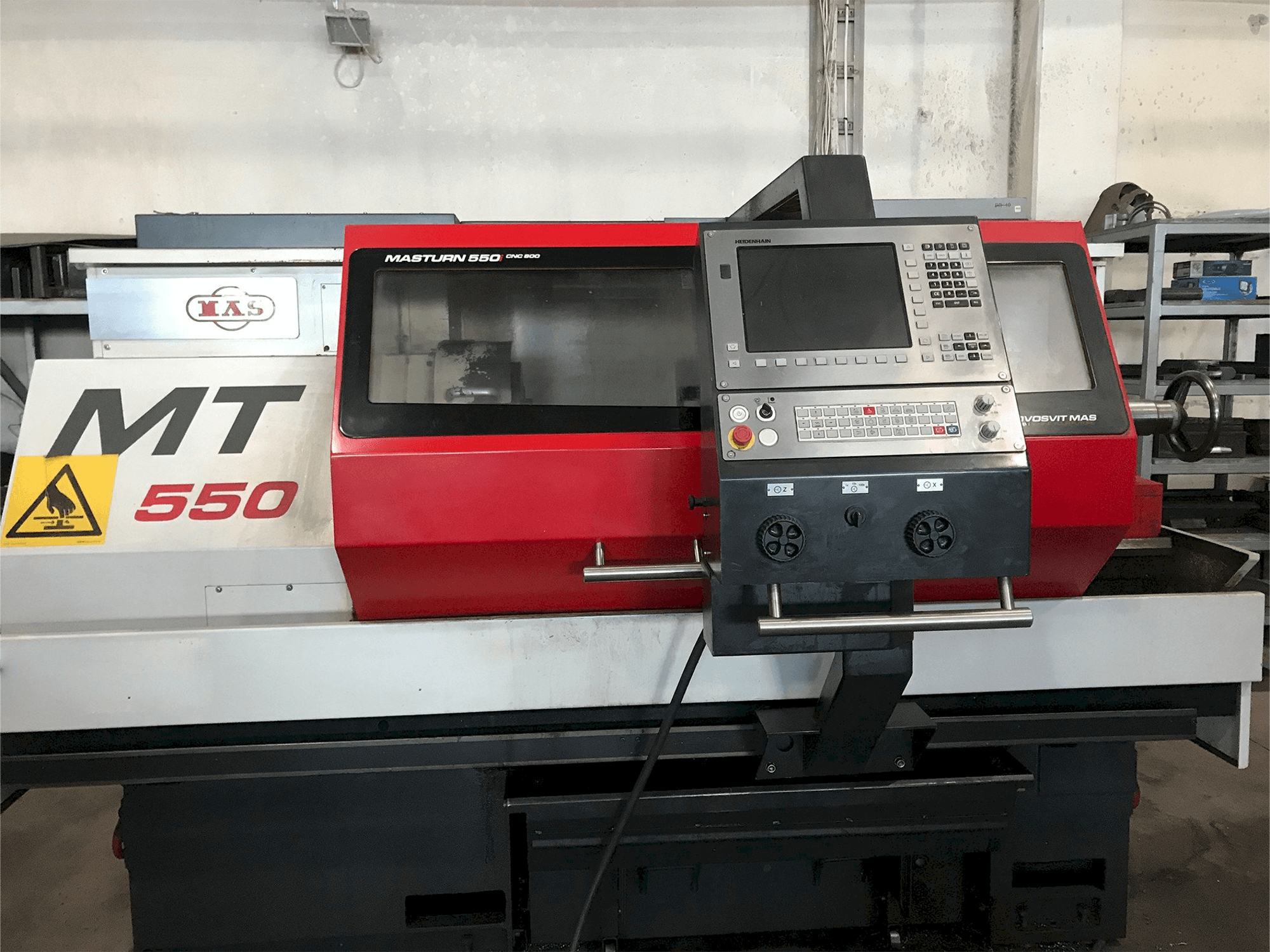

Front view of MAS MASTURN MT 550 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MAS MASTURN MT 550

Photo Gallery

MAS - MASTURN MT 550EE-TUR-MAS-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MAS MASTURN MT 550 Lathe

This MAS MASTURN MT 550 Lathe was built in Czech Republic in 2015. It has been working for 7398 hours. It is equipped with a HEIDENHAIN MANUALplus 620 control unit. This machine can works with a spindle speed range between 0 - 3000 rpm. It comes with additional accesories.

Overview

brand: MAS
year: 2015
MODEL: MASTURN MT 550
production hours: 7398
application type: Turning
Location: Estonia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MAS MASTURN MT 550

General Data

Measurements width: 2538 mm
Measurements depth: 1920 mm
Measurements height: 1755 mm
Machine weight: 3200 KG

Control Unit

Model: MANUALplus 620
CNC main language: English
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/MIN
Spindle bore: 82 mm

Movement

X-AXIS Movement: 285 mm
Z-AXIS Movement: 890 mm

Workpiece

Workpiece weight: 600 KG

Media

Power consumption: 30 kVA

Additional Equipment

- TURRET DUPLOMATIC with next toolholders
- Radial tool holder B2, 30x20x40
- Radial tool holder B2, 30x25x44
- Boring bar holder E2-30x12
- Boring bar holder E2-30x16
- Boring bar holder E2-30x20
- Boring bar holder E2-30x25
- Collets holder E4
- Collets DIN 6499 DIA 3-20
- Holder MO2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Holder mo3
- - Tool holder, for turning tools dia 16 (30. 16. 230)
- - Tool holder, for turning tools dia 20 (30. 20. 230)
- - Reducing sleeve dia 8
- - Reducing sleeve dia 10
- - Reducing sleeve dia 12
- - Chuck dia 1-13
Qualitative Machine Benefits:
- - The machine is not being used
- - The machine has very low hours compared to machines from the same year

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

MT550.pdf
