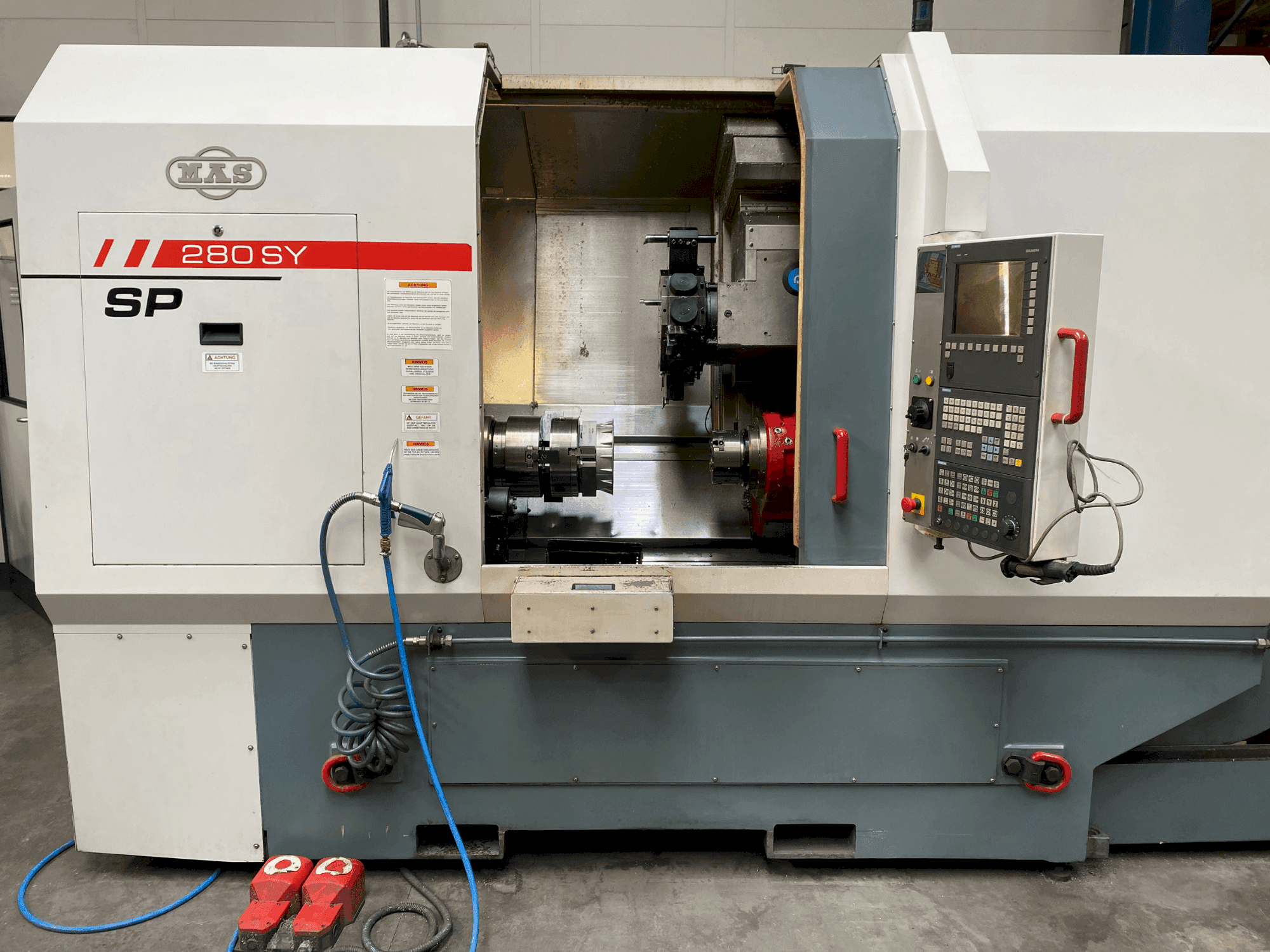

➤ Used MAS SP280 SY For Sale | gindumac.com

This 3-axis MAS SP280 SY was manufactured in 2013. Ideal for precision horizontal turning, this machine maintains robust functionality despite its years. A solid choice for enhancing your machining operations. Contact us for more information.

Overview

brand: MAS
year: 2013
MODEL: SP280 SY
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - MAS SP280 SY

General Data

Measurements width: 2122 mm
Measurements depth: 3875 mm
Measurements height: 2345 mm
Machine weight: 7900 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840 D

Main drive

Number of spindles: 1
Spindle speed range: 4700 rpm 1/MIN
Spindle motor power: 21 / 27 kW
Number of axis: 3

Movement

X-AXIS Movement: 194 mm
X-AXIS Feed Force: 5 kN
X-AXIS Rapid traverse: 30 m/min
X-AXIS Accuracy: 0.004 mm
Y-AXIS Movement: 100 mm
Y-AXIS Feed Force: 10 kN
Y-AXIS Rapid traverse: 15 m/min
Y-AXIS Accuracy: 0.004 mm
Z-AXIS Movement: 640 mm
Z-AXIS Feed Force: 12 kN
Z-AXIS Rapid traverse: 30 m/min
Z-AXIS Accuracy: 0.008 mm

Workpiece

Workpiece drm over bed: 570 mm
Workpiece weight: 50 / 100 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose (din 55026): a6
- - Max. Spindle torque mh s1/s6 - 40%: 200 / 257 nm
- - Max. Bar stock passage: 81 mm
- - X-axis: ball screw diameter/pitch: 32 / 12 mm
- - Z-axis: ball screw diameter/pitch: 40 / 15 mm
- - Y-axis: ball screw diameter/pitch: 32 / 12 mm
- - Max. Turning diameter: 280 mm
- - Max. Turning length between centers: 490 mm

Extra information

- Tools Tool Turret: Number of Positions: 12 Diameter of the Clamping Bolt of the Tool Holder DIN 69880: 40 mm Steel Size: 25x25 mm Max. Tool Spindle Speed S3-40%: 4000 min-1 Power S1/S3 - 40%: 5.5 / 8 kW Torque S1/S3 - 40%: 27 / 40 Nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
