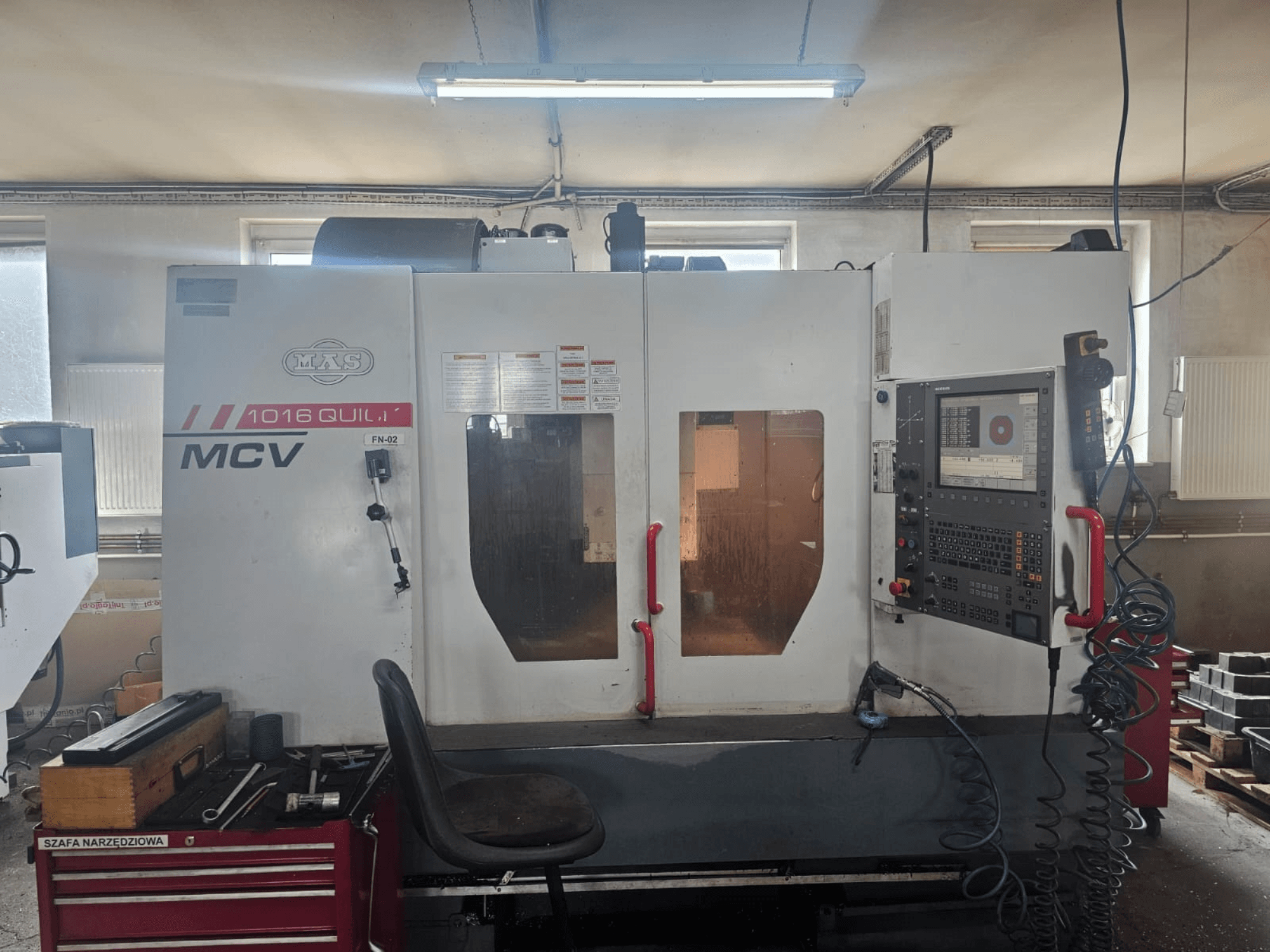

MVS MCV 1016 QUILL CNC machine, front view, featuring control panel, tool drawer, and workspace with tools.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MAS MCV 1016 QUICK

Photo Gallery

MAS - MCV 1016 QUICKPL-MIL-MAS-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MAS MCV 1016 QUICK For Sale | gindumac.com

This 3-axis MAS MCV 1016 QUICK was manufactured in 2010. It features a table size of 1300 × 600 mm, with a maximum travel of 1016 mm in the X-axis, 610 mm in the Y-axis, and 710 mm in the Z-axis. The spindle supports a speed range of 20–10000 rpm with stepless speed change. It can handle a maximum table load of 700 kg. If you are looking to get high-quality milling capabilities consider the MAS MCV 1016 QUICK machine we have for sale. Contact us for more information.

Overview

brand: MAS
year: 2010
MODEL: MCV 1016 QUICK
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MAS MCV 1016 QUICK

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 530

Dimensions

Table Load: 700 kg

Movement

Number of Axes: 3
X-axis Travel: 1016 mm
Y-axis Travel: 610 mm
Z-axis Travel: 710 mm

Technical Specification

Spindle Speed: 10000 RPM
Taper Size: ISO 40

Additional Information

Table size: 1300 × 600 mm
Number of T-slots in table: 5
Maximum workpiece dimensions (with maximum tool length): 1016 × 600 × 420 mm
Spindle bearing diameter: 75 mm
Distance from spindle nose to clamping surface: 100–810 mm
Distance from spindle axis to column: 635 mm
Tool clamping force: 12,000 N
Positioning accuracy (VDI/DGQ 3441): 0.012 mm
Measurement in X, Y, Z: direct

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
