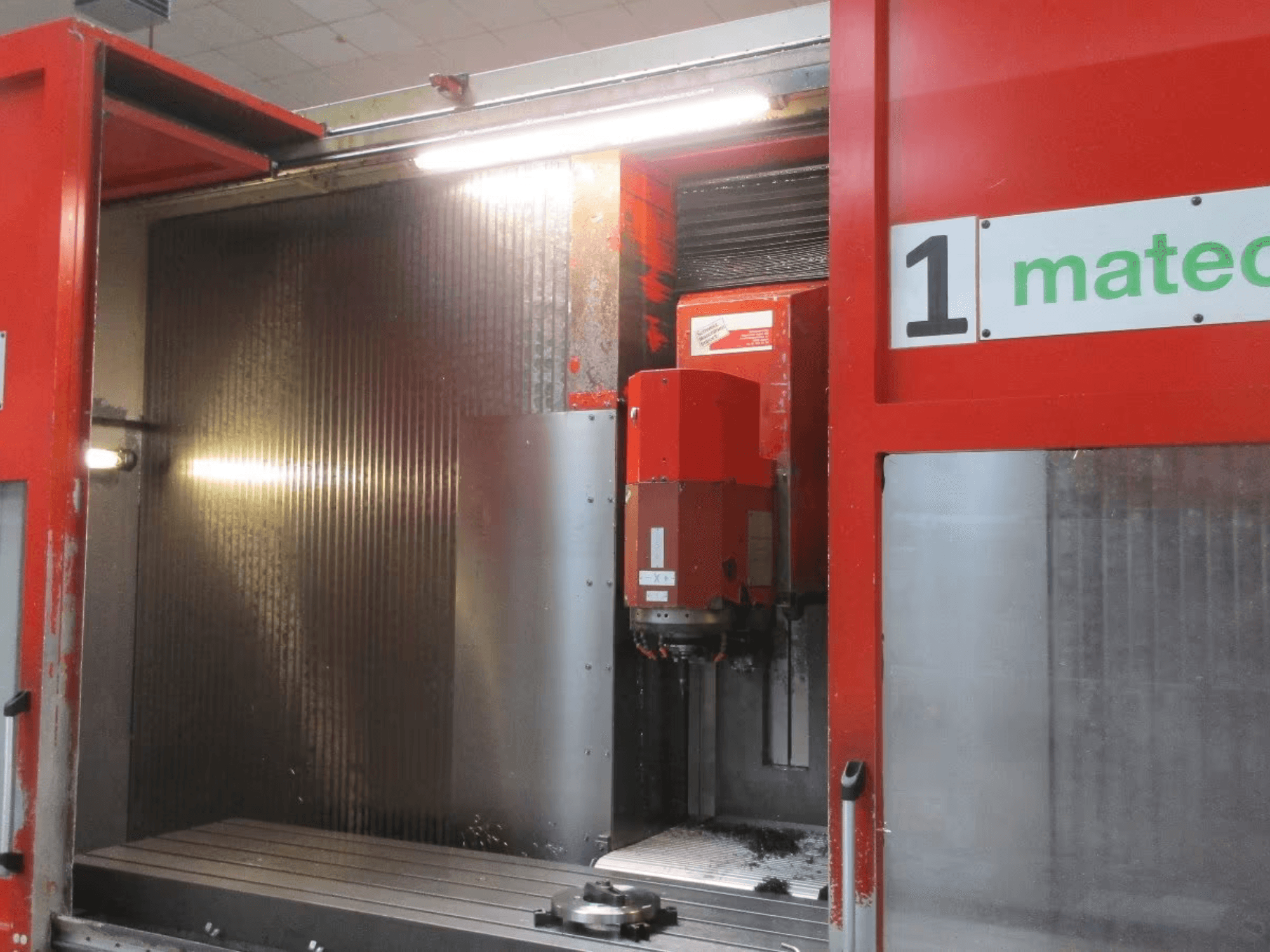

Matec - 30 HV CNCDE-MIL-MAT-1997-00002

Axes travel and speeds

• X-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min

• Y-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min

• Z-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min

Spindle

• Drive power (100% duty cycle): 10 kW from 2000 rpm; torque 48 Nm up to 2000 rpm; approx. 6 Nm at 15,000 rpm (M = P*9550/n)

• Drive power (25% duty cycle): 15 kW from 2000 rpm; torque 72 Nm up to 2000 rpm; approx. 10 Nm at 15,000 rpm (M = P*9550/n)

Coolant: Internal coolant 20 bar

Head: Swivel head with 1° indexing increments

Tooling

• Tool changer: 36 positions

• Max. tool diameter: 130 mm

Work area and clamping

• Max. workpiece length for double-sided end machining: X = 3500 mm − 2 × max. tool length

• Clamping surface: X = 4500 mm (clamping plate length)

• Y = 650 mm (clamping plate length); 7 T-slots, 125 mm spacing

Electrical connection: Total connected load 42 kVA
