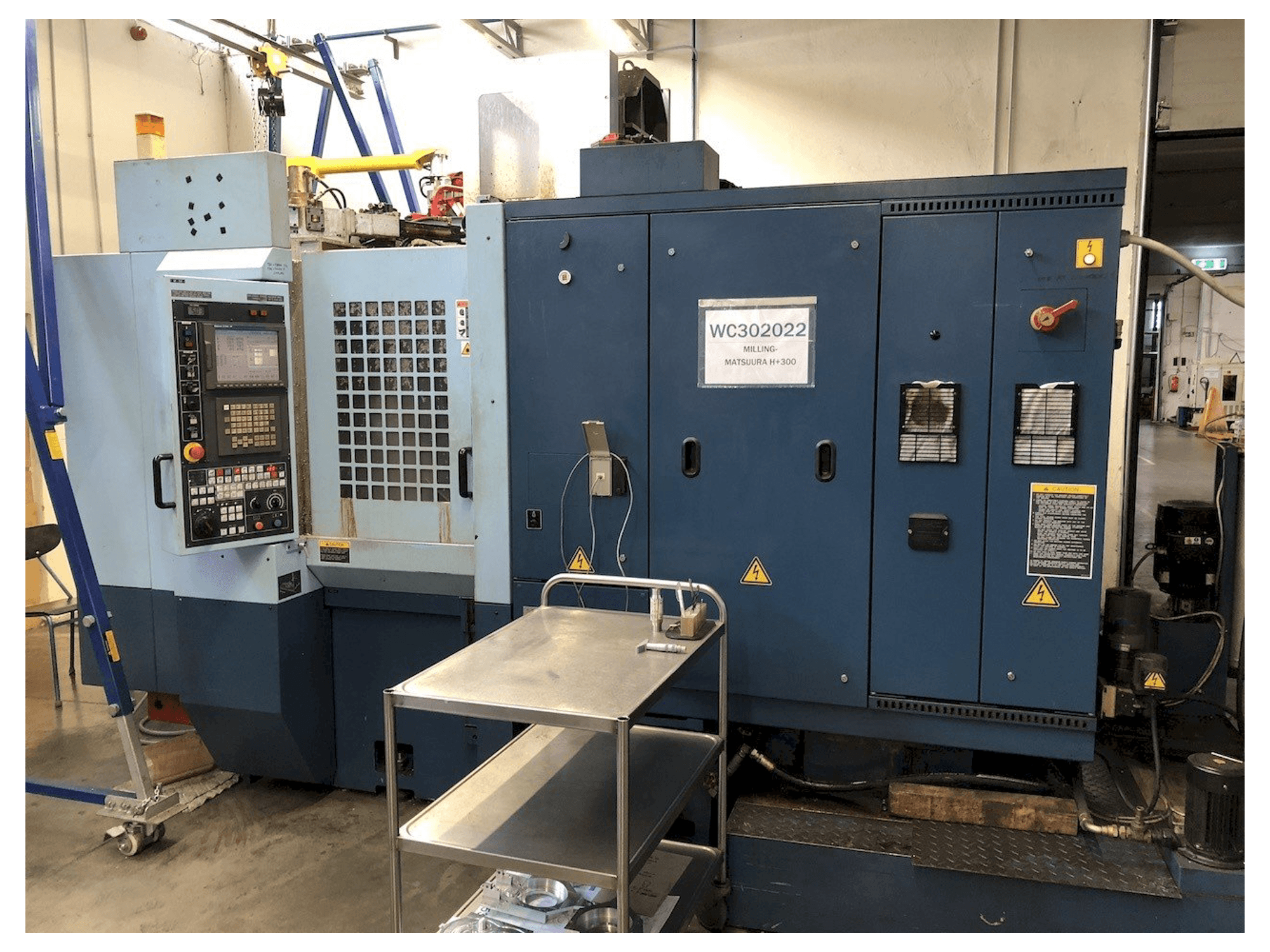

Front view of Matsuura H Plus-300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura H Plus-300

Photo Gallery

Matsuura - H Plus-300EE-MIL-MAT-2004-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Matsuura H Plus-300 Milling Machine

This Matsuura H Plus-300 Milling Machine was manufactured in Japan in 2004. Operated through a control unit of the same brand, this machine counts with a spindle speed range of 50-15000 rpm.

Overview

brand: Matsuura
year: 2004
MODEL: H Plus-300
production hours: 800
application type: Milling
Location: Estonia
machine type: Horizontal Machining Centre
control unit brand: MATSUURA

Technical Information - Matsuura H Plus-300

General Data

Measurements width: 3620 mm
Measurements depth: 1522 mm
Measurements height: 2462 mm
Machine weight: 7000 kg

Control Unit

Brand: MATSUURA

Main drive

Spindle speed range: 50-15000 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 300 mm
Outer width: 300 mm

Tools

Slots in storage: 51
Max weight: 8 kg
Max tool diameter: 150 mm
Max tool length: 300 mm

Media

Main electronic connection: 220 V
Power consumption: 38 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

manipulator Dalmec (upon request)

Machine History

Industries

Telecommunications

Material thickness

3 mm

Material type

Carbon steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
