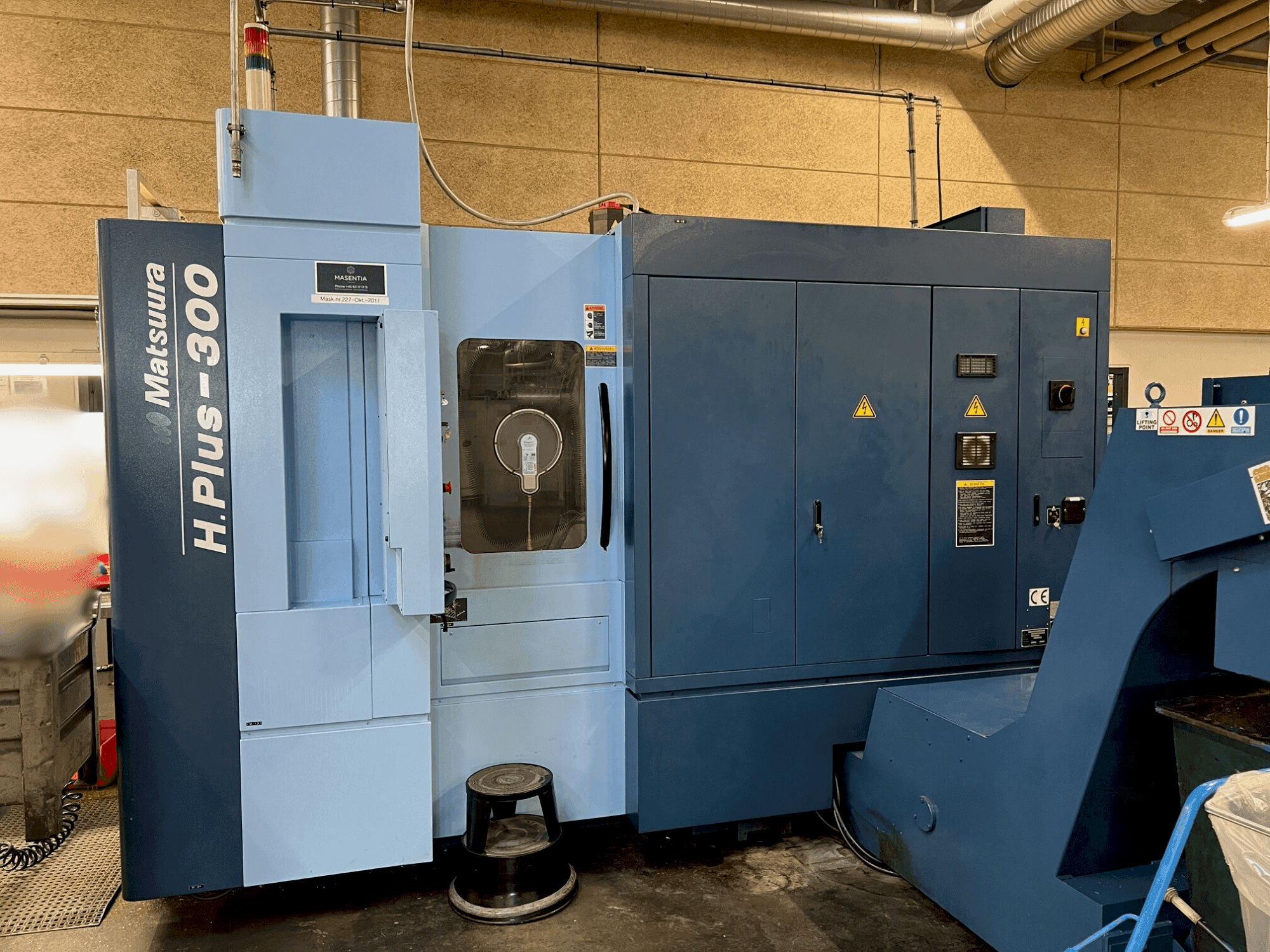

Front view of Matsuura H.PLUS-300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura H.PLUS-300

Photo Gallery

Matsuura - H.PLUS-300DK-MIL-MAT-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matsuura H.PLUS-300 For Sale | gindumac.com

This 4-axis Matsuura H.PLUS-300 horizontal machining center was manufactured in 2011. It features a high-speed spindle capable of 15,000 rpm, a robust 51-tool automatic tool changer, and a dual pallet system for efficient workflow. The machine supports a maximum workpiece weight of 250 kg and offers rapid traverse rates up to 60,000 mm/min. Ideal for precision machining, buy this Matsuura H.PLUS-300 horizontal machining center. Contact us for further details regarding this horizontal machining center.

Overview

brand: Matsuura
year: 2011
MODEL: H.PLUS-300
application type: Milling
Location: Denmark
machine type: Horizontal Machining Centre
control unit brand: MATSUURA

Technical Information - Matsuura H.PLUS-300

Control Unit

Control Brand: MATSUURA
Control Model: G-Tech 18i

Dimensions

Table Length: 300 mm
Table Load: 250 kg
Table Width: 300 mm

Movement

X-axis Travel: 500 mm
Y-axis Travel: 560 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 15000 RPM

Additional Information

Additional equipment

Linear guides
Ultra-precision ball screws for feed movements
Chip flow system
Coolant unit
Synchronized tapping
Hydraulic unit
Spindle oil cooler
Machine mounts

Machine Benefits

Technical Machine Benefits

Automatic tool changer with 51 tools
Automatic pallet changer with 2 pallets
Linear guides
Ultra-precision ball screws for feed movements
Work light
Total enclosure
Rapid traverse rates up to 60,000 mm/min
Spindle torque: 95. 4 nm at 1500 rpm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
