- Used MATSUURA MAM72-25V - 2004 - Vertical center for sale | gindumac.com

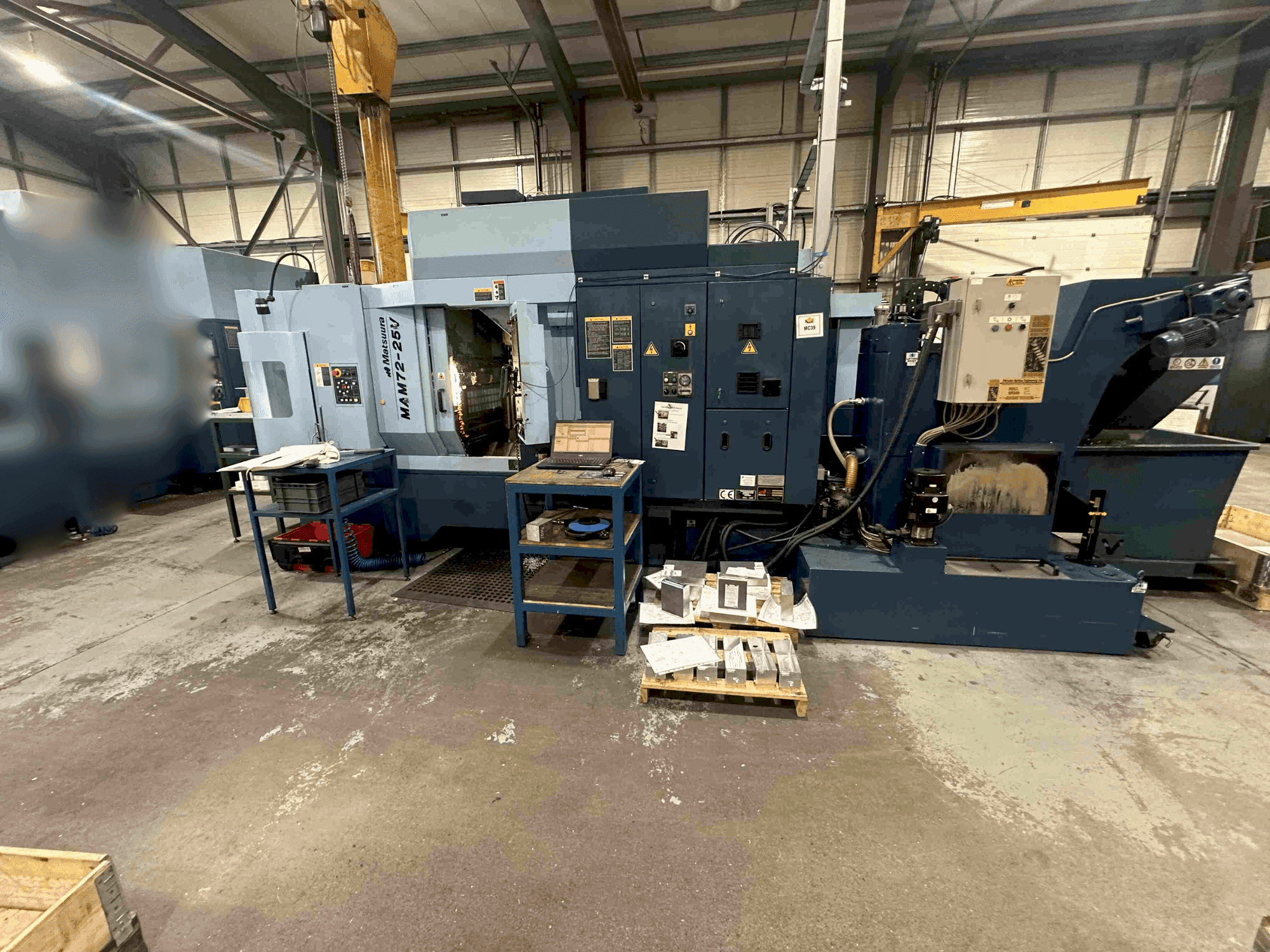

This 5-axis Matsuura MAM72-25V vertical machining center, manufactured in 2004, is equipped with state-of-the-art features for complex and precise machining. It boasts a Matsuura G-Tech 30i control unit with simultaneous axis operation, allowing detailed control in multiple planes. The spindle offers speeds up to 20,000 rpm, and the extensive travel range includes 550mm on the X-axis, 410mm on the Y-axis, and 450mm on the Z-axis. The multi-directional B and C axes provide additional flexibility for complex shapes. The 10 station APC and 240T ATC enhance efficiency. Consider the Matsuura MAM72-25V machine we have for sale. Reach out for further details regarding this vertical machining center.
Overview
- brand: Matsuura
- year: 2004
- MODEL: MAM72-25V
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: MATSUURA
Technical Information - Matsuura MAM72-25V
General Data
- Measurements width: 3032 MM
- Measurements depth: 5120 MM
- Measurements height: 2705 MM
Control Unit
- Model: G-Tech 30i
- Brand: MATSUURA
Main drive
- Spindle speed range: 20000 1/MIN
- Tool taper: BT40
- Number of axis: 5
Movement
- X-AXIS Movement: 550 mm
- Y-AXIS Movement: 410 mm
- Z-AXIS Movement: 450 mm
- B-AXIS Movement: +/-220 degrees MM
- C-AXIS Movement: 360 degrees360 degrees MM
Workpiece
- Workpiece drm: maximum 300 mm
- Workpiece weight: maximum 40 kg
Tools
- Max weight: 10 kg
- Max tool diameter: 150 mm
- Max tool length: 300 mm
Media
- Power consumption: 32 kVA
- Internal cooling: Yes
Additional Equipment
- - 10 Station APC (Automatic Pallet Changer)
- - 240T ATC (Automatic Tool Changer)
- - 20 Bar High-Pressure Coolant
- - FSE Swarf Management
- - Chip Conveyor
Additional Information
- Technical Machine Benefits:
- - High spindle speed, advanced control unit, simultaneous axis operation
- - Number of tools: 240 (240t atc)
- - Ikz: yes (20 bar hp coolant)
- Qualitative Machine Benefits:
- - Enhanced swarf management system and high-pressure coolant contribute to extended tool life and improved surface finish.
- - The capability of handling complex geometries with b-axis of +/-220 degrees and c-axis of 360 degrees for versatile machining operations.
- - Machine still under power.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
