Mazak CV5-500
Mazak - CV5-500
2021
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Mazak CV5-500 Vertical Machining center

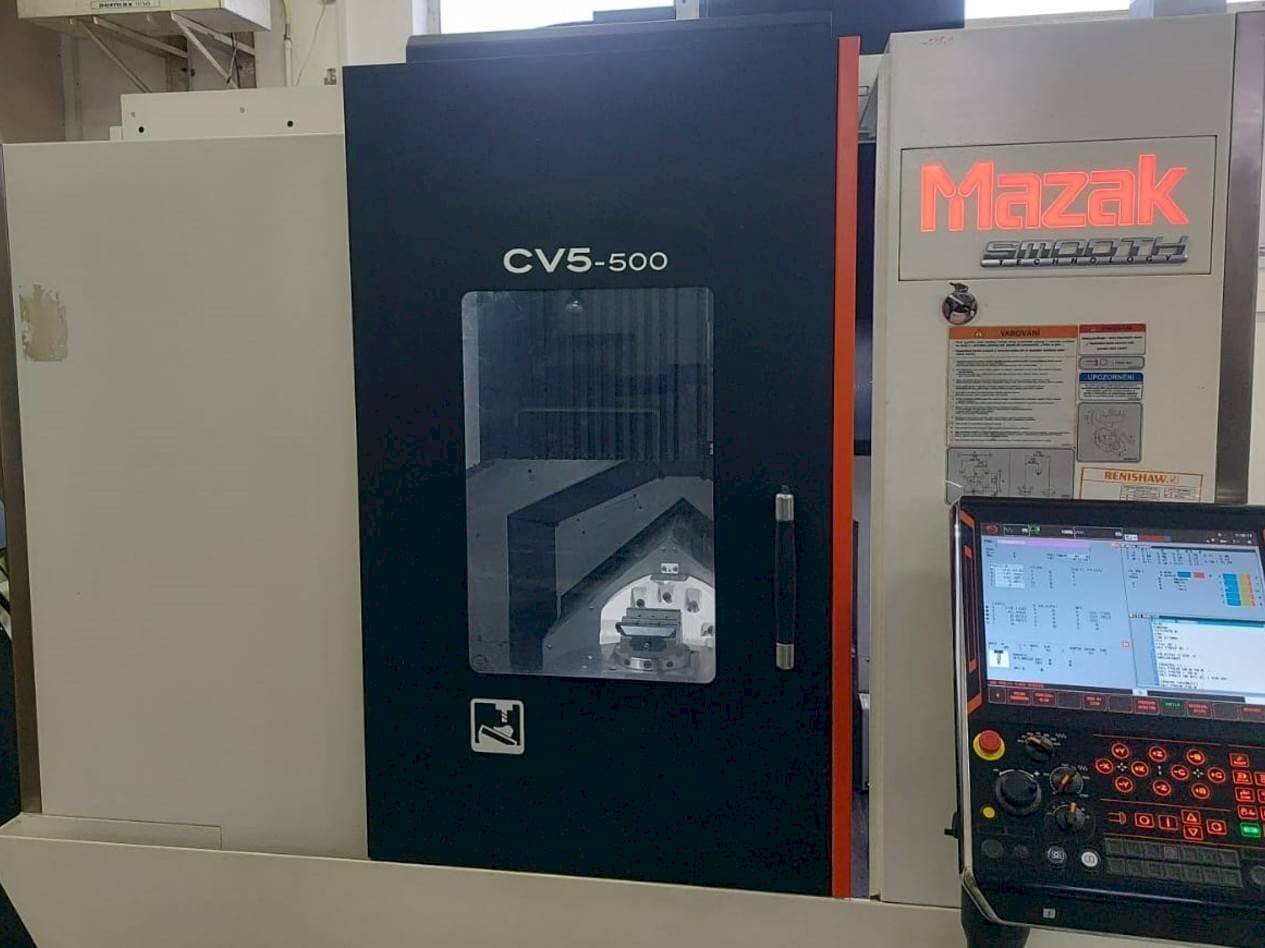

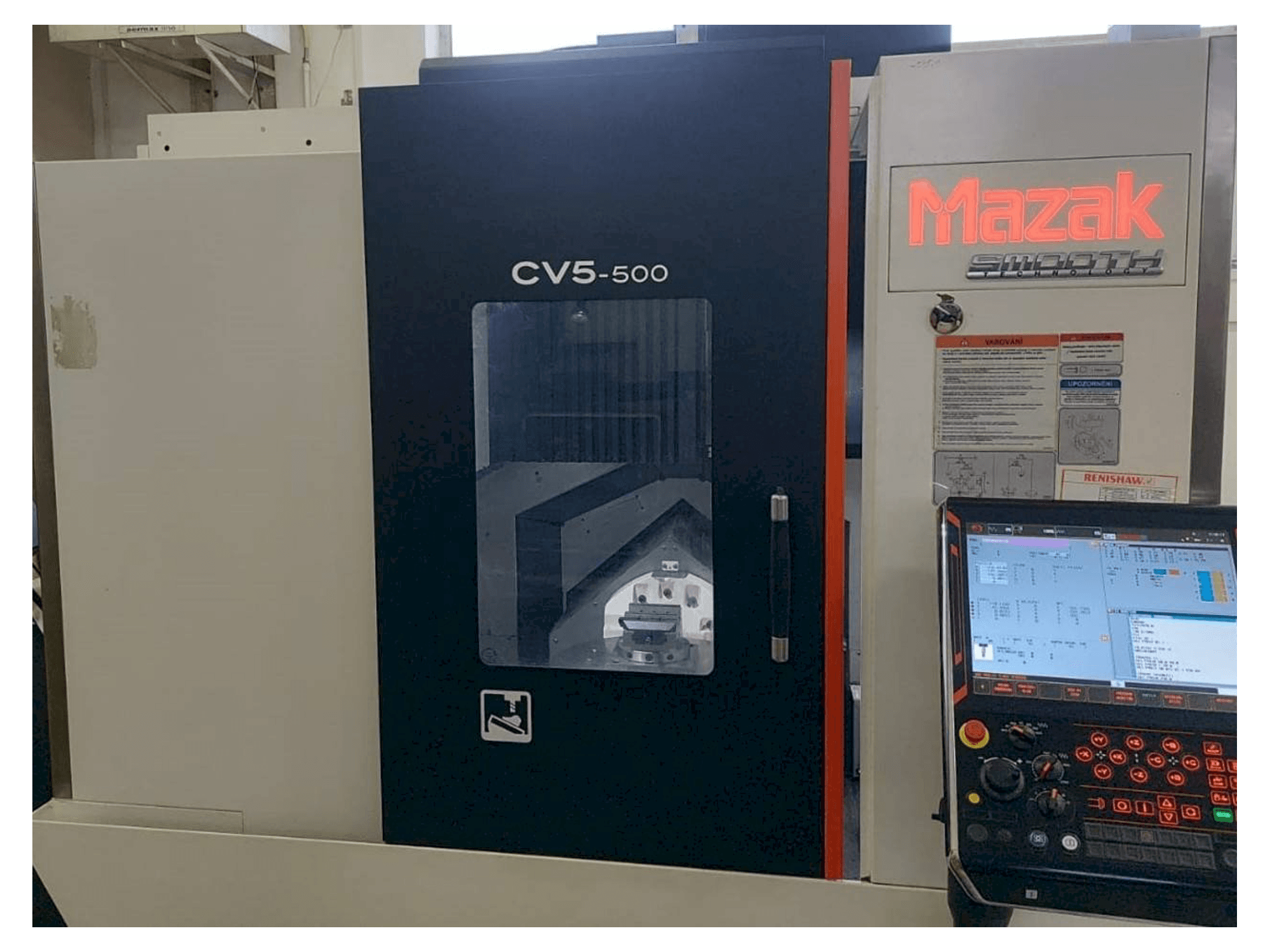

This Mazak CV5-500 Vertical Machining Center was manufactured in the year 2021 in Japan and has 5261 production hours, of which 3015 are spindle hours. It is equipped with a Mazak SmoothX control unit and has 5 axis. The machine has a spindle speed of 12000 rpm, is in good condition and well maintained.
Overview
- brand: Mazak
- year: 2021
- MODEL: CV5-500
- production hours: 5261
- application type: Milling
- Location: Slovakia
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Mazak
- GINDUMAC ID: SK-MIL-MAZ-2021-00001
Technical Information
General Data
- Measurements width: 2300 mm
- Measurements depth: 2984 mm
- Measurements height: 2933 mm
- Machine weight: 6780 kg
Control Unit
- Brand: Mazak
- Model: SmoothX
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 730 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 470 mm
Workpiece
- Workpiece drm: 500 mm
- Workpiece weight: 200 kg
Table
- Outer length: 500 mm
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool diameter: 80/125 mm
- Max tool length: 300 mm
- Type of tool holder: SK40
Media
- Power consumption: 52.05 kVa
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Maximum workpiece diameter 500 mm
- - Maximum workpiece height: 320 mm
- - B-axis (table tilt) travel amount/indexing 0. 0001° 220° (±110°)
- - C-axis (table rotation) travel amount/indexing 0. 0001° 360°
- - Rapid traverse rate (x/y/z): 36 m/min.
- - Rapid traverse rate (b/c): 30 min-1
- - Distance spindle nose to table center (table vertical) max 565 mm
- - Main output (ac inverter motor) 10% ed rating 18,5 kw
- - Renishaw tool and workpiece probes (measurement pack 2)
- - High-pressure cooling
- Qualitative Machine Benefits:
- - Very good condition!
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
