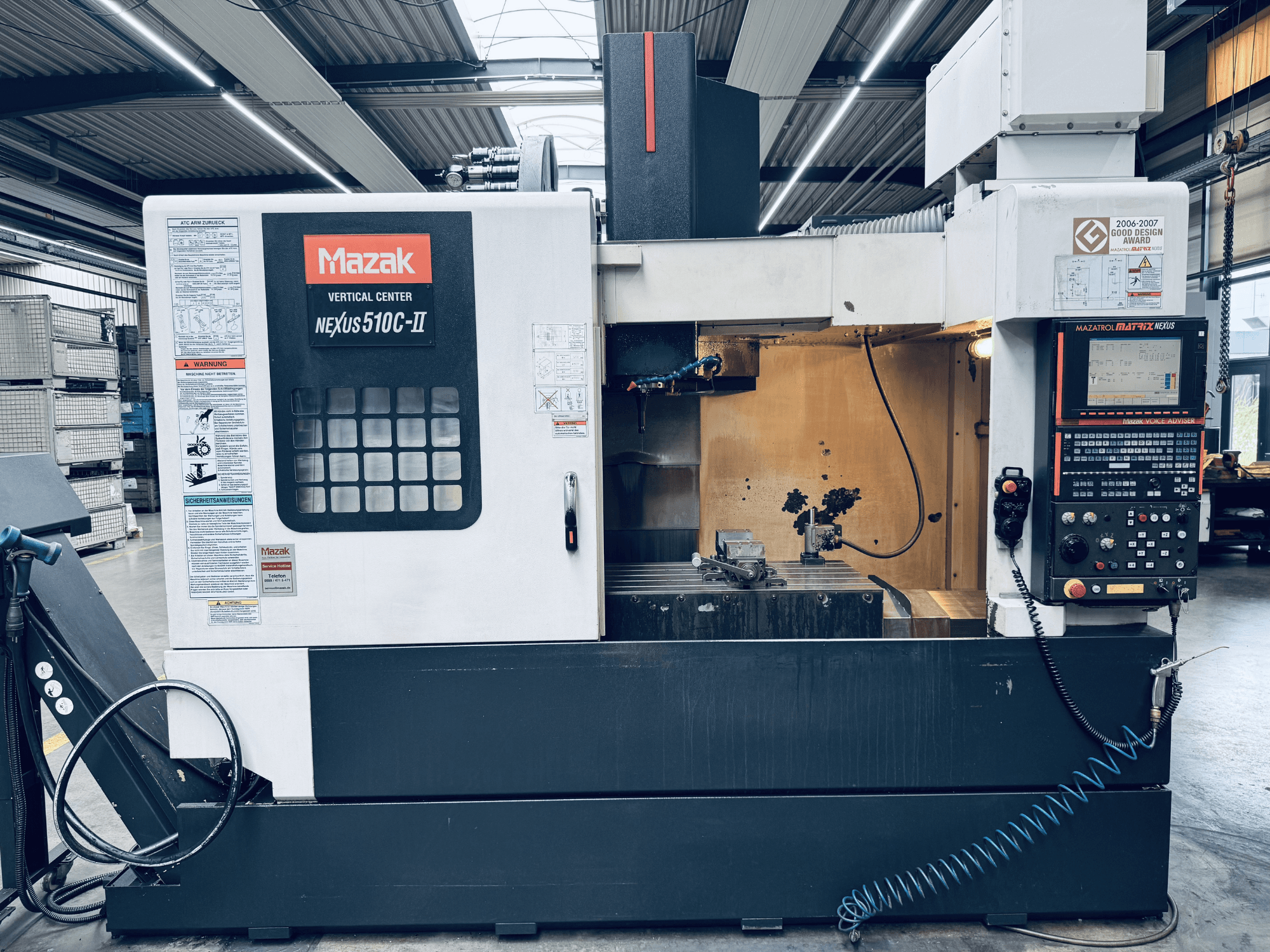

Mazak - Vertical Center Nexus 510C-IIDE-MIL-MAZ-2008-00006

- Control System: Mazatrol Matrix Nexus (with Mazak Voice Adviser)

- Axis Travel X/Y/Z: 1050 / 510 / 510 mm

- Table Dimensions: 1300 x 550 mm

- Maximum Table Load: 1200 kg

- Spindle Speed: Up to 12000 rpm

- Spindle Details: Completely renewed in September 2025 by Mazak factory service (original replacement spindle cartridge, high-precision version, clamping force 10.1 kN, runout 0.002-0.005 mm)

- Tool Taper: SK 40 / BT 40

- Tool Magazine Capacity: 30 stations

- Tool Changer Type: Double gripper changer

- Rapid Traverse Rate: Up to 42 m/min

- Total Power-On Time: 46722 hours (as of 07.07.2026)

- Automatic Operation Time: 17776 hours

- Cutting Time: 15817 hours

- Pure Cutting Time: 13169 hours

- Weight: Approx. 6920 kg

- Power Supply: 3AC 380 V, 50/60 Hz, approx. 33.8 kVA

- Control Circuit: AC100V, DC24V

- Main Motor: Max. 47 A, 400 V

- Included Accessories / Components:

* Chip conveyor (chain conveyor) with discharge to chip container

* Donaldson Torit DCE oil mist separator

* Portable electronic handwheel

* Coolant system with spray gun / compressed air gun

* Machine vise (NC vise)

* Approx. 100 SK 40 tool holders

* Tilting chip container (green cart)

* Worklight / interior lighting

* Full enclosure

- Renewed parts during 09/2025 service: Spindle cartridge, rotary joint, non-return valves, filters for air/lubricating oil, oil mist separator element
