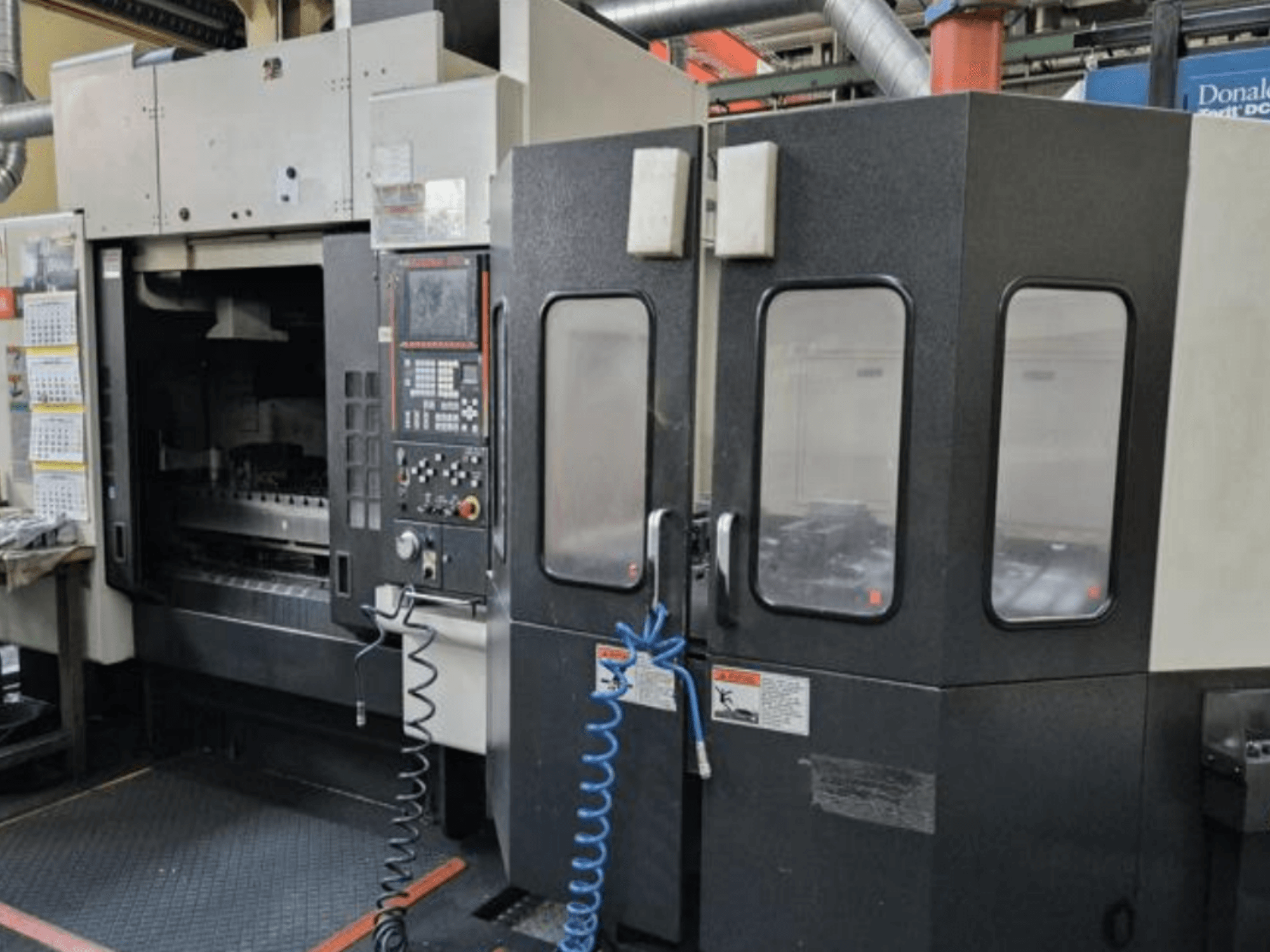

This 5-axis Mazak V515/40N was manufactured in 2006. It features a maximum workpiece dimension of 1,300 mm x 550 mm x 680 mm and a robust table size of 1,300 mm x 550 mm with a maximum table load of 1,500 kg. The machine offers a rapid traverse rate of 26 m/min in X/Y and 20 m/min in Z. If you are looking to get high-quality milling capabilities, consider the Mazak V515/40N vertical machining centre. Contact us for further details.
Overview
- brand: Mazak
- year: 2006
- MODEL: V515/40N
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak V515/40N
Control Unit
- Control Brand: MAZATROL
- Control Model: 640M
Dimensions
- Machine Height: 2823 mm
- Machine Length: 3436 mm
- Machine Weight: 8900 kg
- Machine Width: 3160 mm
- Table Load: 1500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1050 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 560 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Spindle Power: 18.5 kW
- Spindle Speed: 6000 RPM
Additional Information
Milling capacity in S45 (JIS): 634 cm³/min
Drilling capacity in S45 (JIS): 50 mm
Table Size: 1,300 mm x 550 mm
Table Configuration: 5 T-slots, 100 mm distance, 18 mm reference groove
Table Height from Floor: 800 mm
Spindle Nose to Table: 200 mm - 760 mm
Spindle Center to Column: 525 mm
Rapid Traverse (X/Y): 26 m/min
Rapid Traverse (Z): 20 m/min
Feed Rate (X/Y/Z): 8 m/min
Min Spindle Speed: 25 rpm
Max Torque: 758 Nm
Max Tool Diameter: 125 mm (adjacent occupied) / 260 mm (adjacent free)
Max Tool Length: 400 mm
Chip-to-Chip Time: 5.5 s
Coolant Tank Capacity: 200 L
Coolant Pump Power: 0.75 kW
Connected Load (30 min/100%): 41.2 KVA / 36.2 KVA
Compressed Air Supply: 5 kg/cm², 200 L/min
Additional equipment
Extraction System: Donaldson Torit DCE
Chip Conveyor: Mayfran
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
