Mazak FJV-35/60
Mazak - FJV-35/60
2003
72,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MAZAK FJV-35/60 Vertical Machining center

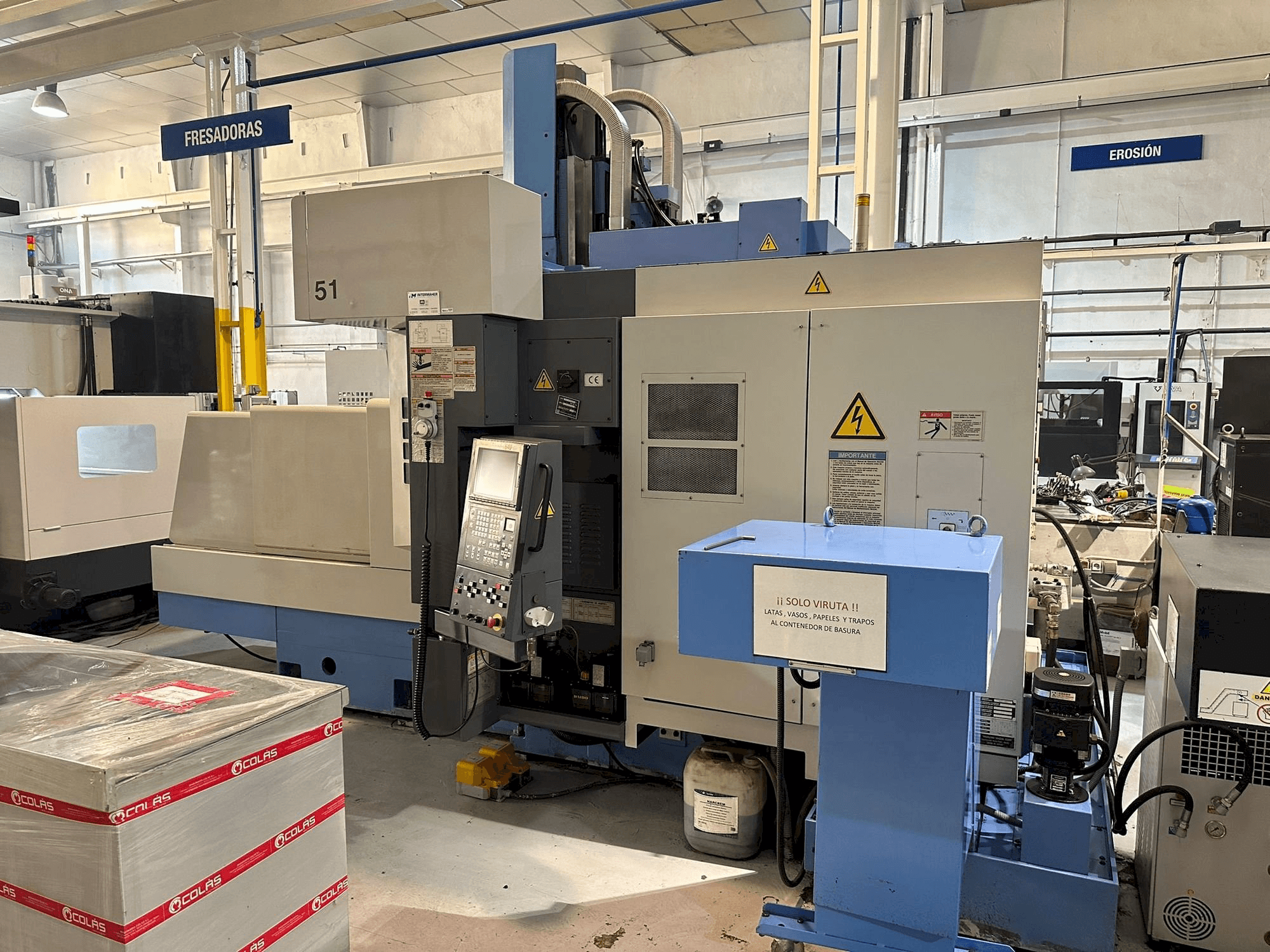

This MAZAK FJV-35/60 Vertical Machining center was manufactured in the year 2003. It is equipped with a MAZATROL PC-FUSION-CNC 640 M control unit. The machine has a spindle speed of 40-10000 rpm.
Overview
- brand: Mazak
- year: 2003
- MODEL: FJV-35/60
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Mazatrol
- GINDUMAC ID: ES-MIL-MAZ-2003-00003
Technical Information
General Data
- Measurements width: 62800 mm
- Measurements depth: 3274 mm
- Measurements height: 3510 mm
- Machine weight: 14500 kg
Control Unit
- Brand: Mazatrol
- Model: PC-FUSION-CNC 640 M
Main drive
- Spindle speed range: 40-10000 1/MIN
- Spindle motor power: 59,40 kW
Movement
- X-AXIS Movement: 2000mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 585 mm
Table
- Outer length: 2240 mm
- Outer width: 750 mm
- Height adjustment: 830 mm
- Number of tslots: 5x18 mm
- Distance between: 150 mm
- Max distance between vertical spindle and table: 880 mm
- Table load: 3000 kg
Tools
- Max weight: 20 kg
- Max tool diameter: 210 mm
- Max tool length: 380 mm
- Type of tool holder: CAT-50
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
