Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Mazak - Integrex 400-IVGB-TUR-MAZ-2011-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- Mazak Integrex 400-IV Lathe

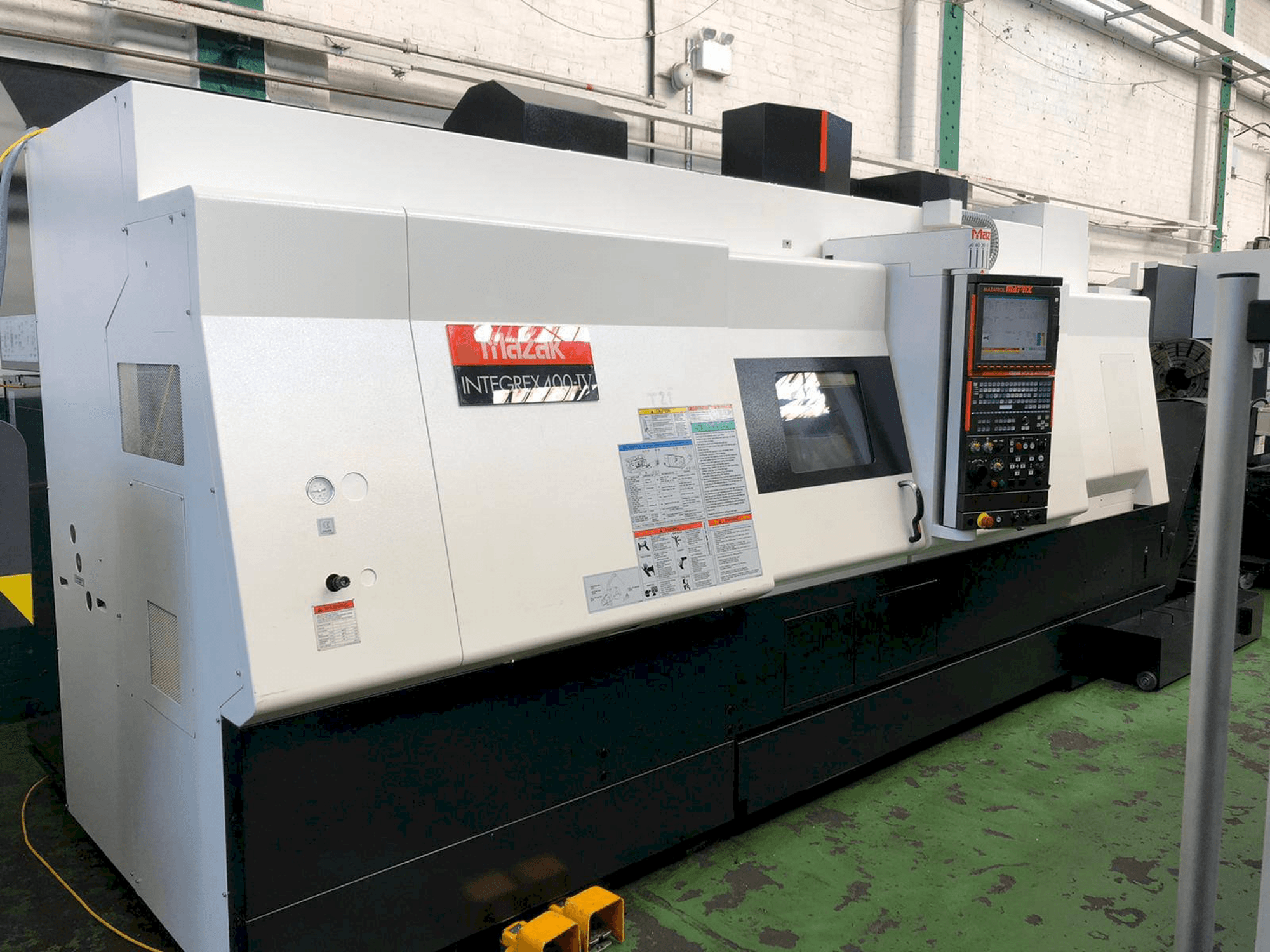

This Mazak Integrex 400-IV Lathe was built in 2011 in Japan. Equipped with a Mazatrol Matrix Control unit, this machine can work with a spindle speed range of 35 – 3300 rpm.
Overview
- brand: Mazak
- year: 2011
- MODEL: Integrex 400-IV
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: MAZATROL
Technical Information - Mazak Integrex 400-IV
Control Unit
- Model: Mazatrol Matrix
- Brand: MAZATROL
Main drive
- Number of spindles: 1
- Spindle speed range: 35 – 3300 1/MIN
- Spindle motor power: 30 kW
Movement
- X-AXIS Movement: 630 mm
- X-AXIS Rapid traverse: 38m/min
- Y-AXIS Movement: 230 mm
- Y-AXIS Rapid traverse: 26m/min
- Z-AXIS Movement: 1585 mm
- Z-AXIS Rapid traverse: 38m/min
- W-Axis Rapid traverse: 6m/min
Workpiece
- Workpiece weight: 1000 kg
Tools
- Slots in storage: 40
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Swing over bed 760 mm
- - Maximum cutting length 1524 mm
- - Maximum weight in chuck 650 kgs
- - Milling head: single spindle to accommodate capto tooling
- - Milling speeds 15-12,000 rpm
- - Spindle thru hole dia. 112mm
- - Kitagawa b-21215x 15” dia. 3 jaw powered chuck
- - Coolant tank capacity 444 litres
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
