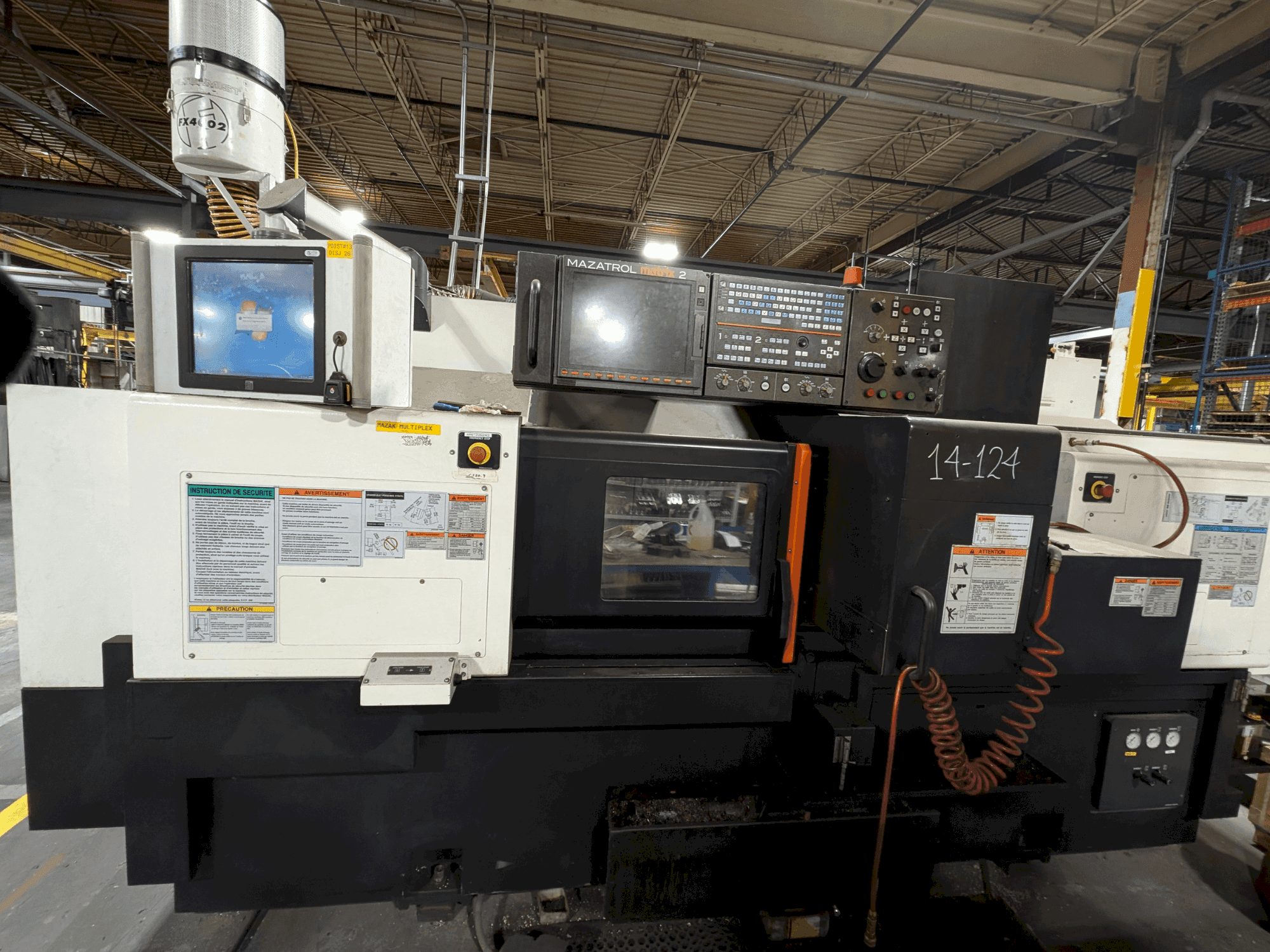

Front view of Mazak Multiplex 6300-II Y  machine

Mazak - Multiplex 6300-II YCA-TUR-MAZ-2012-00001

160,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Mazak Multiplex 6300-II Y was manufactured in 2012, offering robust capabilities for horizontal turning. Ideal for precision machining, this used machine maintains a solid performance record. Consider the opportunity to buy this Mazak Multiplex 6300-II Y horizontal turning machine. Contact us for more information about this machine.

Overview

  • brand: Mazak
  • year: 2012
  • MODEL: Multiplex 6300-II Y
  • application type: Turning
  • Location: Canada
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: MAZATROL

Technical Information - Mazak Multiplex 6300-II Y

General Data

  • Measurements width: 1000 mm
  • Measurements depth: 1700 mm
  • Measurements height: 870 mm
  • Machine weight: 11974 kg

Control Unit

  • Brand: MAZATROL

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4000 RPM 1/MIN
  • Spindle motor power: 30 HP
  • Spindle bore: 87,884 mm
  • Number of axis: 3

Movement

  • X-AXIS Movement: 309.88 MM
  • X-AXIS Rapid traverse: 945 IPM
  • Y-AXIS Movement: 76.2 mm
  • Z-AXIS Movement: 605.028 mm
  • Z-AXIS Rapid traverse: 945 IPM

Turret

  • Number of turrets: 2
  • Rotating tools: Yes

Tools

  • Number of stations: 12

    Additional Equipment

    • - Max Cutting Length (Chucker): 225 mm
    • - Max Distance Between Spindle Faces: 1450 mm
    • - Min Distance Between Spindle Faces: 249.42mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max turning diameter: 430. 02mm
        • - Max turning length: 650. 24 mm
        • - Max swing: 430. 022 mm
        • - Standard cutting diameter: 330. 2 mm
        • - Chuck size: 254 mm
        • - Rotary tool available positions: 12 per turret
        • - Spindle nose: a2-8
        • - Bar capacity: 76mm
        • - Spindle indexing (c axis): 0. 001 degrees
        • - Mill spindle speed: 4000 rpm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
