Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Mazak - Smart 530CGB-MIL-MAZ-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak Smart 530C Vertical Machining Center

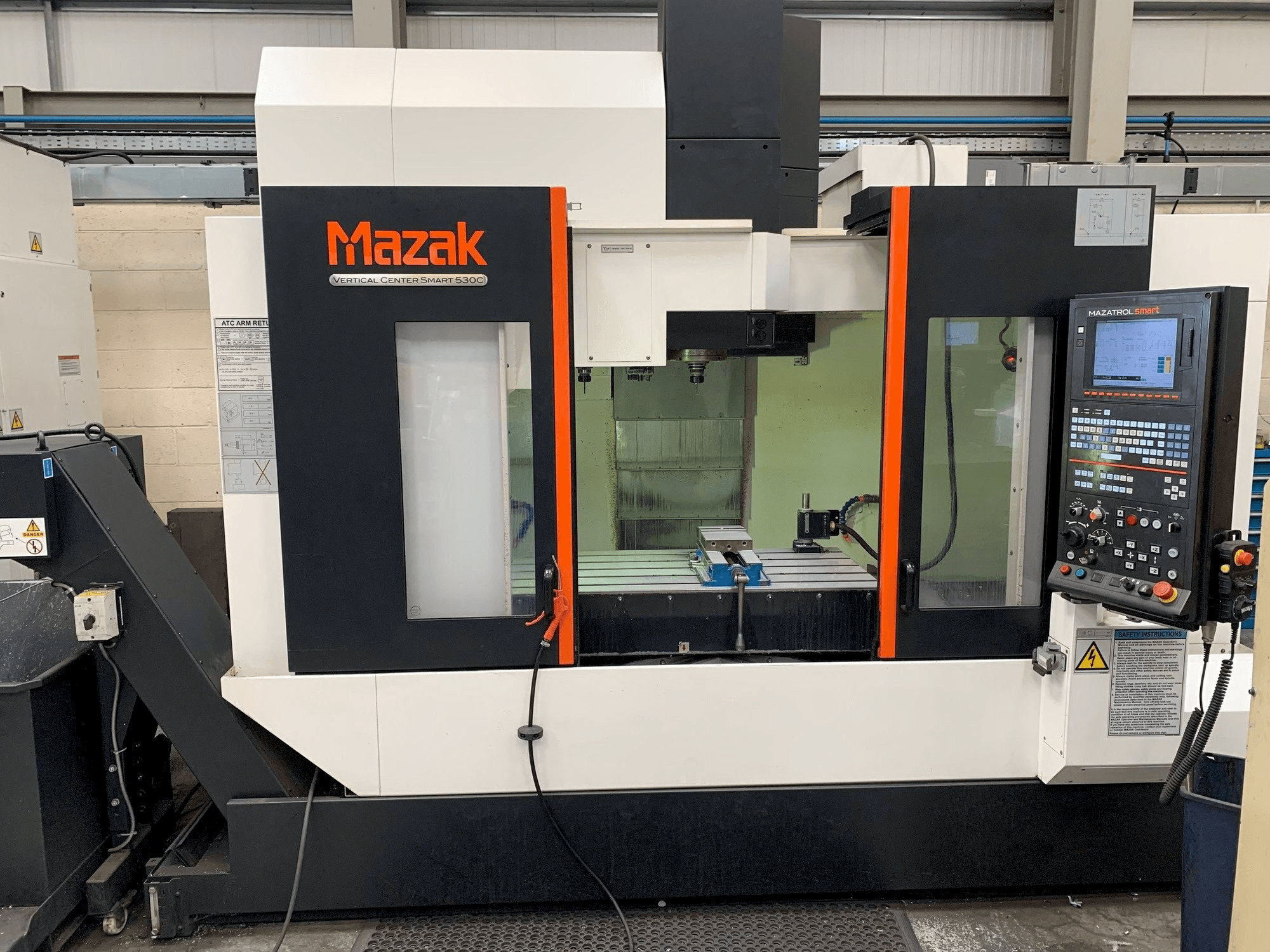

This Mazak Smart 530C Vertical Machining Center from 2014 was built in the United Kingdom. It has been operative for 10830 production hours since then. With a Mazak Mazatrol Smart control unit. This machine can work with a spindle speed range up to 12000 rpm. It is in very good conditions.
Overview
- brand: Mazak
- year: 2014
- MODEL: Smart 530C
- production hours: 10830
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak Smart 530C
Control Unit
- Control Brand: MAZATROL
- Control Model: Mazatrol Smart
Dimensions
- Machine Depth: 2819 mm
- Machine Height: 2870 mm
- Machine Weight: 6800 kg
- Table Length: 1300 mm
- Table Width: 550 mm
Movement
- X-axis Travel: 1050 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 510 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good conditions
Technical Machine Benefits
- Tool breakage sensor
- Interlocked guards
- Coolant
- Low volt light
- Rapid feedrates x y z: 42 m/min
- Max & min distance table-spindle 150 - 660 mm
- Cooling thru spindle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
