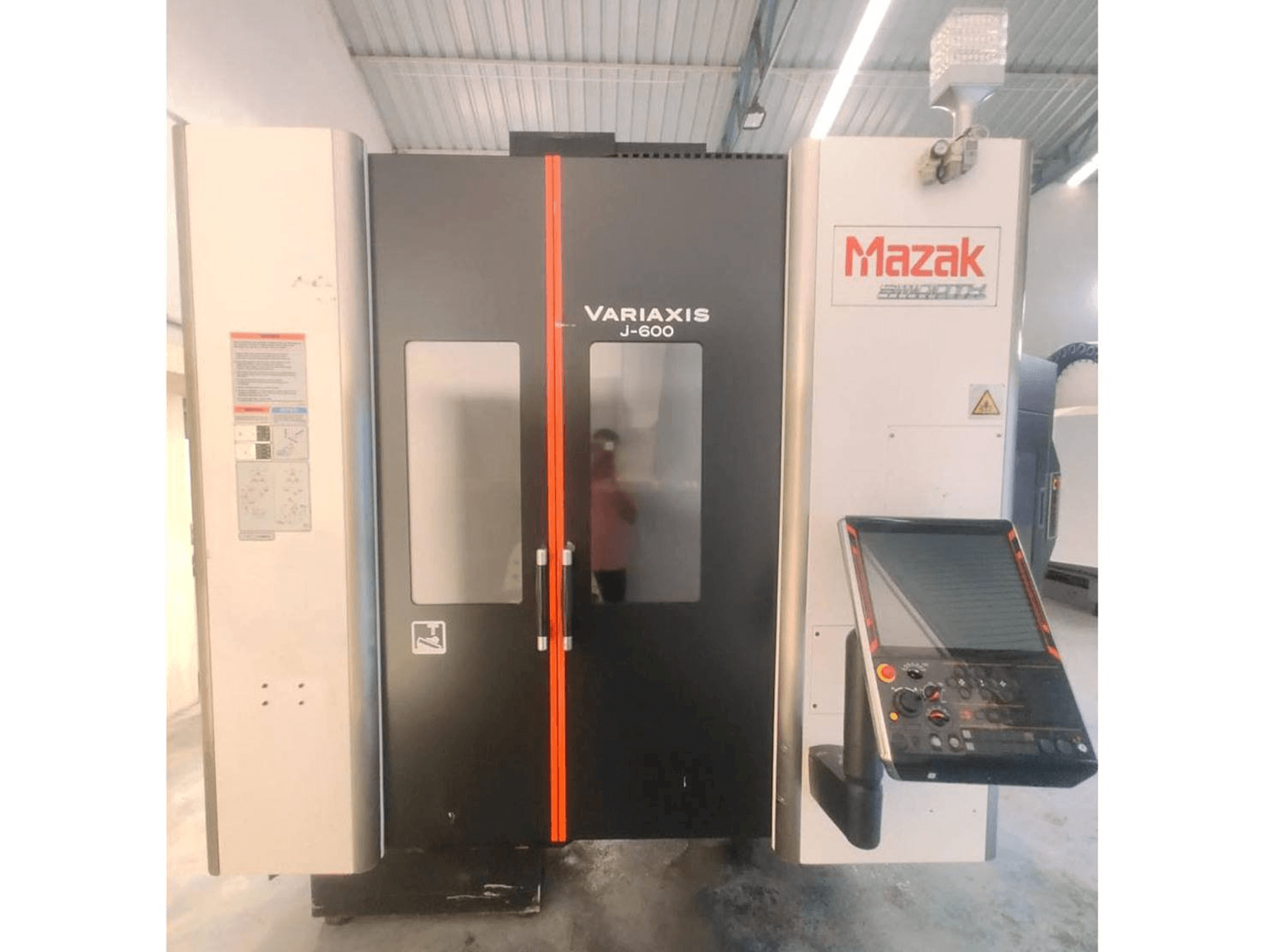

Front view of Mazak Variaxis J-600 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak VARIAXIS J-600

Photo Gallery

Mazak - VARIAXIS J-600IN-MIL-MAZ-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak VARIAXIS J-600

This Mazak VARIAXIS J-600 Vertical Machining Center was manufactured in 2017. This 5 axis machine has a record of 14433 hours, of which 4772 are auto operational time and 4574 are auto cutting time. It stands out for its spindle speed range 35-12000 rpm and its table diameter 600 x 500 mm. It has internal cooling 25 bar.

Overview

brand: Mazak
year: 2017
MODEL: VARIAXIS J-600
production hours: 14433
application type: Milling
Location: India
machine type: Vertical Machining Centre

Technical Information - Mazak VARIAXIS J-600

Dimensions

Machine Depth: 3325 mm
Machine Height: 3060 mm
Machine Weight: 11000 kg
Table Length: 600 mm
Table Load: 500 kg
Table Width: 500 mm

Movement

Number of Axes: 5
X-axis Travel: 850 mm
Y-axis Travel: 550 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle with chiller unit; 4 + 1 axis simultaneously
B axis travel -120 º to +90º; c axis travel +- 360º
B/c axis rapid traverse y cutting feed 10800 º/min
30 tool atc; coolant through spindle (25 bar)
Distance between spindle nose and top of the table: 70 to 580 mm
Distance between spindle nose and center of the table: 20 to 530 mm
Job possibility diameter 730 mm x 450 mm height
X/y/z cutting feed: 30000 mm/min
Magazine capacity 30 tools
Has internal cooling 25 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
