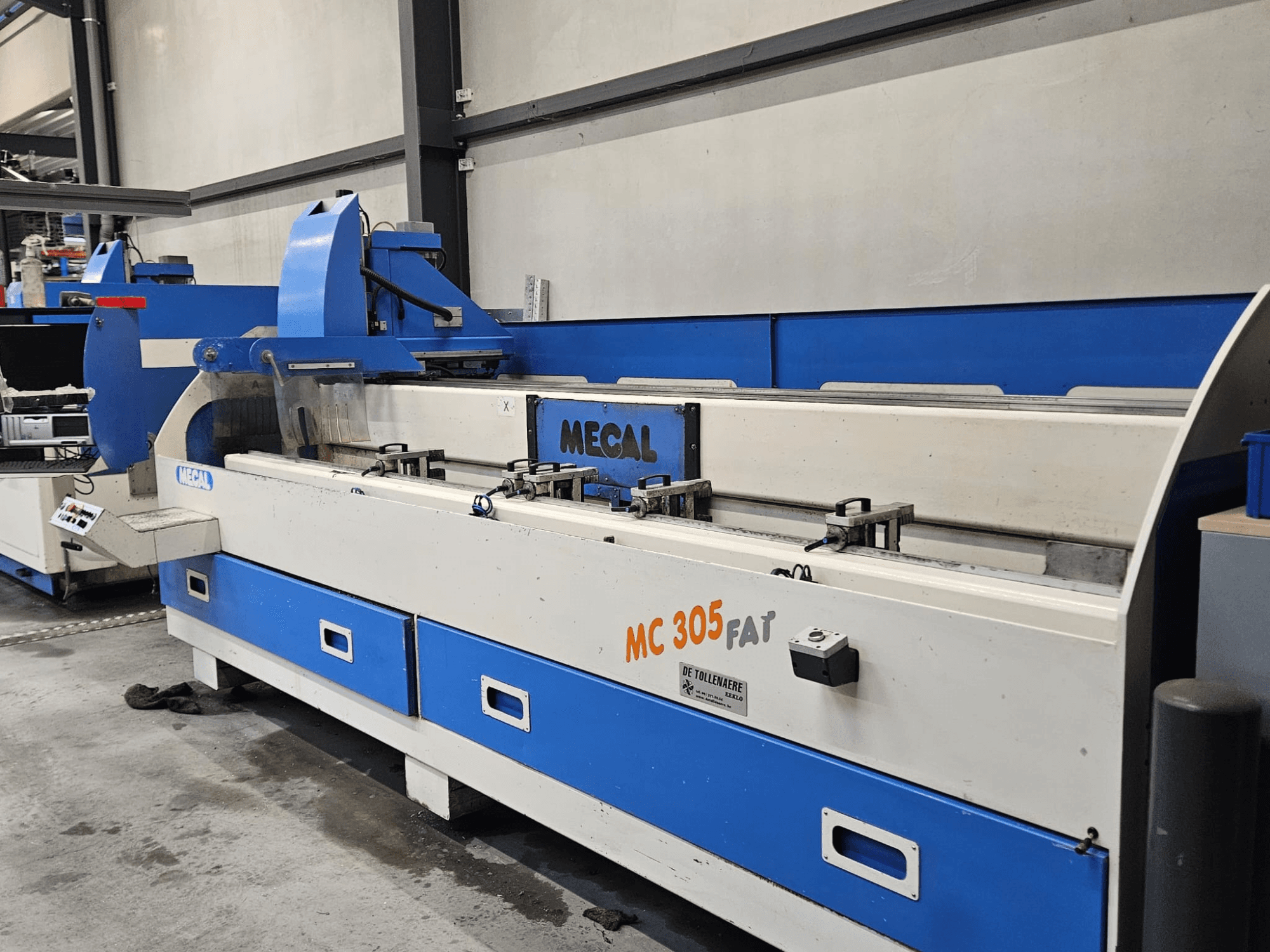

This 4-axis MECAL MC 305 vertical machining centre was manufactured in 2004. It features a powerful 5.5 kW electric spindle, air-cooled, with a maximum speed of 18,000 RPM and an ISO30 tool holder. The tool magazine is centrally located, protected, and supports various tools. It has a standard workpiece length up to 4000 mm and an extended range up to 8000 mm. Contact us for more information about this machine.
Overview
- brand: MECAL
- year: 2004
- MODEL: MC 305
- application type: Milling
- Location: Belgium
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - MECAL MC 305
Movement
- Number of Axes: 4
- X-axis Travel: 3425 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
A (rotation): ±125°
Spindle Type: Electric, air-cooled
Tool magazine:
Located in the middle of the machine base in a protected area
Accommodates various tools: milling cutters, taps, end mills, angle heads
Construction:
Welded steel structure for maximum rigidity
Linear guides with ball screws
Automatic central lubrication of guides and screws
Cooling: Centralized minimum lubrication system (MQL)
Working range:
Standard workpiece length: up to 4000 mm
Extended range (differential cycle): up to 8000 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
