Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
MEP - TIGER 370 CNC - LRDE-SAW-MEP-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MEP TIGER 370 CNC - LR Sawing machine

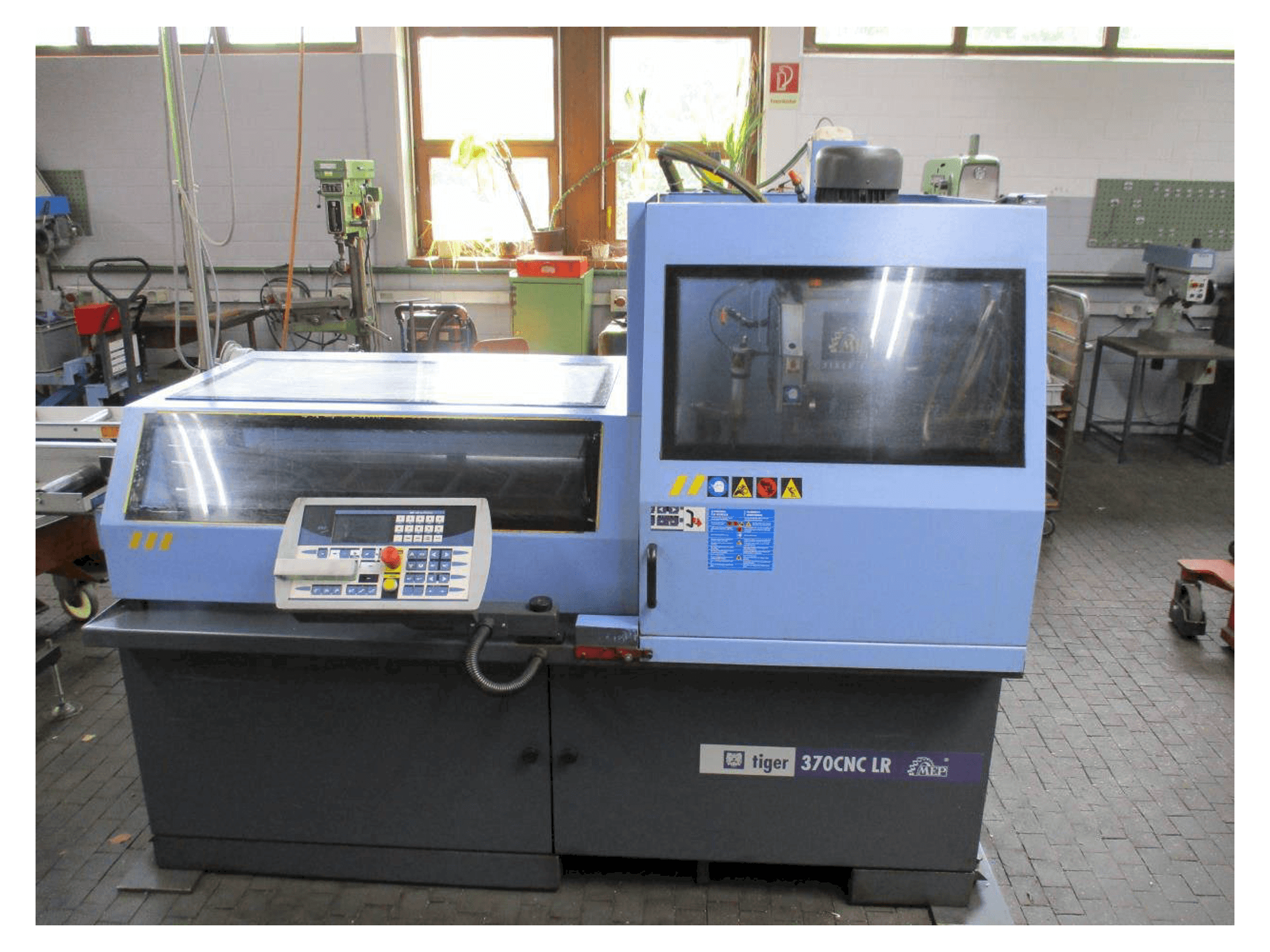

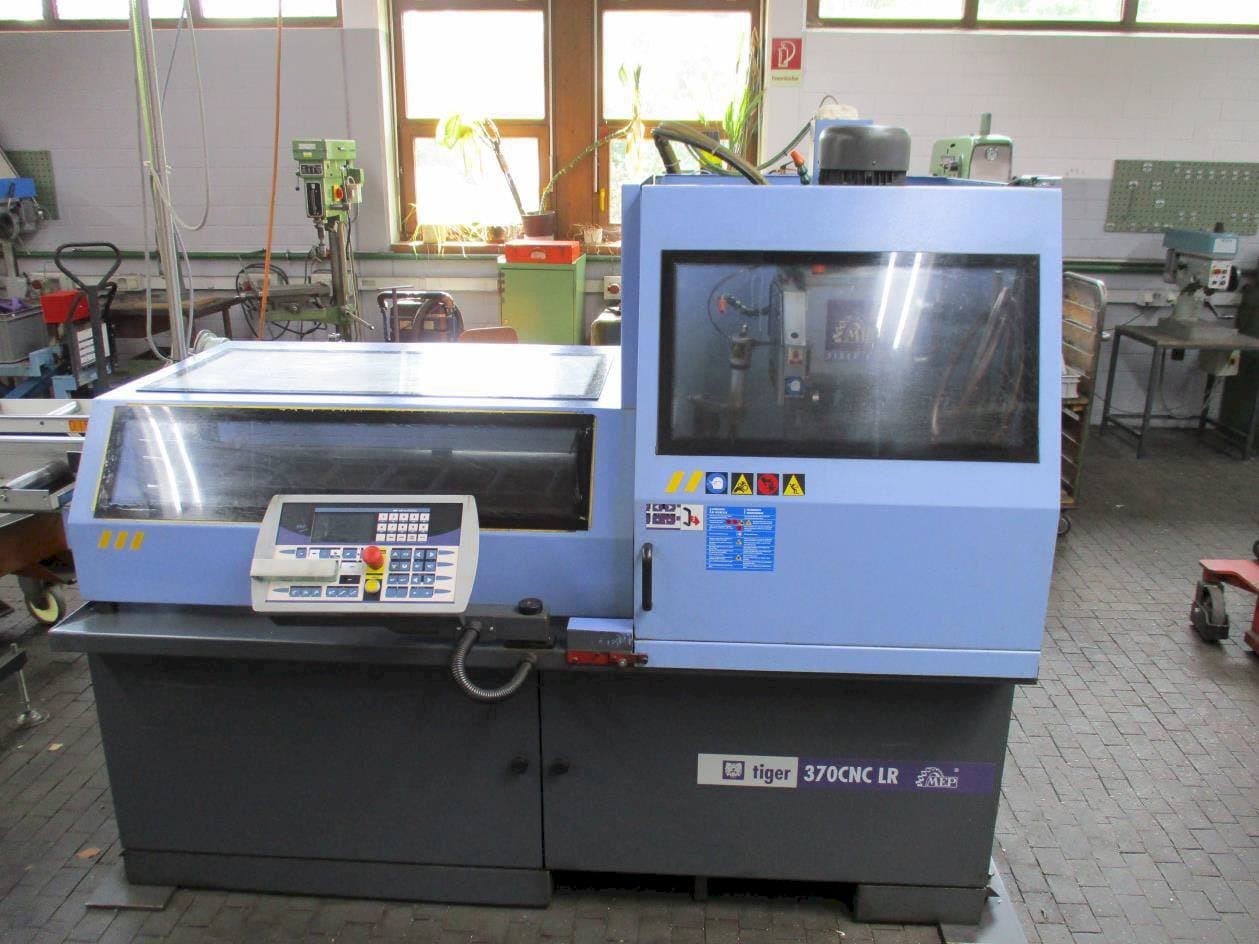

This MEP TIGER 370 CNC - LR Sawing machine was made in 2009 in Italy. It is equipped with a MEP CNC Evolution.
Overview
- brand: MEP
- year: 2009
- MODEL: TIGER 370 CNC - LR
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
Technical Information - MEP TIGER 370 CNC - LR
Control Unit
- Model: Evolution
Additional Information
Machine Benefits
Qualitative Machine Benefits
- 4 hss saw blades
- 4 meter roller conveyor
Technical Machine Benefits
- Speed range: infinitely variable 15 - 150 rpm
- Cutting range for 0º: 180 mm x 100 mm
- Cutting range for 45º: 125mm x 95mm
- Cutting range for 60º: 95mm x 85mm
- Residual pieces: 170 mm
- Saw blade: hss370x32x3
- Saw head guide: linear guideway with recirculating ball bearing sliding blocks
- Saw head feed: electromechanical cylinder
- Material feed: ball screw with stepper motor and pneumatic feeder vice
- Coolant supply: kss pump
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
