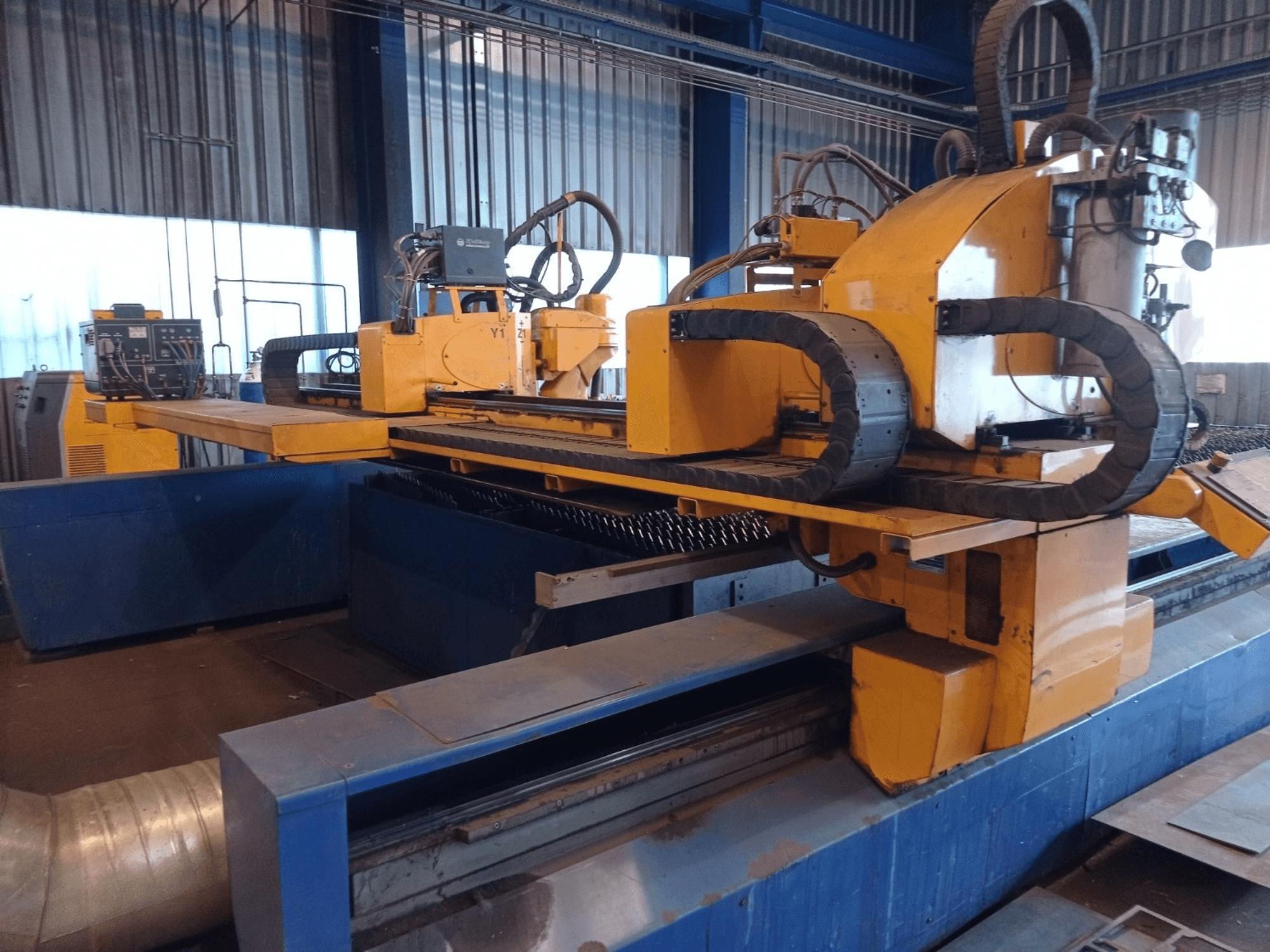

MicroStep - MG 6001.25PrGBHU-CUT-MIC-2011-00001

• Condition: Out of use for a while; gas console/gas mixer defective (Kjellberg type, last reported by service technician)

• Working area: 6000 × 2500 mm

• Cutting technologies: Plasma and/or oxyfuel (can be combined)

• Max material thickness:

  • Oxyfuel: up to 300 mm

  • Plasma: approx. 35–60 mm (depending on power source, e.g., Hypertherm HPR)

• Control: MicroStep iMSNC or CyberFab CNC control; compatible with mCAM and AsperWin

• Operating temperature: –10 °C to +45 °C

• Multi-torch capability: Up to 2–6 oxyfuel torches possible

• Machine structure: Dual-side driven gantry for accuracy and repeatability

• Remarks: Machine not in operation for a long time; gas console fault detected (Kjellberg type)

Additional equipment

• Plasma power source (e.g., Hypertherm HPR) – determines plasma cutting capacity

• Oxyfuel equipment: oxyfuel heads/torches (up to 2–6 possible)

• Plasma cutting head

• Automatic torch height control

• Software modules: mCAM (CAM for production prep), AsperWin (automatic nesting)

• Production system integration (PPS)

• Gas console/gas mixer (Kjellberg type; currently defective)
