MIKRON UCP 600

Photo Gallery

MIKRON - UCP 600IE-MIL-MIK-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

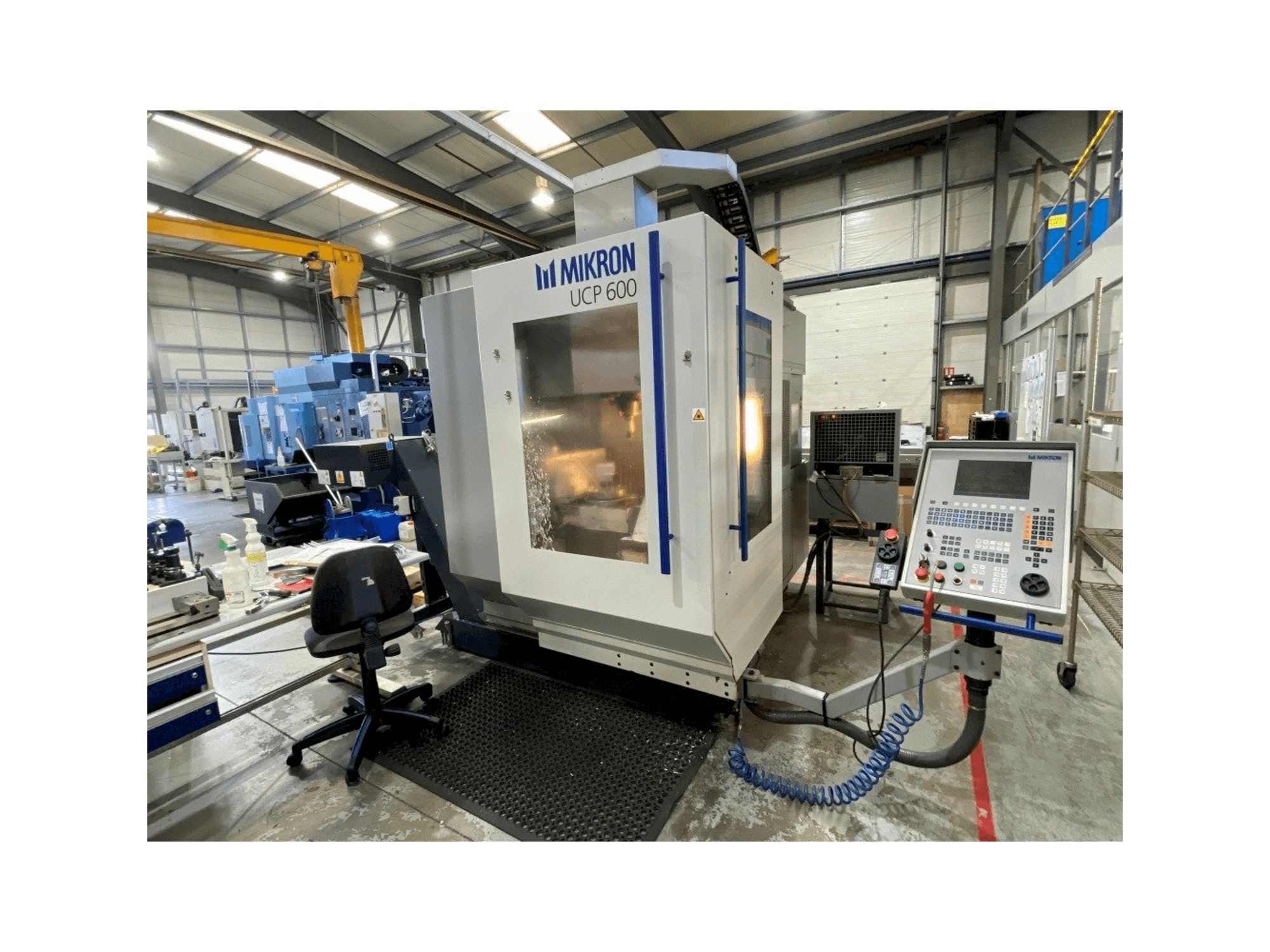

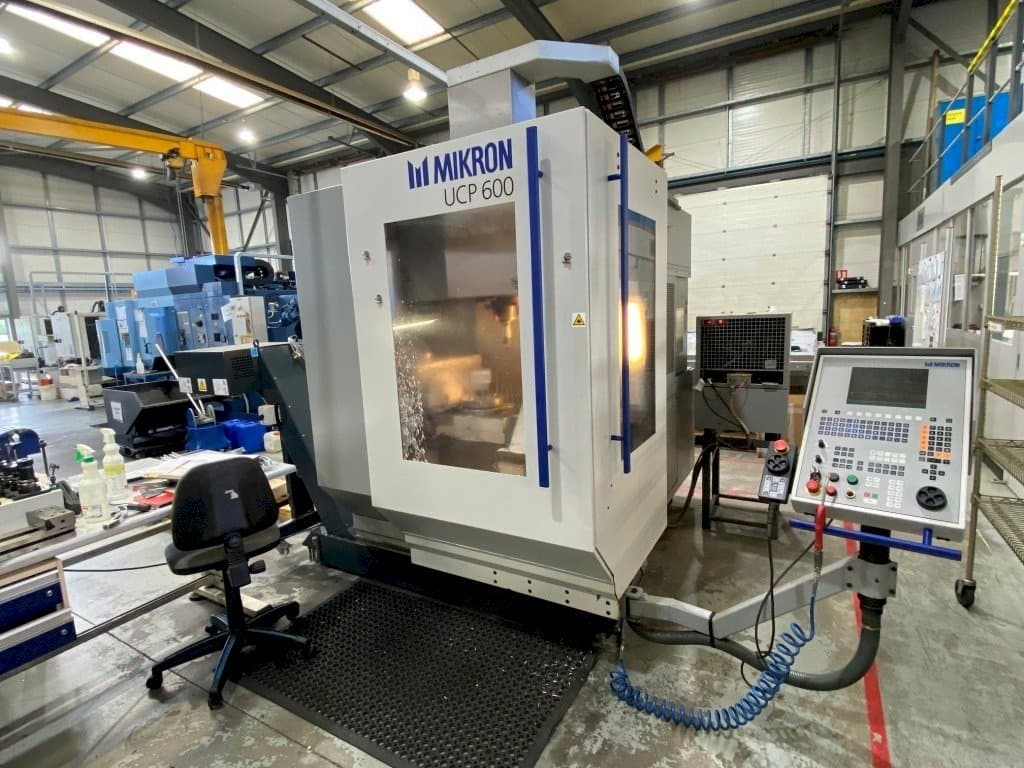

MIKRON UCP 600 Universal machining center

This MIKRON UCP 600 Universal machining center was made in Switzerland in 2000. It has been power on for 42130 hours, of which 10409 are spindle hours. It is equipped with a Heidenhain TNC 430 control unit. This 5 axis machine works with a spindle speed up to 12000 rpm. Includes 5 tool holders, a bader spindle chiller and face plates for Mikron PRC 3. It is in very good condition.

Overview

brand: MIKRON
year: 2000
MODEL: UCP 600
production hours: 42130
application type: Milling
Location: Ireland
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP 600

General Data

Measurements width: 2800 mm
Measurements depth: 2200 mm
Measurements height: 2400 mm
Machine weight: 6500 KG

Control Unit

Model: TNC 430
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 530 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm
C-AXIS Movement: 360 MM

Workpiece

Workpiece weight: 380 KG

Table

Outer length: 280 mm
Outer width: 280 mm

Tools

Slots in storage: 30
Max weight: 6 KG
Max tool diameter: 110 mm
Max tool length: 250 mm
Type of tool holder: NSK 50

Media

Main electronic connection: 3 x 400V / 50Hz
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 5 holders included
- Bader Spindle Chiller
- Mikron PRC 3 - 4th/5th Axis
- Face Plates for Mikron PRC 3
- MPG
- X, Y, Z, A, C Axes

Additional Information

Machine history

Material type: Mild steel
End product: Pump parts
Industries: Pump industry

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Small foot print 5 axis machine
- - High accuracy machine
Qualitative Machine Benefits:
- - Machine in very good condition
- - Vise not included with the machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
