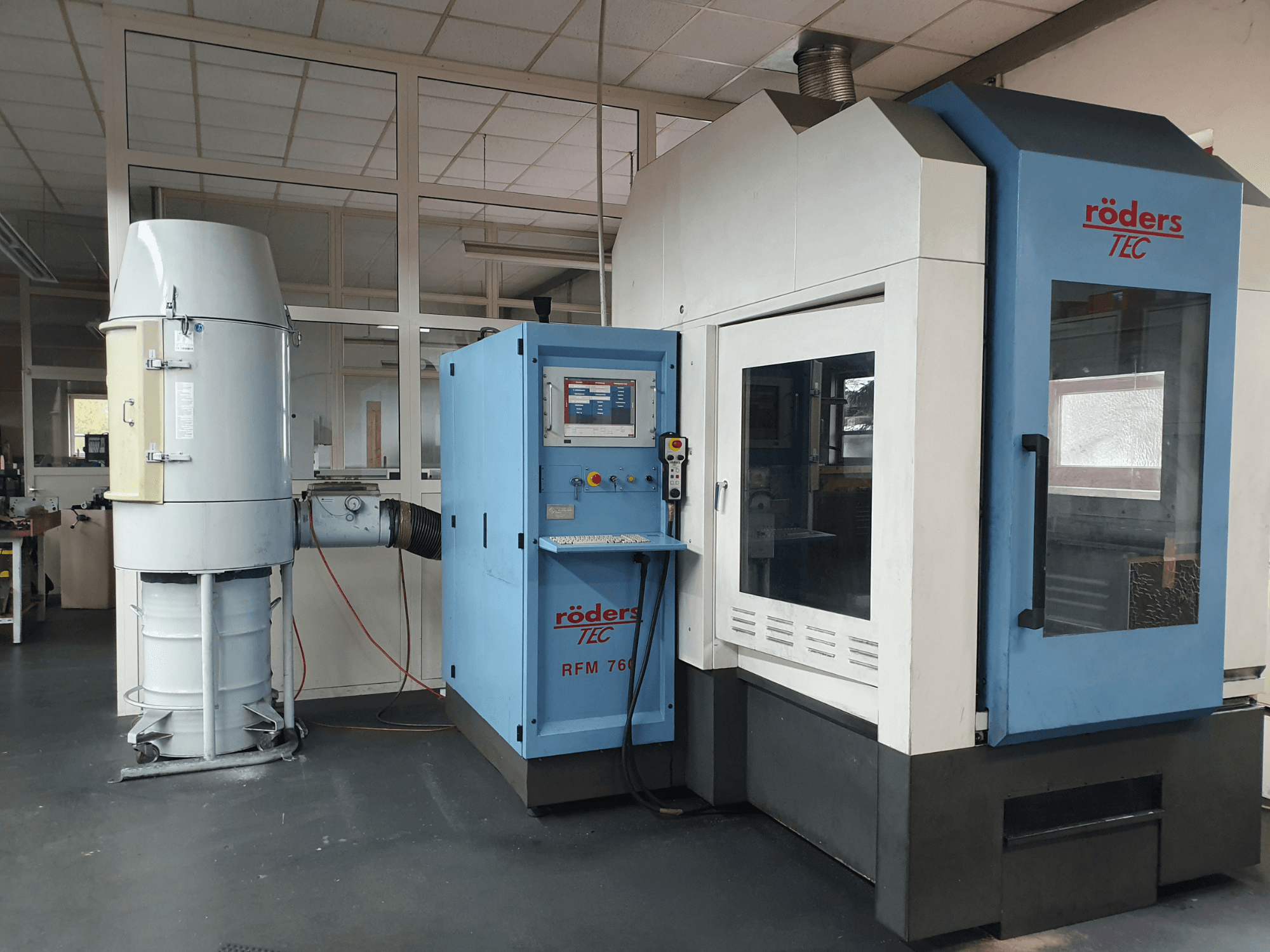

Röders RFM760-099 Vertical Machining Center

This Röders RFM760-099 Vertical Machining Center was manufactured in the year 2000. The machine has a spindle speed of 42000 rpm.

Overview

brand: RÖDERS
year: 2000
MODEL: RFM760-099
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - RÖDERS RFM760-099

Dimensions

Machine Depth: 2500 mm
Machine Weight: 6500 kg

Movement

Number of Axes: 3
X-axis Travel: 760 mm
Y-axis Travel: 550 mm
Z-axis Travel: 300 mm

Technical Specification

Spindle Speed: 42000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Tool shrink unit
Dust extraction (graphite)
Tool holders

Software: RMS6V3.15 (211)
Working Area: 760 x 550 x 300 mm
Table Size: 860 x 550 mm
Spindle: Fischer MFW-1230/42 spindle (42,000 rpm, new as of December 2022)
Spindle Taper/Mount: ISO HSK E40
Tool Changer: 25-position tool changer
Laser Tool Measurement: Integrated for length and diameter
Workpiece Measurement: IR 3D probe
Extraction System: Dust extraction (graphite)
Cooling System: Cooling unit and spray cooling for tool/workpiece
Shrink-Fitter: Röders tool shrink-fitter
Chuck: Fixed chuck (new in 2022)
Included Accessories: Milling chuck, consumables, tool holders, and manual service tools
Machine Status: In working order; EROWA clamping system and HD vise have been removed and are excluded from the deal

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
