MIKRON - VCP 800PL-MIL-MIK-2003-00002

Name: MIKRON VCP 800
Brand: MIKRON
SKU: PL-MIL-MIK-2003-00002
Price: 25000 EUR
Availability: InStock

25,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MIKRON VCP 800 For Sale | gindumac.com

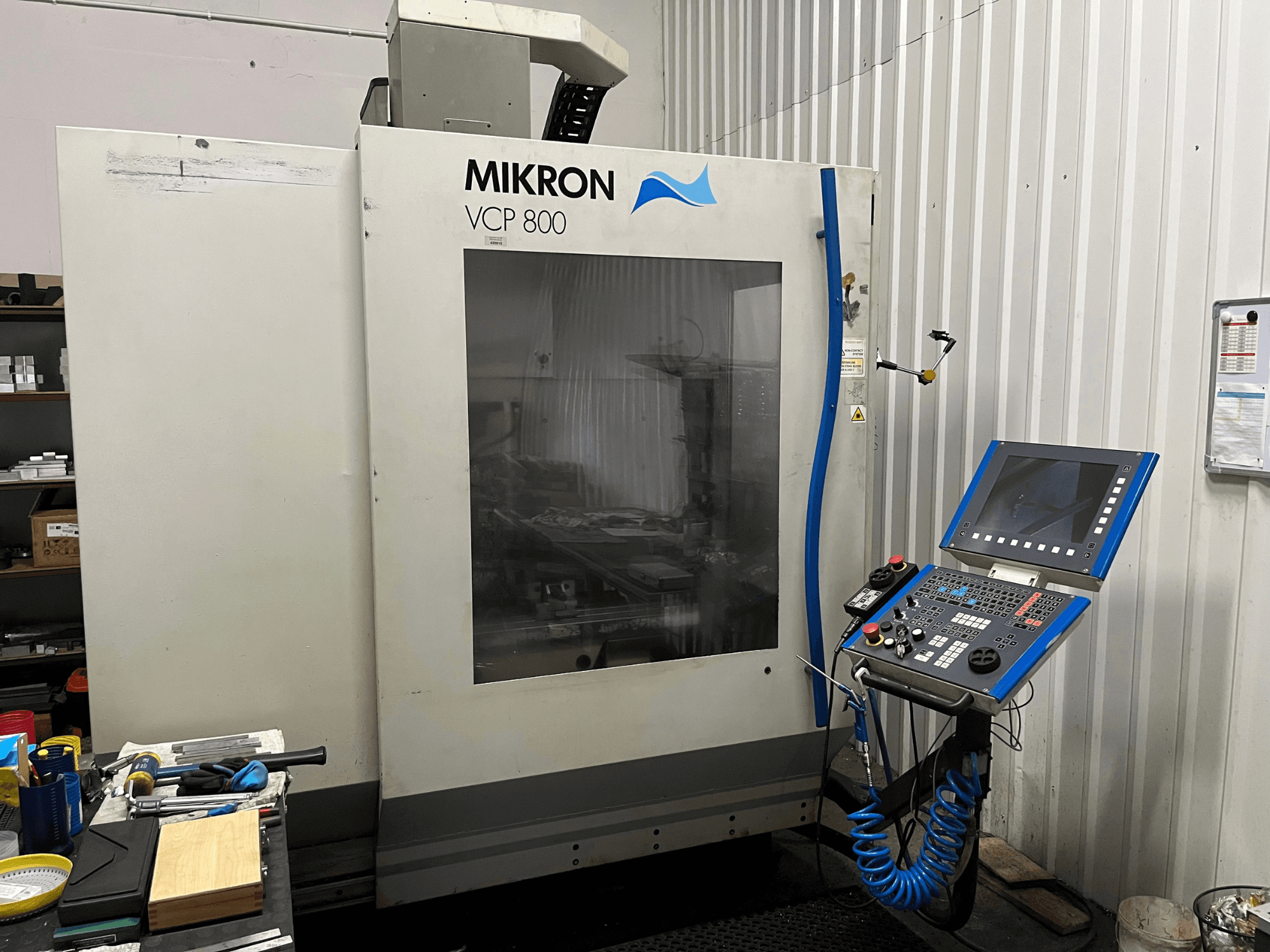

This 3-axis MIKRON VCP 800 was manufactured in 2003. It features an X-axis travel of 800 mm, Y-axis travel of 450 mm, and Z-axis travel of 450 mm. The machine is equipped with a Heidenhain iTNC 530 control and a high-speed spindle capable of reaching up to 20,000 rpm. If you are looking to get high-quality machining capabilities, consider the MIKRON VCP 800 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: MIKRON
year: 2003
MODEL: VCP 800
production hours: 25794
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 800

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 6500 kg

Movement

Number of Axes: 3
X-axis Travel: 800 mm
Y-axis Travel: 450 mm
Z-axis Travel: 450 mm

Technical Specification

Spindle Power: 12 kW
Spindle Speed: 20000 RPM

Additional Information

Spindle:
- Type: Step Tec HVCS 212-S-12-1.7/20-2F-HSK-A63
- Tool holder: HSK-A63 (DIN 69893)
- Torque: 63 Nm
- Cooling: Water-cooled
- Protection rating: IP55
- Insulation class: F
Table:
- Dimensions: 1,050 × 590 mm
- Maximum table load: to be confirmed
Feed/rapids:
- Maximum feed rate: 15 m/min
- Rapid traverse rate: 22 m/min
Tool magazine:
- Capacity: to be confirmed
- Max tool diameter (adjacent pockets occupied): 90 mm
- Max tool length: to be confirmed
- Max tool weight: to be confirmed
Electrical:
- Supply: 3 × 400 V + PE, 50 Hz
- Control voltage: 24 V DC
- Fuse protection: 35 A
- Total connected load: 16 kW
- Power factor: cos φ 0.9
Sound pressure level: 75 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
