➤ Used MIKRON VCP 1350 For Sale | gindumac.com

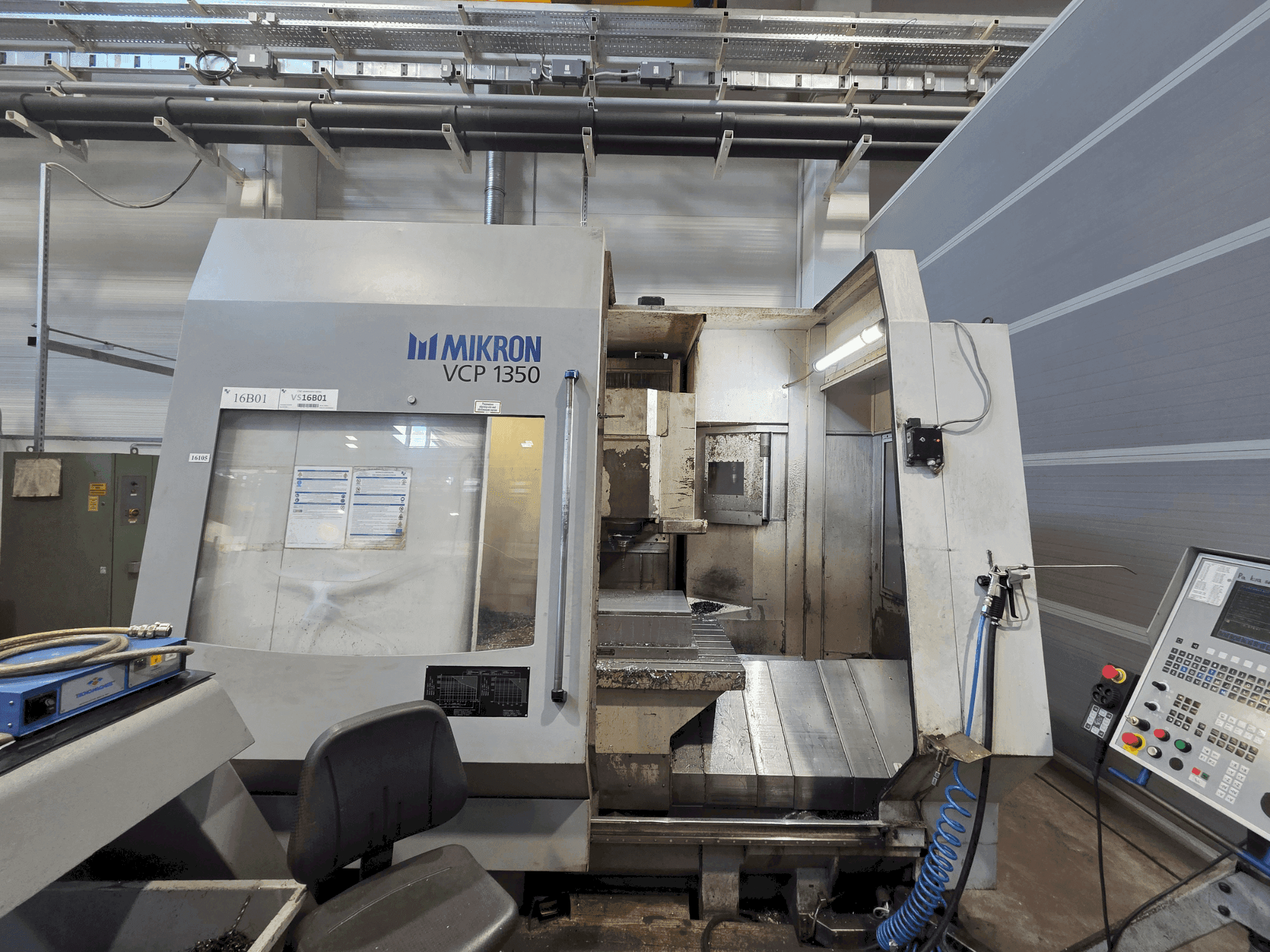

This 3-axis MIKRON VCP 1350 was manufactured in 2000. It features a Heidenhain TNC 426 M control system, X-axis travel of 1350 mm, Y-axis of 900 mm, and Z-axis of 750 mm. The machine supports a maximum workpiece weight of 1,800 kg and includes a high-speed Step-Tec HSK-A63 spindle capable of 24,000 rpm. Ideal for precision machining with a tool magazine capacity of 46 tools. Contact us for more information about this machine.

Overview

brand: MIKRON
year: 2000
MODEL: VCP 1350
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 1350

General Data

Measurements width: 3680 mm
Measurements depth: 4130 mm
Measurements height: 3150 mm
Machine weight: 10100 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 426 M

Main drive

Spindle speed range: 24000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1350 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 900 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 750 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 1800 kg

Table

Number of tslots: 10

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: HSK-A63

Additional Equipment

- High-speed precision machining capability

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Equipped with a automatic spindle orientation and high-speed spindle (24000 rpm)
- - Coolant system pressure: 30 bar (standard) / 40 bar (optional high pressure)
- - Tank capacity: 180 l (optional 600 l)
- - Direct drive ac motor
- - Measuring system: direct linear scales on all axes
- - Clamping surface: 1425 x 860 mm
- - Magazine capacity: 46 tools (standard), 92 tools (optional)
- - Max. Magazine load: 200 kg
- - Tool-to-tool change time: approx. 12 sec
- - Available for inspection

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
