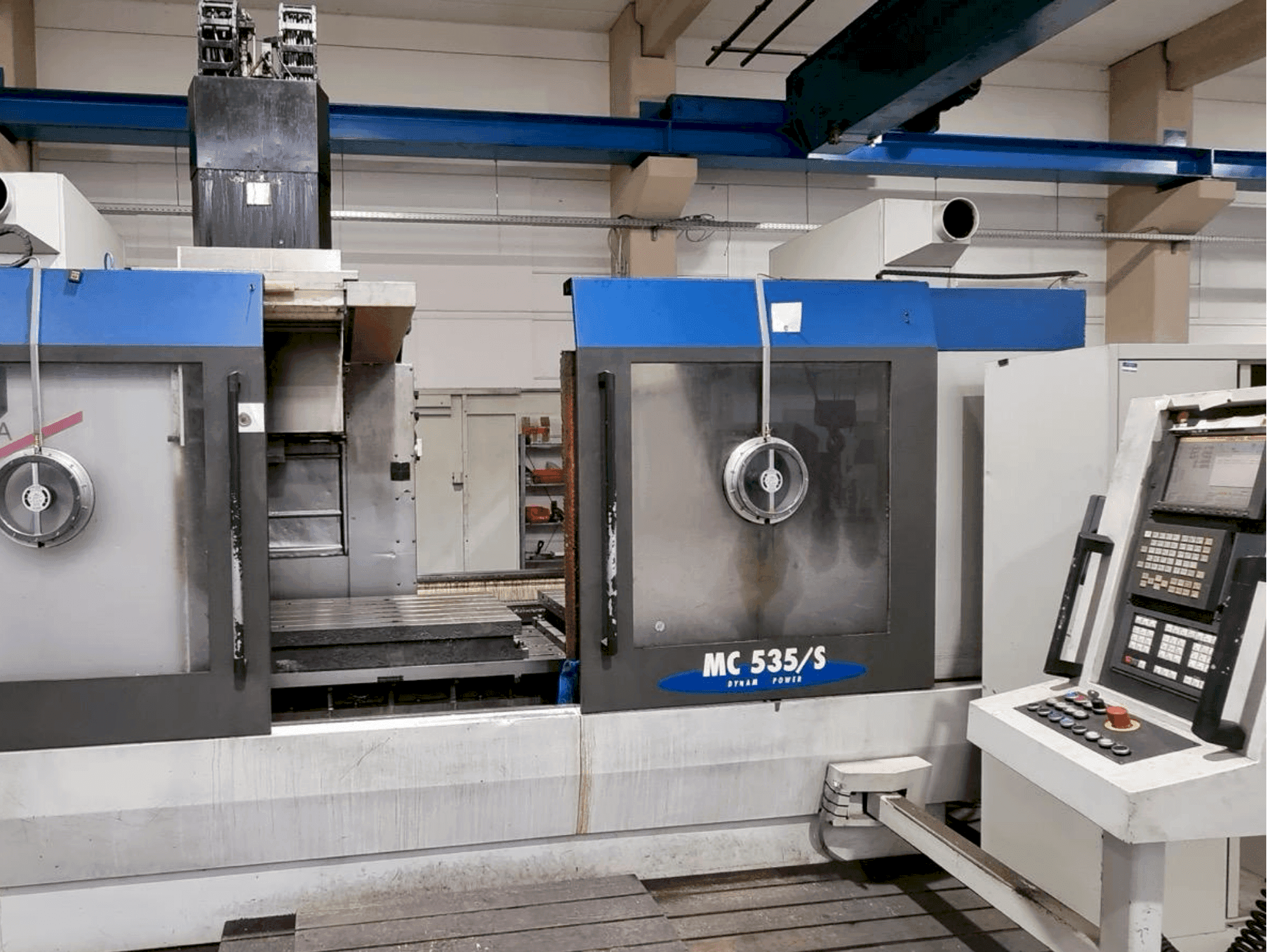

This Stama MC 535 Vertical Machining center was manufactured in the year 2001 in Germany. It is equipped with 4 t-slots and operates with 3-axis. The max. workpiece weight is 3000 kg and the max. spindle speed 8000 rpm. The machine is in top condition and fully operational with currently 18,485 operating hours. It will be sold because of replacement with a new and larger one. For the moment it is not connected but upon agreement, on-site testing is possible.
Overview
- brand: STAMA
- year: 2001
- MODEL: MC 535
- production hours: 18485
- application type: Milling
- Location: Slovenia
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: FANUC
Technical Information - STAMA MC 535
General Data
- Measurements width: 4200 mm
- Measurements depth: 7600 mm
- Measurements height: 3700 mm
- Machine weight: 12000 kg
Control Unit
- Brand: FANUC
- Model: 18 MBi
Main drive
- Spindle speed range: 8000 rpm 1/MIN
Movement
- X-AXIS Movement: 2200 MM
- X-AXIS Rapid traverse: 10000 mm/min
- Y-AXIS Movement: 500 MM
- Y-AXIS Rapid traverse: 10000 mm/min
- Z-AXIS Movement: 510 MM
- Z-AXIS Rapid traverse: 10000 mm/min
Workpiece
- Workpiece weight: 3000 KG
Table
- Outer length: 3100 mm
- Outer width: 520 mm
- TSlots size: 18H12
- Number of tslots: 4
Additional Information
- Technical Machine Benefits:
- - Slot spacing: 125/150
- - Table spindle nose max : 760 mm
- - Table height above floor : 858 mm
- - Swivel capability: no
- - Table spindle nose min : 250 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
