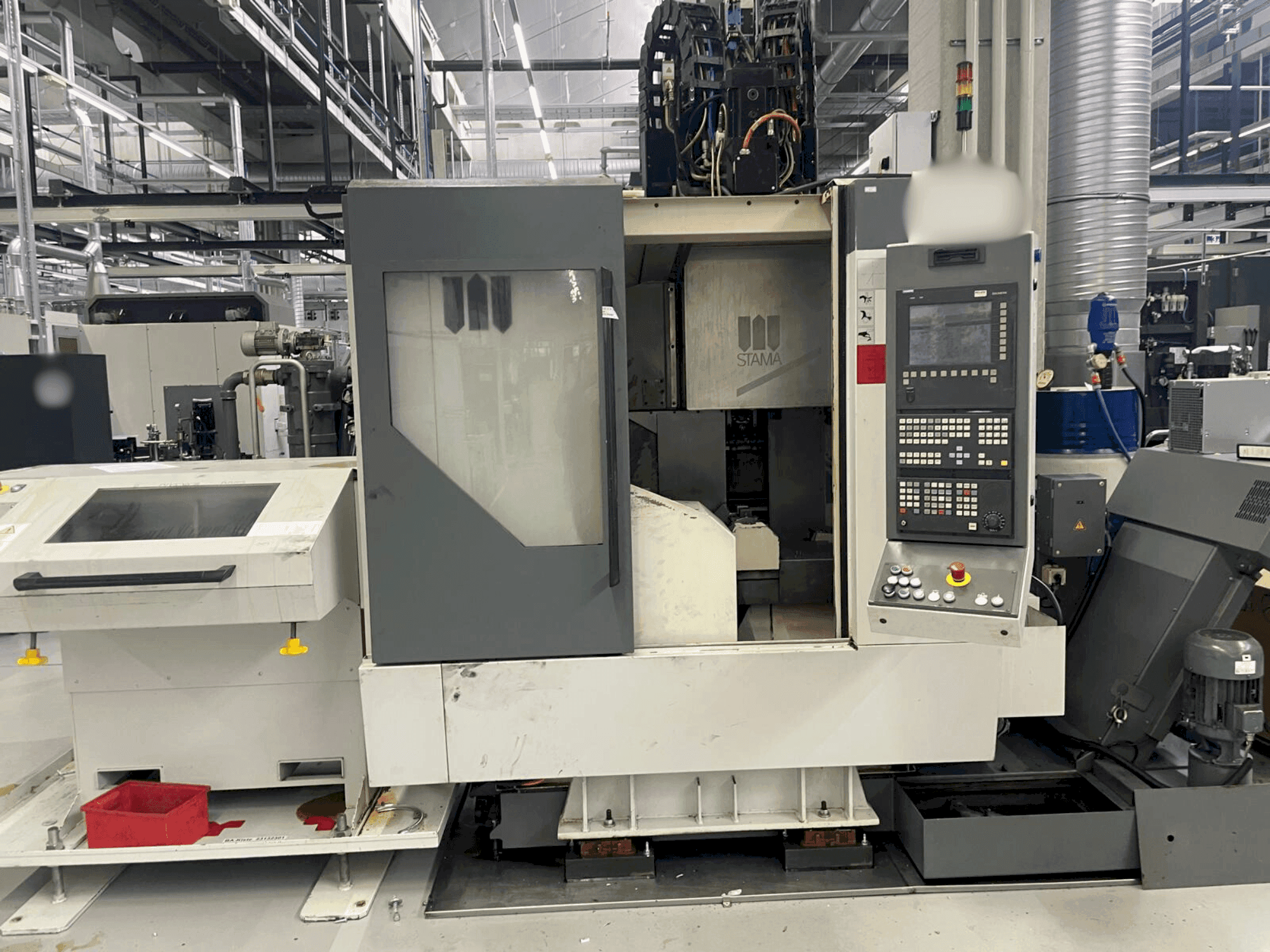

Front view of STAMA MC 526/M  machine

STAMA - MC 526/MSI-MIL-STA-2005-00001

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 7-axis STAMA MC 526/M was manufactured in 2005, featuring a Siemens Sinumerik 840 D control system. It includes a milling spindle with a speed of 10,500 rpm and a turning spindle speed of 5,000 rpm. The machine offers a tool magazine with 132 tools capacity and rapid traverse rates up to 60 m/min. Ideal for complex milling and turning tasks. If you are looking to get high-quality milling and turning capabilities consider the STAMA MC 526/M machine we have for sale. Contact us for more information.

Overview

  • brand: STAMA
  • year: 2005
  • MODEL: MC 526/M
  • application type: Milling
  • Location: Austria
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - STAMA MC 526/M

General Data

  • Measurements width: 7400 mm
  • Measurements depth: 5000 mm
  • Measurements height: 3300 mm
  • Machine weight: 6600 kg

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 840 D

Movement

  • X-AXIS Movement: 520 mm
  • X-AXIS Working Feed: 1 – 10000 mm/min
  • X-AXIS Feed Force: 4000 N
  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Working Feed: 1 – 10000 mm/min
  • Y-AXIS Feed Force: 4000 N
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Movement: 360 mm
  • Z-AXIS Working Feed: 1 – 10000 mm/min
  • Z-AXIS Feed Force: 8000 N
  • Z-AXIS Rapid traverse: 60 m/min

Tools

  • Slots in storage: 42
  • Max tool diameter: 125 mm
  • Max tool length: 250 mm

Clamping unit

  • Clamping force: 8000 N KN

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Bar Loader Magazine IRCO RBK 8008
    • - Short Bar Loader
    • - Coolant System with Belt Filter for IKZ Internal Tool Cooling
    • - Hornbeam Feed
    • - Various Tool Holders
    • - Machine Manuals

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - B axis: turning spindle
        • - Swivel/rotation heads: -30° to +90°
        • - Total power consumption: 46 kva
        • - Total power requirement: 36 kw
        • - Max milling power: 350 cm³
        • - Max boring diameter: 36 mm
        • - Max thread diameter: m30

      Extra information

      • - 2 Units Available. Machines still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
