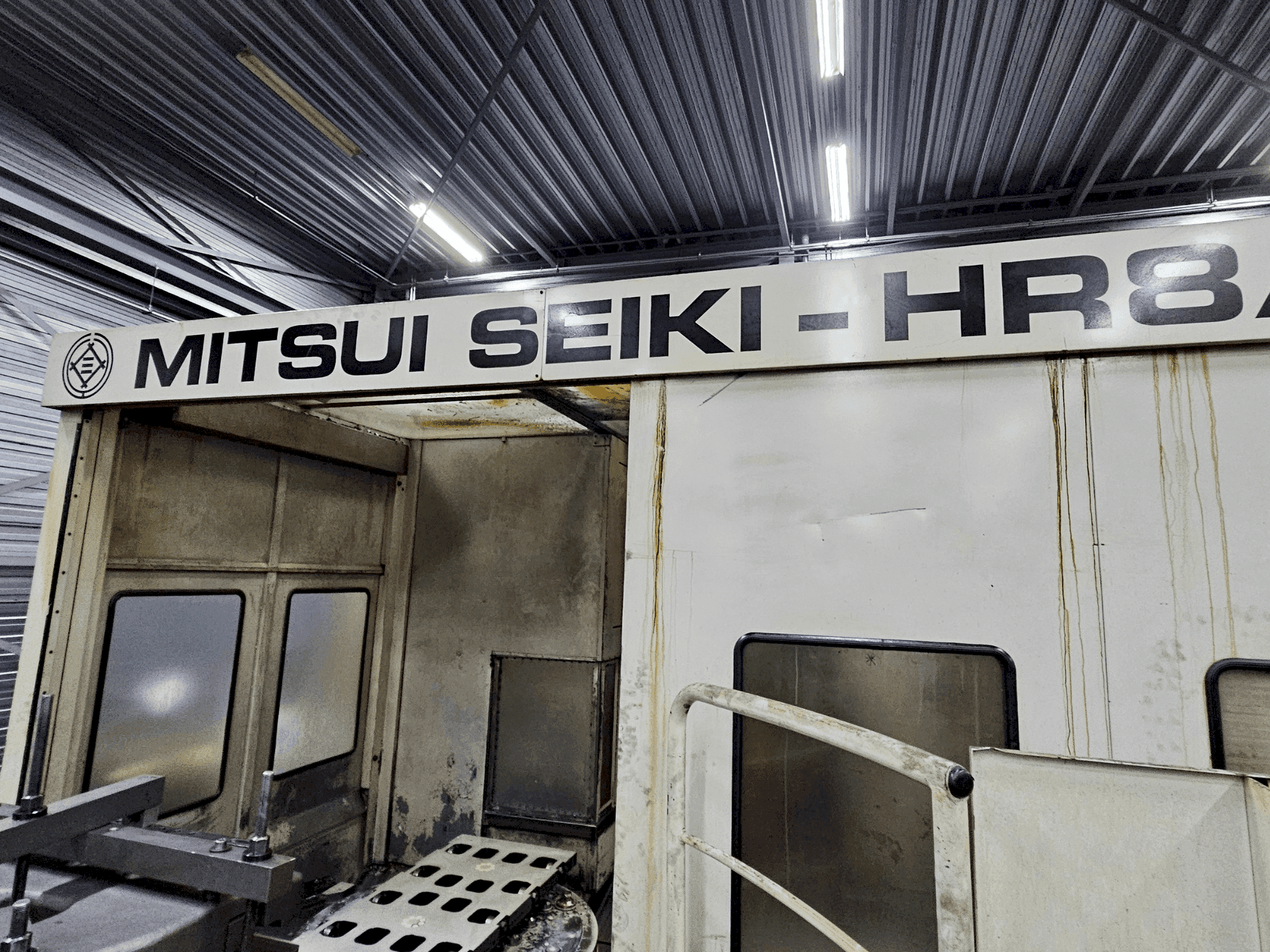

This 4-axis Mitsui Seiki HR8A horizontal machining centre was manufactured in 1989. It features a Fanuc 11MF control, a 3-pallet system with pallets measuring 1300 x 1300 mm, and a maximum pallet load of 4000 kg. The spindle supports ISO 50 taper, achieves speeds up to 3150 rpm, and delivers 1980 Nm of torque. Additional features include a 270-position tool magazine and a chip conveyor. If you are looking to get high-quality machining capabilities, consider the Mitsui Seiki HR8A machine we have for sale. Contact us for more information.
Overview
- brand: Mitsui Seiki
- year: 1989
- MODEL: HR8A
- application type: Milling
- Location: Netherlands
- machine type: Horizontal Machining Centre
- availability: Immediately
- control unit brand: FANUC
Technical Information - Mitsui Seiki HR8A
General Data
- Measurements width: 9200 mm
- Measurements depth: 12000 mm
- Measurements height: 5500 mm
- Machine weight: 45000 kg
Control Unit
- Brand: FANUC
- Model: 11MF
Main drive
- Spindle speed range: 8 – 3150 rpm 1/MIN
- Spindle motor power: 30/35 kW
- Tool taper: ISO 50
- Number of axis: 4
Movement
- X-AXIS Movement: 1800 mm
- X-AXIS Feed Force: 4000 mm/min
- X-AXIS Rapid traverse: 7000 mm/min
- Y-AXIS Movement: 1500 mm
- Y-AXIS Feed Force: 4000 mm/min
- Y-AXIS Rapid traverse: 10000 mm/min
- Z-AXIS Movement: 1200 mm
- Z-AXIS Feed Force: 4000 mm/min
- Z-AXIS Rapid traverse: 10000 mm/min
- W-Axis Movement: 500 mm
Tools
- Max weight: 30 kg
- Max tool diameter: 125/250 mm
- Max tool length: 470 mm
Media
- Chip conveyor: Yes
Additional Equipment
- - Equipped with Linear Scale Feedback System X,Y,Z
- - Renishaw Probing OMP 60
- - Total 5-pallets
- - Tool Magazine Positions: 270
Additional Information
- Technical Machine Benefits:
- - Spindle torque: 1980 nm
- - Spindle bearing diameter: 120 mm
- - Table indexing b: 0. 001 degrees
- - Number of pallets in system: 3-pallets
- - Pallet size: 1300 x 1300 mm
- - Pallet load: 4000 kg
- - Tool-to-tool time: 15 sec.
- - Chip-to-chip time: 25 sec.
- - Coolant through the spindle: 20 bar
- Qualitative Machine Benefits:
- - Installed new in 1999
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
