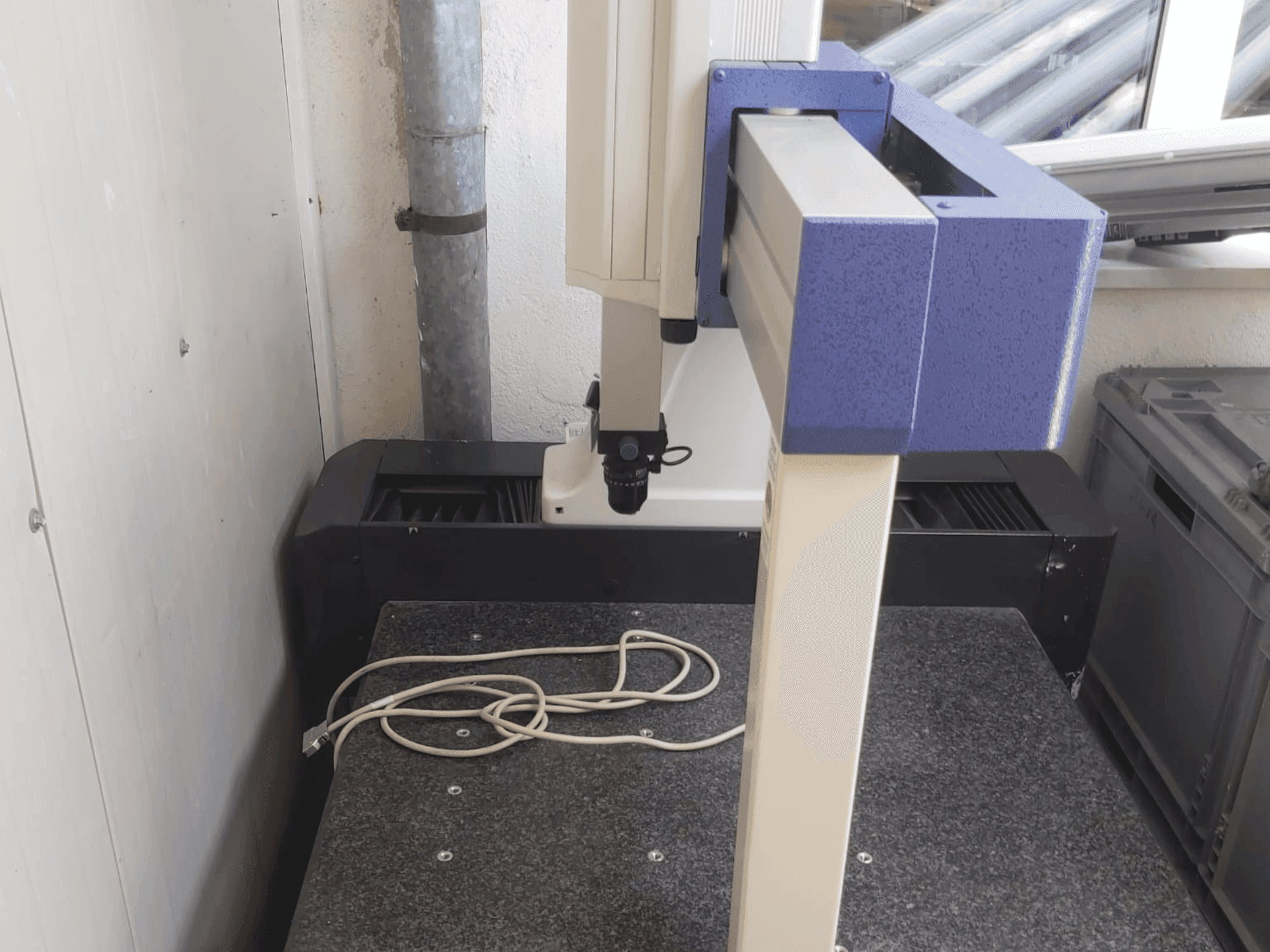

Front view of Mitutoyo Crysta-Plus M443 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mitutoyo Crysta-Plus M443

Photo Gallery

Mitutoyo - Crysta-Plus M443RO-MEA-MIT-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mitutoyo Crysta-Plus M443 For Sale | gindumac.com

This Mitutoyo Crysta-Plus M443 was manufactured in 2015. It features a measuring range of 400 mm in both X and Y axes, and 300 mm in the Z axis. The granite measuring table ensures stability, and air bearings on all axes provide smooth movement. If you are looking to get high quality measuring capabilities consider the Mitutoyo Crysta-Plus M443 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Mitutoyo
year: 2015
MODEL: Crysta-Plus M443
application type: Measuring
Location: Romania
machine type: Coordinate Measuring Machine (CMM)

Technical Information - Mitutoyo Crysta-Plus M443

Dimensions

Machine Depth: 1047 mm
Machine Height: 1967 mm
Machine Weight: 410 kg
Table Load: 180 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Workpiece height: 480 mm
No. Of m8 x 1. 25 threaded holes: 13
Machine accuracy e = (3. 0 + 4. 0l/1000) µm
Probe repeatability r = 4. 0 µm (tp20)
Environmental temperature 20 °c ±1 °c
Resolution (length measuring system) 0. 5 µm
Guidance air bearings on all axes
Measuring table material: granite
Measuring dimensions: 624 mm × 805 mm
Consumption/air pressure: ca. 50 l/min at 0. 35 mpa

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
