Miyano - ABX-51TH2SI-TUR-MIY-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Miyano ABX-51TH2 For sale | gindumac.com

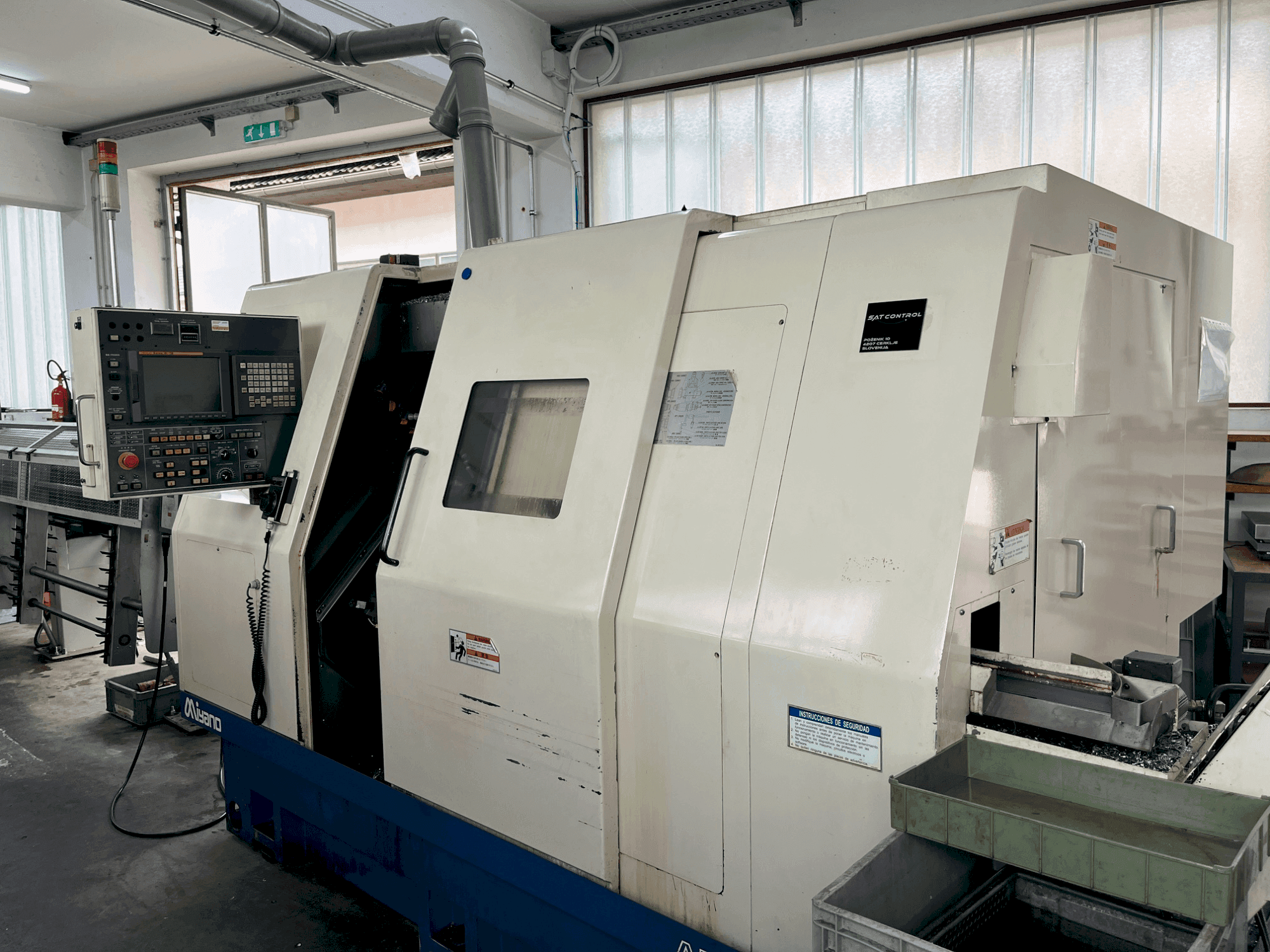

This 9-axis Miyano ABX-51TH2 was manufactured in 2009, featuring a FANUC Series 16i-TB control system. It offers a turning diameter of 125mm and supports a bar diameter of 51mm. Equipped with a chuck diameter of 150mm, the machine provides a spindle speed of 5000 rpm. It includes a main spindle motor of 15 kW and a sub spindle motor of 11 kW, with dual 12-station toolholders. Reach out for further details regarding this swiss type turning machine.
Overview
- brand: Miyano
- year: 2009
- MODEL: ABX-51TH2
- application type: Turning
- Location: Slovenia
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - Miyano ABX-51TH2
Control Unit
- Control Brand: FANUC
- Control Model: Series 16i-TB
Movement
- Number of Axes: 9
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Automatic bar feeder: LNS SPRINT 552-565 (2009)
Machine Benefits
Qualitative Machine Benefits
- High precision with fanuc control, increased versatility and productivity with sub-spindle and multiple tool stations
Technical Machine Benefits
- Spindle motor power: main spindle 15 kw, sub spindle 11 kw
- X-axis: x-1, x-2, x-3 axis travels 190 mm each
- Y-axis: y-1, y-3 axis travels +/- 40 mm
- Z-axis: z-1 axis 257 mm, z-2 axis 500 mm, z-3 axis 650mm
- High spindle speed, multiple axes for complex operations, powerful spindle motors
Extra Information
Turning diameter: 125 mm Chuck diameter: 150 mm Bar pitch: 52 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
