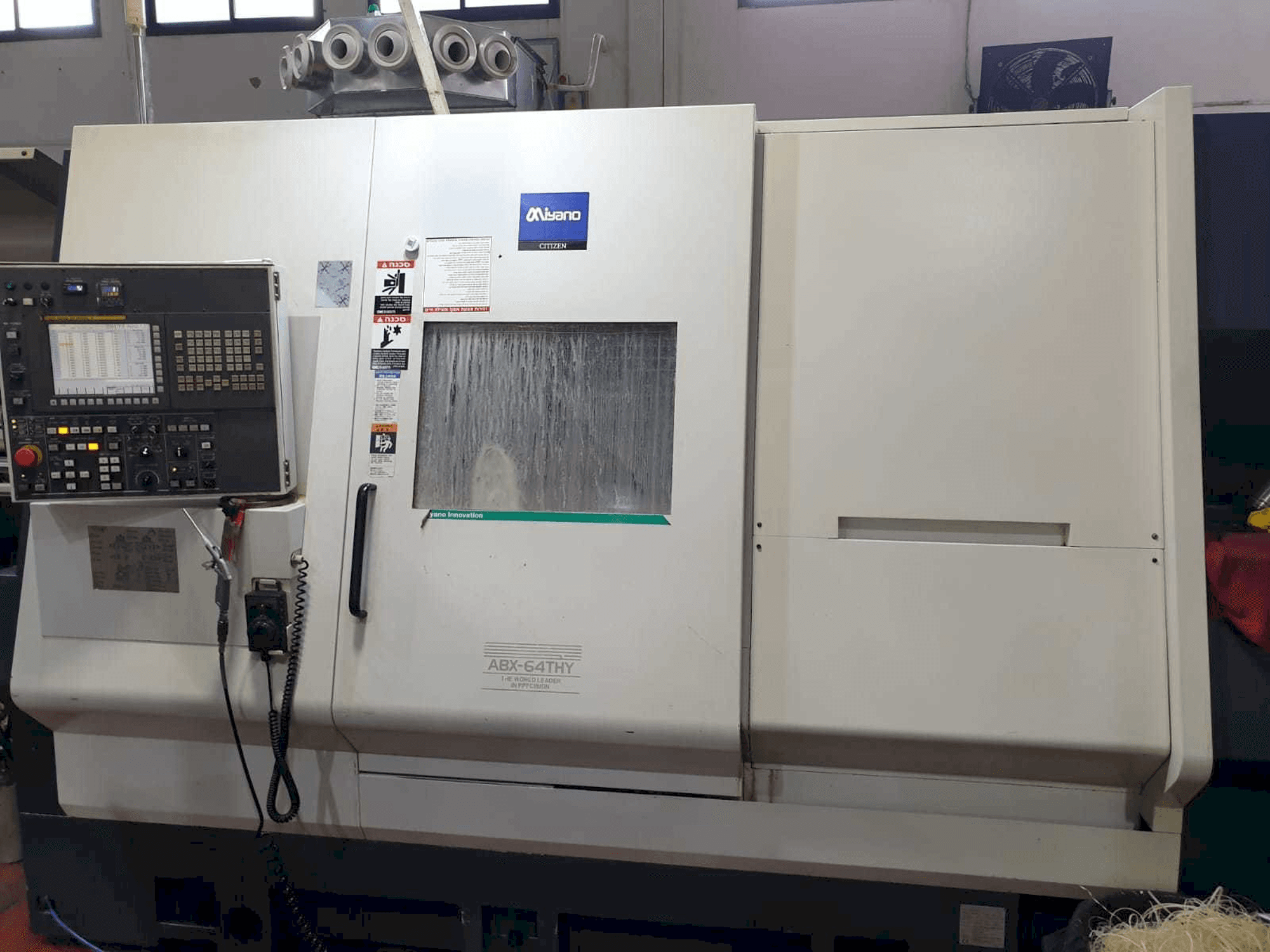

Miyano ABX-64THY

Photo Gallery

Miyano - ABX-64THYIL-TUR-MIY-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MIYANO ABX-64THY Lathe

This MIYANO ABX-64THY Lathe Machine was manufactured in 2011. This machine has a total of 47753 power on hours, of which 13434 are cutting hours. It operates through a Fanuc 31i-TA control unit. It has a spindle speed up to 5000 rpm. The machine includes 3 HD turret.

Overview

brand: Miyano
year: 2011
MODEL: ABX-64THY
production hours: 47753
application type: Turning
Location: Israel
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Miyano ABX-64THY

Control Unit

Control Brand: FANUC
Control Model: 31i-TA

Dimensions

Machine Weight: 11340 kg

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Hydraulic rotary hollow cylinder
Left spindle: 15/11kw cont. /30 min
Right spindle: 7. 5/5. 5kw cont. /30 min
Upper turret hd1/hd3 & lower turret hd2 12
Main & sub spindle positioning: "c" axis
Tool stations: upper hd1/upper hd3 12 and lower hd1 12
Hd1-upper turret
Revolving tool drive unit for upper & lower turrets (hd1, hd2 & hd3)

Technical Machine Benefits

Hd1-upper turret: x1-axis 190mm, z1-axis 257mm, y1-axis +/- 40mm
Hd2-lower turret: x2-axis 190mm, z2-axis 500mm
Hd3-upper turret: x3-axis 190mm, y3-axis +/- 40mm, z3-axis 650mm
Collet chuck for left: spindle (collets not includ) din 185e
Collet chuck for right spindle (collets not includ) din 177e
Bar feed interface
Max. Power chuck size (sub spindle) 152 mm
Max. Power chuck size (main spindle) 152 mm
Standard turning length 118mm
Max. Bar diameter (main spindle/sub spindle) 64mm/51mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
