MORI SEIKI - MV 40B/40DE-MIL-MOR-1995-00001

Name: MORI SEIKI MV 40B/40
Brand: MORI SEIKI
SKU: DE-MIL-MOR-1995-00001
Price: 15000 EUR
Availability: InStock

15,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

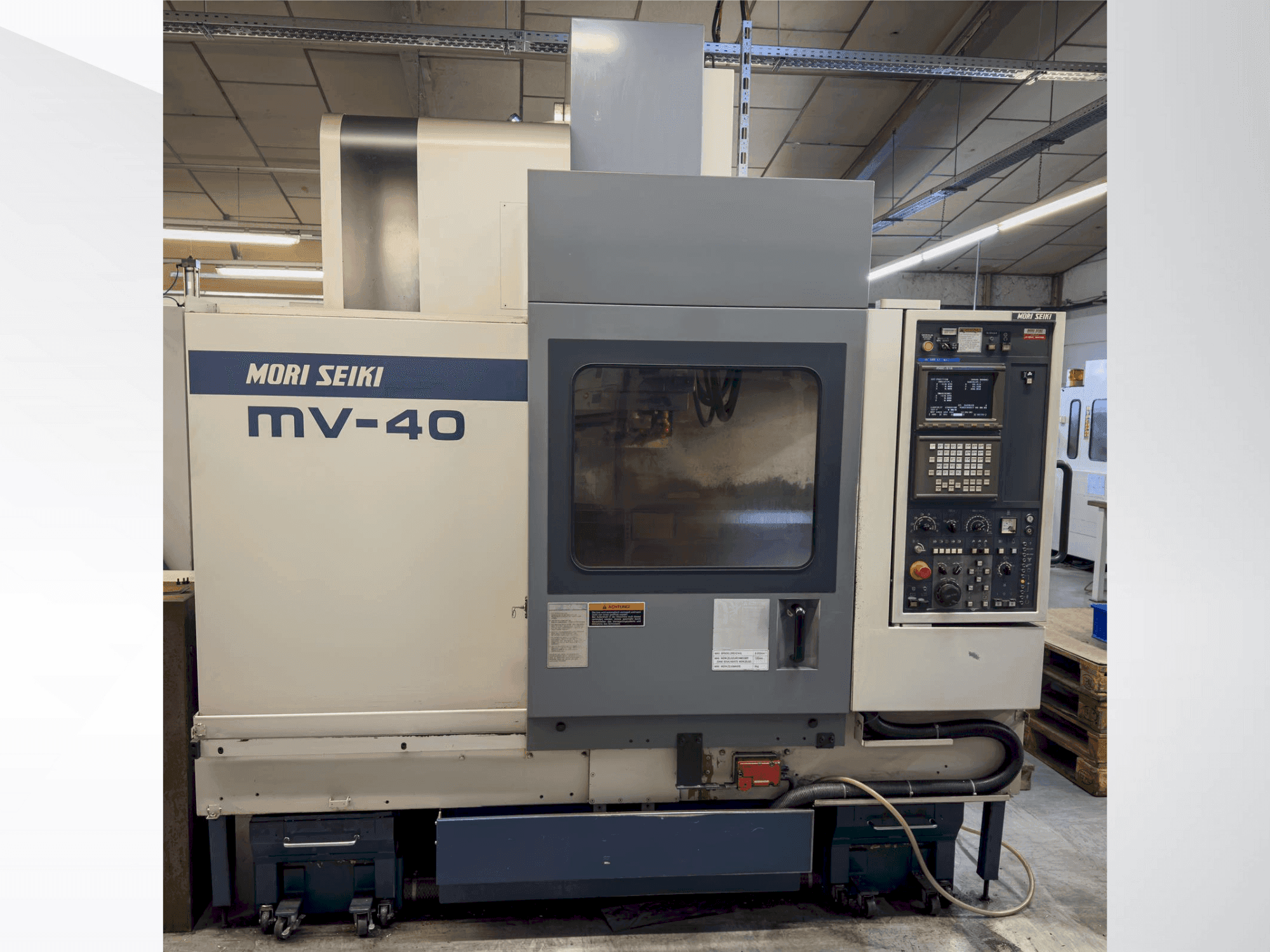

➤ Used MORI SEIKI MV 40B/40 For Sale | gindumac.com

This 3-axis MORI SEIKI MV 40B/40 vertical machining centre was manufactured in 1995. Consider the opportunity to buy this MORI SEIKI MV 40B/40 vertical machining centre. Contact us for more information.

Overview

brand: MORI SEIKI
year: 1995
MODEL: MV 40B/40
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - MORI SEIKI MV 40B/40

General Data

Measurements width: 2576 MM
Measurements depth: 2583 MM
Measurements height: 2770 MM
Machine weight: 6300 KG

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 47 A
Tool taper: BT40

Movement

X-AXIS Movement: 800 mm
X-AXIS Feed Force: 1-5000 mm/min
X-AXIS Rapid traverse: 20000 mm/min
Y-AXIS Movement: 410 mm
Y-AXIS Feed Force: 1-5000 mm/min
Y-AXIS Rapid traverse: 20000 mm/min
Z-AXIS Movement: 510 mm
Z-AXIS Feed Force: 1-5000 mm/min
Z-AXIS Rapid traverse: 15000 mm/min

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1100 mm
Outer width: 450 mm

Tools

Slots in storage: 20
Max weight: 8 kg
Max tool diameter: 80<125> mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Feed motor: x, y: 0. 9 kw, z: 2. 8 kw
Power supply: 19. 6 33. 7 kva
Air pressure connection: 0. 5 mpa, l/min

Technical Machine Benefits

Frequency: 50 hz
Control unit: msc-516
Fine feed rate: 0-1260 mm/min in 15 steps
Table form: 18 mm, 4 t-slots
Tool shank type: mas bt-40
Pull stud type: for 90° version of mori seiki [mas i-ii/iso]
Tool change time (tool-tool) : 1. 5 sec
Tool change time (chip-chip) : 5. 2 sec
Diameter of front bearing: 65 mm
Spindle motor (30 min/continuous): 7. 5/5. 5 kw

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
